Product Details:
|
| Product: | 0.96 Inch Dual Color OLED | Resolution: | 128x64 |
|---|---|---|---|
| Color: | Yellow+Blue (Dual Color) | Optics: | All Viewing Angles |
| Module Size: | 24.74*16.9*1.42 (mm) | Glass: | OLED |
| Controller: | SSD1315 | Operating Temp: | -40°C To +80°C |
| Pin Number: | 30 Pins | Interfaces: | 6800/8080 Parallel, 4-wire SPI, And I2C |
| Life Time: | 50,000 Hours | Brightness: | 180 Nits |
| Contrast Ratio: | 20,000 : 1 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 30 Pin Oled Display,128x64 Dots Oled Display,Internal DC/DC Oled Display |
||
Description
SAEF released a LOW COST 0.96 inch Thin OLED Display SFOS096JY-7149AN model which is made of 128x64 pixels, diagonal size only 0.96 inch. The new version thin 0.96" OLED display is also built-in SSD1315 driver IC; it communicates via 6800/8080 8-bit parallel and I2C/SPI interface. Adopting thinner OLED panel is a new trend, for new projects, we recommend customers to choose the thinner SFOS096JY-7149AN for new design projects.SFOS096JY-7149AN module supports internal Charge Pump supply and external VCC supply.
Product Information
| Product: | 0.96" Inch Graphic OLED |
| Resolution: | 128x64 |
| Color: | Yellow+Blue (Dual Color) |
| Module Size: | 24.74*16.9*1.42 (mm) |
| Controller: | SSD1315 |
| Pin Number: | 30 Pins |
| Life Time: | 50,000 Hours |
| Contrast Ratio: | 20,000 : 1 |
| Optics: | All Viewing Angles |
| Glass: | OLED |
| Operating Temp: | -40°C To +80°C |
| Interfaces: | 6800/8080 Parallel, 4-wire SPI, And I2C |
| Brightness: | 180 Nits |
| Compliance: | REACH & RoHS Compliant |
0.96 Inch Thin OLED Display Dual Color Yellow+Blue SPI Interface Product Drawing
More Products
|
Display
|
Resolution
|
Driver IC
|
Panel size
|
AA Size
|
Interface
|
|
0.32inch
|
60x32
|
1315
|
9.96X6.26X1.2
|
7.06X3.82
|
I2C
|
|
0.42inch
|
72X40
|
1315
|
12x11x1.25
|
9.2X5.18
|
I2C/SPI
|
|
0.49inch
|
64x32
|
1315
|
14.5x11.6x1.2
|
11.18X5.58
|
I2C
|
|
0.5inch
|
48X88
|
1115
|
8.93×17.1×1.23
|
6.124×11.244
|
I2C
|
|
0.54inch
|
96x32
|
1115
|
18.52×7.04x1.23
|
12.46×4.14m
|
I2C
|
|
0.63inch
|
28x120
|
1312
|
21.54×6.62×1.22
|
15.58×3.62
|
I2C
|
|
0.66inch(1)
|
64X48
|
1306
|
18.46x18.1x1.25
|
13.42×10.06
|
Parallel /I2C/ SPI
|
|
0.66inch(2)
|
64X48
|
1305
|
16.42×16.9×1.25
|
13.42×10.06
|
Parallel /I2C/ SPI
|
|
0.69inch(1)
|
16x96
|
1306/1315
|
8x26.3×1.2
|
3.18x17.26
|
I2C
|
|
0.69inch(2)
|
16x96
|
1312
|
6.9X24×1.25
|
3.18x17.26
|
I2C
|
|
0.71inch
|
48X64
|
1306
|
13.9x22x1.2
|
10.54x14.7
|
I2C/SPI
|
|
0.77inch
|
64X128
|
1312
|
12.13x23.6x1.22
|
9.26x17.26
|
I2C/SPI
|
|
0.78inch
|
80X128
|
1317
|
12.13X23.6X1.22
|
9.68X17.26
|
I2C
|
|
0.83inch
|
96x39
|
1306
|
23.8X16.2X1.30
|
19.37X7.86
|
Parallel/I2C/SPI
|
|
0.84inch
|
16X96
|
1306
|
9.2X29.1X1.30
|
3.504X21.04
|
I2C
|
|
0.87inch
|
32X128
|
1312
|
8.58X28.54×1.2
|
5.58X22.38
|
I2C/SPI
|
|
0.91inch
|
32X128
|
1306
|
11.50X30.0X1.2
|
5.584X22.38
|
I2C/SPI
|
|
0.96inch(1)
|
128x64
|
1306/1315
|
26.7x19.26x1.45
|
21.744×11.2
|
Parallel/I2C/SPI
|
|
0.96inch(2)
|
128x64
|
1315
|
24.74×16.6×1.2
|
21.74×10.86
|
Parallel/I2C/SPI
|
|
0.96vertical
|
64X128
|
1312
|
14×28×1.22
|
10.86×21.74
|
I2C/SPI
|
|
0.96square
|
96x96
|
1317
|
20.5X23.8X1.2
|
17.26X17.26
|
I2C
|
|
1.04inch
|
128x32
|
1306
|
14.5x29.8x1.30
|
25.58x6.38
|
Parallel/I2C/SPI
|
|
1.1inch
|
64X128
|
1115
|
14×31.96×1.22
|
10.86×25.58
|
SPI
|
|
1.12inch
|
128X128
|
1107
|
27×30.1×1.25
|
20.14×20.14
|
Parallel/I2C/SPI
|
|
1.3inch
|
128X64
|
1306/1106
|
34.5x23.0x 1.4
|
29.42×14.7
|
Parallel/I2C/SPI
|
|
1.3vertical
|
64X128
|
1312
|
17.1×35.8×1.41
|
14.7×29.42
|
I2C/SPI
|
|
1.32inch
|
128X96
|
1327
|
32.6×28.3X1.60
|
26.86×20.14
|
SPI
|
|
1.4inch
|
160x160
|
1120
|
29x31.9x1.427
|
25x24.815
|
Parallel/I2C/SPI
|
|
1.5inch
|
128x128
|
1107
|
33.9X37.3X1.44
|
26.86X26.86
|
Parallel /I2C/ SPI
|
|
1.54inch
|
128X64
|
1309/1116
|
35.052×17.516
|
35.05×17.52
|
Parallel /I2C/ SPI
|
|
1.78inch
|
128x32
|
1312
|
42.218×10.538
|
42.22×10.54
|
Parallel /I2C/ SPI
|
|
1.92inch(1)
|
128x160
|
1108
|
32.9×46.55X1.22
|
28.91×39.34
|
Parallel /I2C/ SPI
|
|
1.92inch(2)
|
128x160
|
1127
|
34.5×48.8X1.4
|
28.91×39.34
|
Parallel /I2C/ SPI
|
|
2.05inch
|
128x32
|
1309
|
55.6x21.8x1.45
|
50.54x12.62
|
Parallel /I2C/ SPI
|
|
2.08inch
|
64x256
|
1122
|
19x60.5x1.6
|
12.78x51.18
|
Parallel /I2C/ SPI
|
|
2.23inch
|
128x32
|
1305/1309
|
62x24x2
|
55.02×13.1
|
Parallel /I2C/ SPI
|
|
2.42inch
|
128x64
|
1309
|
60.5×37×1.8
|
55.01×27.49
|
Parallel /I2C/ SPI
|
|
2.7inch(1)
|
128x64
|
1325/1322
|
73x41.86x2
|
61.41X30.69
|
Parallel/SPI
|
|
2.7inch(2)
|
128x64
|
1327
|
73x40.24x2
|
61.41X30.69
|
Parallel/SPI
|
|
2.7inch(3)
|
256x128
|
1322
|
73x41.86x2
|
61.41X30.69
|
Parallel/SPI
|
|
2.8inch
|
256x64
|
1322
|
84x25.8x2
|
69.10X17.26
|
Parallel/SPI
|
|
2.8vertical
|
64X256
|
1122
|
28.50X80.50X2
|
17.255x 69.1
|
Parallel /I2C/ SPI
|
|
3.12COF
|
256x64
|
1322
|
88x27.8x2
|
76.78X19.18
|
Parallel/SPI
|
|
3.12COG
|
256x64
|
1322
|
88x27.8x2
|
76.78X19.18
|
Parallel/SPI
|
|
3.12vertical
|
64X256
|
1362
|
25.8X86.9X2.0
|
19.18X76.78
|
Parallel /I2C/ SPI
|
|
3.4inch
|
240X128
|
1322
|
89.52X54.41X2
|
75.58X40.30
|
Parallel/SPI
|
|
5.5inch
|
256x64
|
1322
|
146x45x2
|
135.65X33.89
|
Parallel/SPI
|
|
0.6color
|
64X64
|
1357
|
15x17.5x1.2
|
10.73X10.73
|
SPI
|
|
0.95color
|
96X64
|
1331
|
25.7X22.2X1.2
|
20.14X13.42
|
Parallel/SPI
|
|
0.96color
|
64X128
|
1357
|
14.86X28.4X1.02
|
10.86X21.74
|
Parallel/SPI
|
|
1.12color
|
96X96
|
SEPS114A/1357
|
25.9x30.1x1.3
|
19.85X19.85
|
Parallel/SPI
|
|
1.27color
|
128X96
|
1351
|
33.7x26.9x1.6
|
27.708X19.28
|
Parallel/SPI
|
|
1.45color
|
160X128
|
SEPS525/1333
|
35.8x30.8x1.4
|
28.78X23.024
|
Parallel/SPI
|
|
1.5coclor
|
128X128
|
1351
|
33.8x34x1.6
|
26.86X26.864
|
Parallel/SPI
|
|
1.69color
|
160X128
|
SEPS525/1333
|
39.9X34X1.6
|
33.575X26.864
|
Parallel/SPI
|

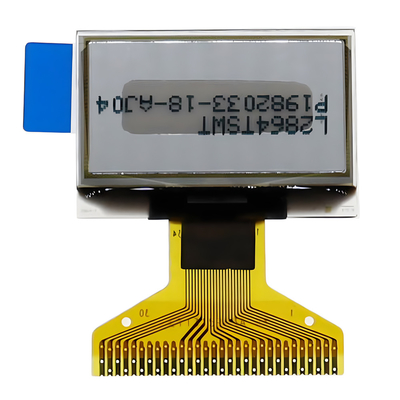

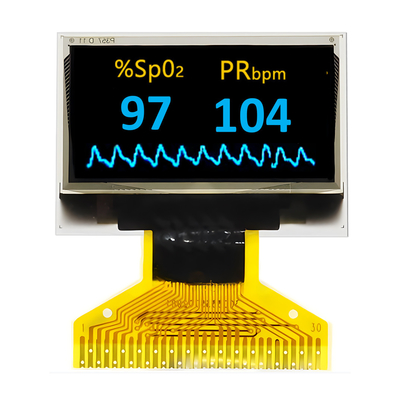

0.96 Inch Thin OLED Display Dual Color Yellow+Blue SPI Interface Product Image
