Product Details:
|
| Product: | Customized TN HTN LCD Panel | Display Mode: | Positive, Transflective/Reflective |
|---|---|---|---|
| Driving Condition: | Multiple Driving | Operating Voltage: | 3.0 V |
| Optics: | All Viewing Angles | Display Type: | TN HTN |
| Size: | 2.4 Inch Or Custom Made | Backlight: | White / Amber / Blue / Yellow |
| Operating Temp: | -30°C To +80°C | Storage Temp.: | -35°C To +85°C |
| Connection: | Metal Pin Connection | Compliance: | REACH & RoHS Compliant |
| Warranty: | One Year | Response Time: | 0.1 Ms |
| Highlight: | Electricity Meters LCD Display Screen,TN HTN LCD Display Screen,Customized LCD Display Screen |
||
Feature
1 Display Mode:TN/TRANSMISSIVE POSITIVE
2 Driving Condition: 1/4Duty , 1/3Bias,5.0V
3 Viewing direction:6:00 o’clock
4 Operation temperature:30°C TO 80°C
5 Storage temperature: -40°C TO 90°C
6 Connector:PIN
Absolute maximum rating
| No. | Item | Rating | Unit | Conditions |
| 1 |
Maximum AC applied voltage
|
10 | V | 1 hour |
| 2 |
Limited DC applied voltage
|
30 | Mv | 100hours |
| 3 |
Operating Temperature Range
|
-30+80 | ℃ |
No condensation
|
| 4 |
Storage Temperature Range
|
-40+90 | ℃ |
No condensation
|
Electro-Optic Characteristics
| NO |
ITEM
|
Symbol
|
TEMP(℃)
|
Rating |
Unit
|
Note
|
||||
|
Min
|
Typ
|
Max
|
||||||||
| 1 |
Operating Voltage |
Vop | 25 | 4.8 | 5.0 | 5.2 | V | Note1 | ||
| 2 |
Response Time
|
Rise Time
|
Tr | 25 | 100 | ms | Note2 | |||
|
Fall Time
|
Tf | 25 | 150 | |||||||
| 3 |
Operating Frequency |
fF | 25 | 75 | Hz | |||||
| 4 |
Contrast Rate |
Cr | 25 | 2 | 5 | Note3 | ||||
| 5 |
Viewing Direction |
6:00 o’clock | Note4 | |||||||
| 6 |
Viewing Angle Cr≥2
|
12H =90° | θup | 25 | 5 | Deg | Note4 | |||
| 6H f =270° | θdown | 40 | ||||||||
| 3H f =0° | θleft | 30 | ||||||||
| 9H f =180° | θright | 30 | ||||||||
| 7 |
Current Consumption |
Is | 25 | 3.0 | μA | Note5 | ||||

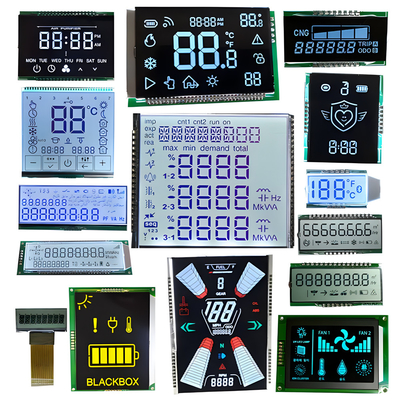

Advantages of segmented LCD displays:
low cost
Compared to other LCD screen technologies, segmented displays provide a low-cost customized solution for large-scale applications.
High contrast
According to the design, the segmented display screen displays the dynamic contrast between visible and hidden elements.
low power consumption
This display type requires very little battery power, making it very suitable for battery powered devices.
Fluid type for segmented LCD panels:
TN (twisted nematic)
The most common segment display fluid
Minimum cost selection
STN (Super Twisted Nematic)
Provide the widest perspective
More expensive than TN
FSTN (thin film super twisted nematic)
Provide the clearest contrast
More expensive than TN

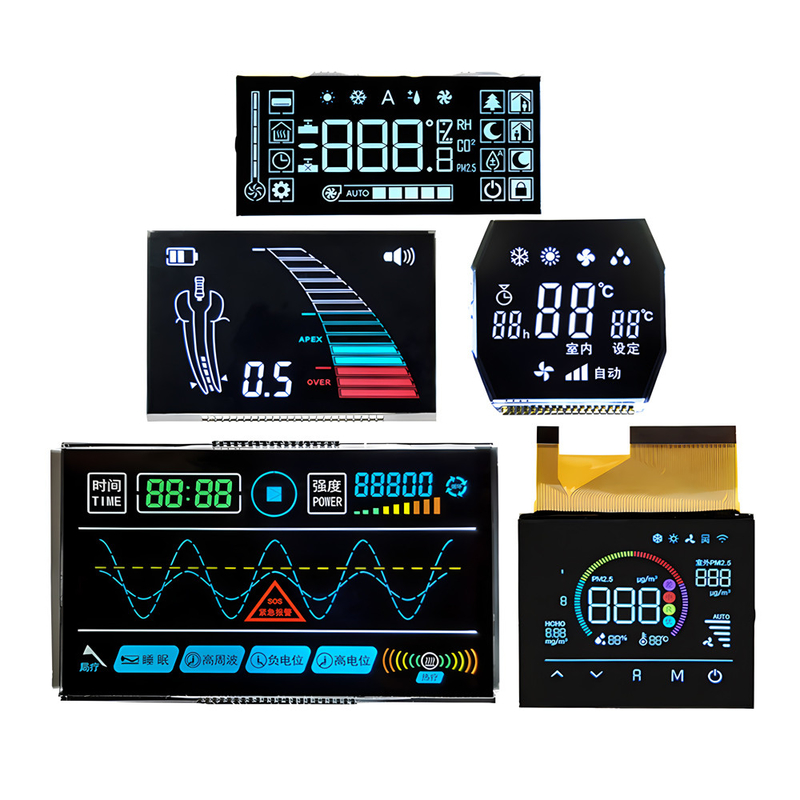

Customization
| Applicaion | Meter display |
| Display Content | digits+dots+patterns |
| Operating voltage | 3.3V or according to your demand |
| Driving method | according to your request |
| Viewing angle | 6H 9H 12H |
| LCD mode | TN STN FSTN HTN VA DFSTN optional |
| Display mode | Negative positve Reflective transfelective transmissive |
| Conecting mode | Metal pin / rubber / others |
| Backlihgtlight | Nil or with white&blue backlight |
| Voltage driving | Dynamic voltage |
| Controller | Nil or according to request |
| Interface | I2C or other |
| Operating voltage | -20~+70℃(common),according to your request |
| Storage voltage | -30~+80℃(common),according to your request |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
| Warranty | 12 moths free, payed warranty lifttime |
| Packaging | Plastic bag +foam+carton |
| carton size | 41.5x36x50cm |
| Sample lead time | 3-20 working days |
| Customize lead time | 15-30 working days |
| Production Lead time | 7 days for available designs,Customized: 35~40 days |
| Cetification | Rohs, Reach |
Packaging & Shipping
| Packaging | Plastic bag +foam+carton |
| Carton Size | 41.5cm*36.0cm*50cm or customized,100-300PCS/ carton |
| Gross weight | 15.0 -20KGS |
| MOQ | 50 pairs of mother glass |
| Specitional packaging | Negotiable |
| Shipping time | In 5 days to all area bY DHL usually |
