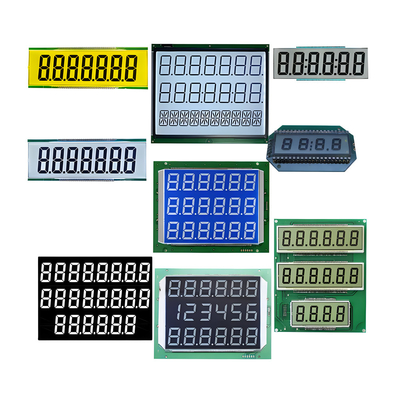

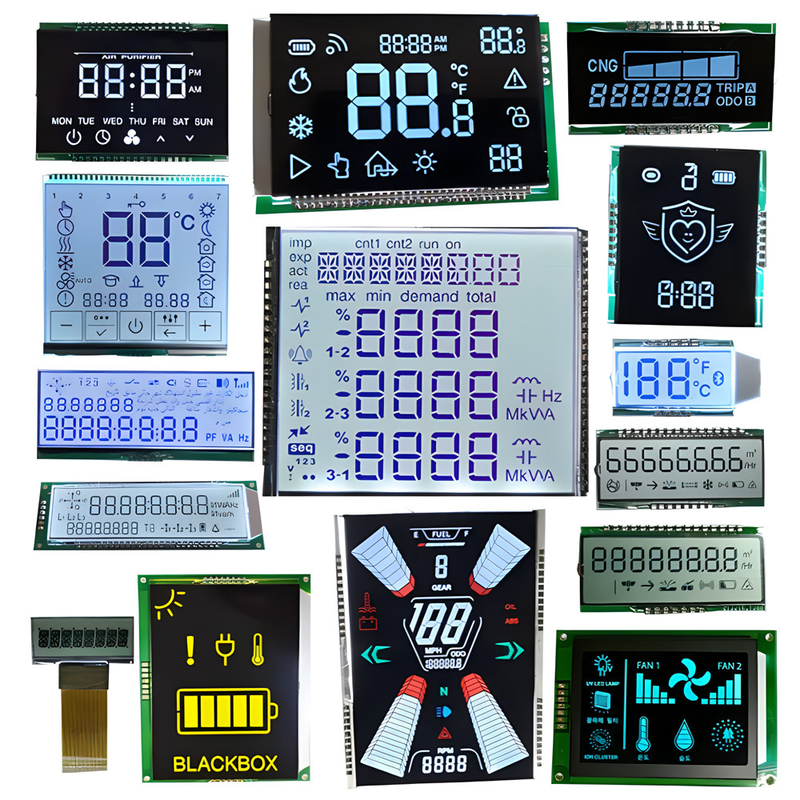

Product Details:
|
| Product: | Custom Made LCD Panel | Display Mode: | Positive Transflective/Reflective |
|---|---|---|---|
| Driving Condition: | Multiply | Operating Voltage: | 3.0 V |
| Optics: | All Viewing Angles | Display Type: | TN |
| Size: | 2.4 Inch Or Custom Made | Backlight: | White / Amber / Blue / Yellow |
| Operating Temp: | -30°C To +80°C | Storage Temp.: | -35°C To +85°C |
| Connection: | Metal Pin Connection | Compliance: | REACH & RoHS Compliant |
| Warranty: | One Year | Response Time: | 0.1 Ms |
| Highlight: | Custom Made Segment LCD Display,Reflective Positive Segment LCD Display,FSTN Segment LCD Display |
||
Advantages of segmented LCD displays:
low cost
Compared to other LCD screen technologies, segmented displays provide a low-cost customized solution for large-scale applications.
High contrast
According to the design, the segmented display screen displays the dynamic contrast between visible and hidden elements.
low power consumption
This display type requires very little battery power, making it very suitable for battery powered devices.
Fluid type for segmented LCD panels:
TN (twisted nematic)
The most common segment display fluid
Minimum cost selection
STN (Super Twisted Nematic)
Provide the widest perspective
More expensive than TN
FSTN (thin film super twisted nematic)
Provide the clearest contrast
More expensive than TN
Customization
| Applicaion | kWM meter display |
| Display Content | digits+dots+patterns |
| Operating voltage | 3.3V or according to your demand |
| Driving method | according to your request |
| Viewing angle | 6H 9H 12H |
| LCD mode | TN STN FSTN HTN VA DFSTN optional |
| Display mode | Negative positve Reflective transfelective transmissive |
| Conecting mode | Metal pin / rubber / others |
| Backlihgtlight | Nil or with white&blue backlight |
| Voltage driving | Dynamic voltage |
| Controller | Nil or according to request |
| Interface | I2C or other |
| Operating voltage | -20~+70℃(common),according to your request |
| Storage voltage | -30~+80℃(common),according to your request |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
| Warranty | 12 moths free, payed warranty lifttime |
| Packaging | Plastic bag +foam+carton |
| carton size | 41.5x36x50cm |
| Sample lead time | 3-20 working days |
| Customize lead time | 15-30 working days |
| Production Lead time | 7 days for available designs,Customized: 35~40 days |
| Cetification | Rohs, Reach |
Packaging & Shipping
| Packaging | Plastic bag +foam+carton |
| Carton Size | 41.5cm*36.0cm*50cm or customized,100-300PCS/ carton |
| Gross weight | 15.0 -20KGS |
| MOQ | 1 PCS for Cheap custom lcd screen with TN display mode |
| Specitional packaging | Negotiable |
| Shipping time | In 5 days to all area bY DHL usually |
