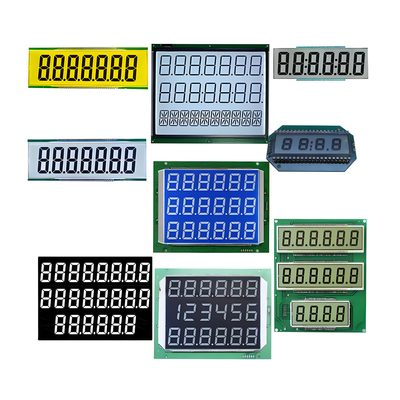

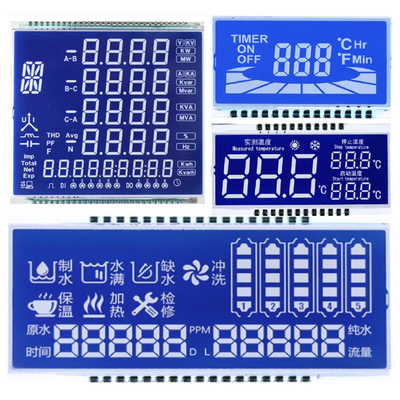

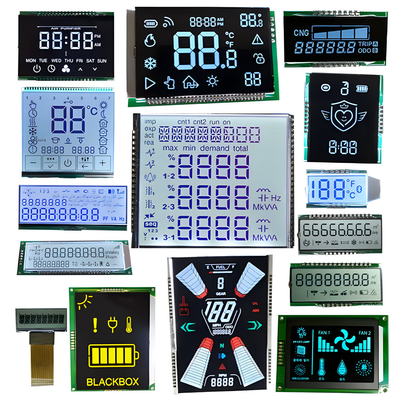

Product Details:
|
| Product: | 7 Segments LCD Display | Display Mode: | Positive Transflective/Reflective |
|---|---|---|---|
| Driving Condition: | Multiply | Operating Voltage: | 3.0 V |
| Optics: | All Viewing Angles | Display Type: | TN |
| Size: | 2.4 Inch Or Custom Made | Backlight: | White / Amber / Blue / Yellow |
| Operating Temp: | -30°C To +80°C | Storage Temp.: | -35°C To +85°C |
| Connection: | Metal Pin Connection | Compliance: | REACH & RoHS Compliant |
| Warranty: | One Year | Response Time: | 0.1 Ms |
| Highlight: | FSTN Segment LCD Display,Customized Size VA Digit LCD Screen,7 Segment Monochrome Meter Display |
||
Mono LCD technology has high reliability and is an ideal choice for industrial and consumer applications. A monochrome LCD display can be an alphanumeric LCD (character LCD), a graphic LCD, or a segmented glass LCD.
SAEFDISPLAY monochrome LCD has advantages such as low power consumption, versatile size (124 active products), wide operating temperature, and polarizing mirror options.
The monochrome alphanumeric display adopts a fixed format for the number of alphanumeric characters, such as 2 lines with 8 characters per line. The range of the character display module is from 8x1 lines to 40x4 lines. These highly reliable displays are ideal choices for industrial and consumer products - they have the advantages of low power consumption and a wide operating temperature range. There are various ready-made alphanumeric LCD and character LCD products to choose from.
Monochrome displays have pixel arrays, providing greater flexibility, but also requiring more effort as the process of driving the display is somewhat complex.
There are various cost-effective standard products available for segmented glass LCDs, which use multiplexing technology to reduce the number of control pins required to drive the display. Variants with high stability and extended temperature range are available for selection, making these products highly suitable for applications such as instruments and control panels. If needed, art customization is an economical option.
The range of character modules is from 8x1 to 40x4 lines. The range of graphic display is from 100 x 32 to 240 x 128 pixels. For large-scale applications, glass chip modules may provide a more cost-effective solution. All SAEF modules offer a range of polarizers, backlight color, and temperature range options.
SAEFDISPLY offers a wider range of complementary monochrome displays, with the advantage of minimum order quantity and short delivery time.
Customization
| Applicaion | kWM meter display |
| Display Content | digits+dots+patterns |
| Operating voltage | 3.3V or according to your demand |
| Driving method | according to your request |
| Viewing angle | 6H 9H 12H |
| LCD mode | TN STN FSTN HTN VA DFSTN optional |
| Display mode | Reflective positve transfelective transmissive |
| Conecting mode | Metal pin or rubber or other |
| Backlihgtlight | Nil or with white&blue backlight |
| Voltage driving | Dynamic voltage |
| Controller | Nil or according to request |
| Interface | I2C or other |
| Operating voltage | -20~+70℃(common),according to your request |
| Storage voltage | -30~+80℃(common),according to your request |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
| Warranty | 12 moths free, payed warranty lifttime |
| Packaging | One module in a bag, bags in small carton foam protecting, small carton in big carton |
| carton size | 41.5x36x50cm |
| Sample lead time | 3-7 working days |
| Customize lead time | 15-30 working days |
| Production Lead time | 7 days for available designs,Customized: 35~40 days |
| Cetification | Rohs, Reach |
Packaging & Shipping
| Packaging | Plastic bag +foam+cartom |
| Carton Size | 41.5cm*36.0cm*50cm or customized,100-300PCS/ carton |
| Gross weight | 15.0 -20KGS |
| MOQ | 1 PCS for Cheap custom lcd screen with TN display mode |
| Specitional packaging | negotiate |
| Shipping time | In 5 days to all area bY DHL usually |
