Product Details:
|
| Product: | 4.3 Inch TFT LCD Display | Resolution: | 480x800 Pixels |
|---|---|---|---|
| Interface: | RGB | Viewing Direction: | All Viewing Angles (IPS) |
| Touch Screen: | With Resistive Touch Screen | Surface Luminance: | 300 Cd/m2 ( Customizable ) |
| Driver IC: | HX8369-A01 | Driving Voltage: | 2.8 V |
| Operating Temp.: | -20℃ To +70℃ | Storage Temp.: | -30℃ To +80℃ |
| Connection: | ZIF FPC ( Customizable ) | Compliance: | REACH & RoHS Compliant |
| Highlight: | 480X800 IPS TFT LCD Display,Portrait Type IPS TFT LCD Display,RGB Interface IPS TFT LCD Display |
||
4.3 Inch IPS TFT 480X800 LCD Display, Portrait Type 4.3 Inch RGB Interface TFT Product Introduction
Product Quick Review
►Size : 4.3 inch IPS TFT Display
►Resolution : 480 x 800 dots
►View Direction : IPS all viewing angles
►Interface : RGB
►Driver IC:HX8369
►Control-Board : No
►Brightness (cd/m²): 300
►Touch Screen : Resistive Touch Panel
Product Description
This graphic TFT display module is a 4.3" diagonal, full-color TFT. This TFT LCD is low-power, uses a white LED backlight, and has an integrated resistive touch-screen with the connection brought out to the main TAB connector for the display.
This LCD TFT has an onboard controller and 2.8v single voltage for supply and logic. It uses a RGB interface, specified via connections to the display.
This module looks awesome! Displaying all information in full-color.
Product Information
| Product: | 4.3 Inch TFT LCD Display |
| Resolution: | 480x800 Pixels |
| Interface: | RGB |
| Viewing Direction: | All Viewing Angles (IPS) |
| Touch Screen: | With Resistive Touch Screen |
| Surface Luminance: | 300 Cd/m2 ( Customizable ) |
| Driver IC: | HX8369-A01 |
| Driving Voltage: | 2.8 V |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
| Connection: | ZIF FPC ( Customizable ) |
| Compliance: | REACH & RoHS Compliant |
4.3 Inch IPS TFT 480X800 LCD Display, Portrait Type 4.3 Inch RGB Interface TFT Product Drawing
Pin Definition
| NO. | Pin Name | I/O | Description |
| 1 | GND | I | Ground |
| 2 | LEDA | O | LED Anode |
| 3 | LEDK | O | LED Cathode |
| 4 | VCC | I | Power Supply 2.8V Voltage |
| 5 | IOVCC | I | Power Supply 2.8V/1.8V Voltage |
| 6 | SDO | I | Serial onput signal |
| 7 | SDI | I | Serial input signal |
| 8 | GND | I | Ground |
| 9 | SCL_WR | I | Read strobe signal input pin |
| 10 | CS | I | Input pin for chip selection signal |
| 11 | NC | I | NC |
| 12 | RESET | I | LCM Reset input signal |
| 13-20 | R0-R7 | I/O | Display Data I/O |
| 21-28 | G0-G7 | I/O | Display Data I/O |
| 29-36 | B0-B7 | I/O | Display Data I/O |
| 37 | DE | I | Data Enable Signal for RGB Interface Operation |
| 38 | GND | I | Ground |
| 39 | PLK | I | Dot Clock Signal for RGB Interface Operation |
| 40 | GND | I | Ground |
| 41 | HS | I | Line Horizontal Synchronizing Signal |
| 42 | VS | I | Frame Vertical Synchronizing Signal |
| 43 | ID | - | - |
| 44 | PWM | I | This pin is connected to the external LED driver. |
| 45-46 | GND | I | Ground |
| 47 | YU | O | Touch Panel Pin |
| 48 | XL | O | Touch Panel Pin |
| 49 | YD | O | Touch Panel Pin |
| 50 | XR | O | Touch Panel Pin |
| 51 | GND | I | Ground |
DC Characteristics
| Item | Symbol | Min | Type | Max | Unit | Test condition |
| Operating voltage | VDD | 2.6 | 2.8 | 3.3 | V | - |
| Supply current | IDD | - | - | 5 | mA | VDD=2.8V,Ta=25°C |
| Input voltage | VIH | 0.8VDD | - | VDD | V | - |
| VIL | 0 | - | 0.2VDD | V | ||
| Input leakage current | IIL | -1.0 | - | 1.0 | mA | VIN=VDD or VSS |
Note: Voltage greater than above may damage the module. All voltages are specified relative to VSS=0V.
Backlight Electrical-optical Characteristics
| Item | Symbol | MIN | TYP | MAX | UNIT |
Test Condition |
Note |
| Supply Voltage | Vf | - | 25.6 | - | V | If=20 mA | - |
| Supply Current | If | - | 20 | - | mA | - | - |
| Reverse Voltage | Vr | - | - | 5 | V | - | |
| Power dissipation | Pd | - | - | - | mW | - | |
| Luminous Intensity for LCM |
- |
- | 300 | - | Cd/m2 | If=20mA | - |
| Uniformity for LCM | - | 80 | - | - | ％ | If=20 mA | - |
| Backlight Color | White | ||||||
Optical Characteristics
| No. | ITEM | Symbol | Conditions | Specification | Unit | |||
| Min | Typ | Max | ||||||
| 1 | Response Time | Tr+Tf | 25℃ | - | 15 | - | Ms | |
| 2 | Transmittance (With PL) | T(%) | - | - | 7.1 | - | - | |
| 3 | Contrast Rate | Cr |
θ=0, Normal viewing angle |
- | 250 | - | - | |
| 4 |
Viewing Angle
|
Hor. | θR | CR>10 | - | 80 | - | Deg |
| θL | - | 80 | - | |||||
| Ver. | Θ+ | - | 80 | - | ||||
| Θ- | - | 80 | - | |||||

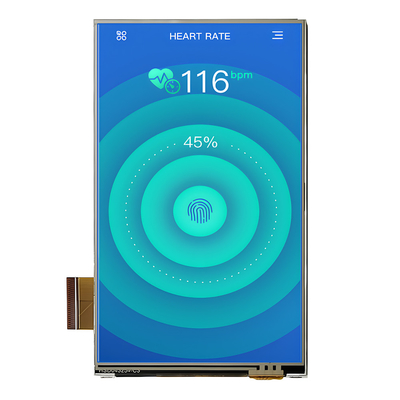

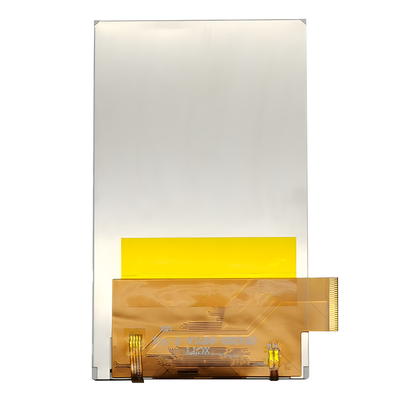

4.3 Inch IPS TFT 480X800 LCD Display, Portrait Type 4.3 Inch RGB Interface TFT Product Image
