Product Details:
|
| Product: | 0.87 Inch OLED Display | Number Of Pixels: | 128x32 Pixels |
|---|---|---|---|
| Driver IC: | SSD1312 Or Equivalent | Display Mode: | Passive Matrix |
| Display Color: | Monochrome (white) | Drive Duty: | 1/32 Duty |
| Panel Size: | 29 X 8.8 X 1.22 (mm) | Active Area: | 22.38 X 5.58 (mm) |
| Pixel Pitch: | 0.175 X 0.175 (mm) | Pixel Size: | 0.155 X 0.155 (mm) |
| Viewing Direction: | All Viewing Angles | Interface: | I2C |
| Connection: | ZIF FPC | Pin Number: | 14 Pins ( Can Be Customized） |
| Life Time: | 50,000 Hours @60cd/m2 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 128x32 Small OLED Display,0.87 Inch Small OLED Display,IIC Interface small oled screen |
||
Factory Price 0.87 Inch 128x32 Small OLED Display IIC Interface White Text Product Introduction
Product Quick Review
►Type: Graphic
►Structure: COG
►Size: 0.87 inch OLED Display
►128 x 32 Dot Matrix
►IC:SSD1312
►3V Power supply
►1/32 duty
►Interface: I2C
►Display Color: White
►Suitable for Wearable Device
Description
SFOS087XZ-7117AN OLED Display Module is a 128x32 resolution COG graphic display, diagonal size 0.87 inch. The OLED model is designed as industrial grade which is having the slim size and dvantage of competitive price. The module is built-in with SSD1312 IC; it supports I2C interface. The supply voltage for logic is 2.8V, supply voltage for display is 9V, Operating Current for VDD is 180μA, driving duty 1/32. This 0.87-inch small OLED display is designed as a soldered FPC, and we support ZIF FPC with 15 pins. Its part number is SFOS087DY-7139AP.
SFOS087XZ-7117AN OEL Display Module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃. it is suitable for wearable device, smart home applications and etc.
Product Information
| Product: | 0.87 Inch OLED Display |
| Number Of Pixels: | 128x32 Pixels |
| Interface: | I2C |
| Driver IC: | SSD1312 Or Equivalent |
| Pin Number: | 14 Pins ( Can Be Customized) |
| Display Mode: | Passive Matrix |
| Display Color: | Monochrome (white) |
| Drive Duty: | 1/32 Duty |
| Panel Size: | 29 X 8.8 X 1.22 (mm) |
| Active Area: | 22.38 X 5.58 (mm) |
| Pixel Pitch: | 0.175 X 0.175 (mm) |
| Pixel Size: | 0.155 X 0.155 (mm) |
| Viewing Direction: | All Viewing Angles |
| Connection: | ZIF FPC |
| Life Time: | 50,000 Hours @60cd/m2 |
| Compliance: | REACH & RoHS Compliant |
Features
10. This 0.87-inch OLED display has a faster response time of "10 microseconds at +25 °C".
10.This 0.87 inch mono OLED product has high brightness and this product has a contrast ratio of up to 2000:1.
11. This low cost 0.87 inch OLED product has lower power consumption - reducing CO2 emissions.
Factory Price 0.87 Inch 128x32 Small OLED Display IIC Interface White Text Product Drawing

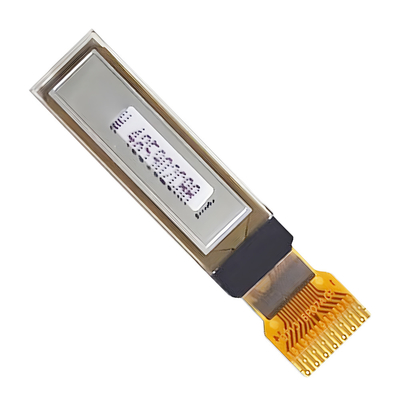

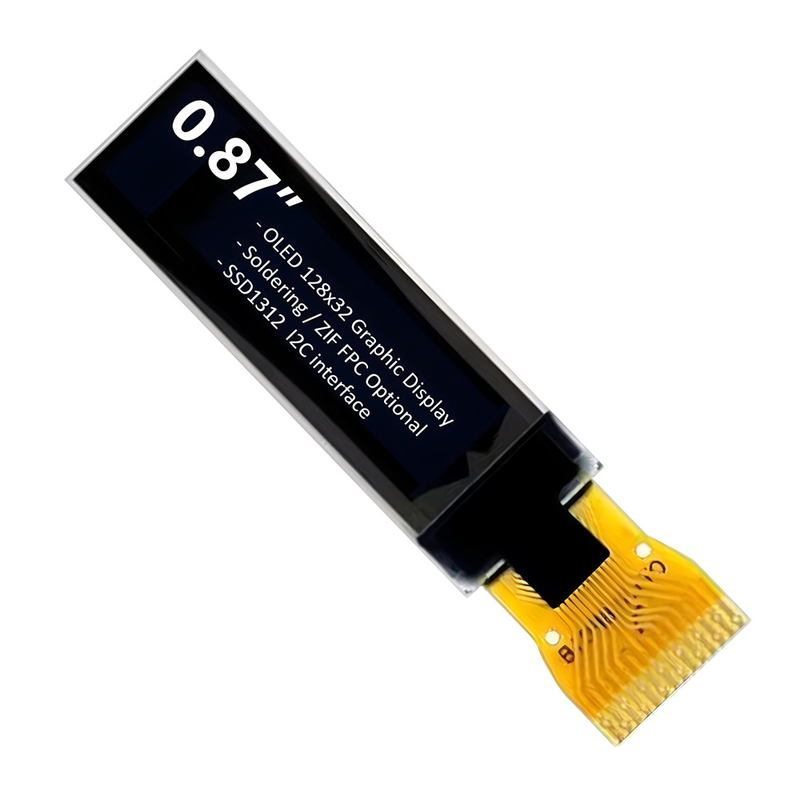

Factory Price 0.87 Inch 128x32 Small OLED Display IIC Interface White Text Product Image
Factory Facilities and Certificates
SAEF Technology is a professional OLED Module Supplier. We provide a wide range of standard passive matrix OLED (PMOLED) / OLED dot matrix display and custom design Character OLED modules, Graphic OLED displays and OLED display panels. SAEF Technology's graphic OLED display are available in three mechanical structures include COB, COG and TAB passive matrix technology. Available graphic monochrome OLED resolution in 50x16 OLED graphic display, 64x128 OLED, 100x16 OLED, 100x32 graphic OLED, 200x16 graphic OLED, OLED 128x32, OLED display 128x64, OLED 128x128, and 256x64 OLED Display. The graphic OLED display in the SAEF product range have on-board controllers and interfaces include parallel, serial, and I2C OLED, SPI OLED. These OLED display modules have driven voltages of 3V, or 5V depending on resolution/color.
SAEF offers a wide range of OLED display modules in sizes from 0.42" to 5.5" OLED, such as 0.42" micro OLED Display, 0.49" OLED Display, 0.5" OLED Display, 0.54" OLED Display, 0.66" mini OLED Display, 0.69" OLED, 0.91" OLED Display, 0.95" OLED, 0.96" OLED Display, 1.5" OLED Display, 2" OLED , 2.4" OLED , 2.7" OLED Display, 5.5" OLED Display, and custom design solutions.
