Product Details:
|
| Product: | 7.6 Inch Square LCD Display | Resolution: | 800*800 Dots |
|---|---|---|---|
| Interface: | MIPI | Surface Luminance: | 1000 Cd/m2(nits) |
| Viewing Direction: | IPS, All Viewing Angle | Touch Screen: | Customizable |
| LCD Controller: | ILI9881C | Cover Glass: | Customizable |
| Operating Temp: | -20°C To +70°C | Storage Temp.: | -25°C To +75°C |
| Brightness: | 1000 Nits | Connection: | ZIF FPC |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
| Highlight: | Square TFT LCD Display,1000 Nits TFT LCD Display,7.6 Inch tft lcd screen |
||

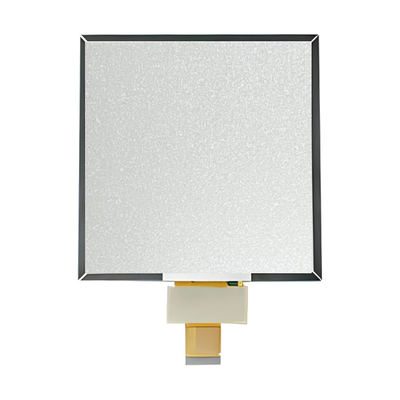

Saef Technology SFTO760GX-7109AN: High-Performance 7.6-Inch TFT LCD Module
Introducing the Saef Technology SFTO760GX-7109AN, a versatile 7.6-inch TFT LCD module designed for various applications. This square-shaped display boasts a resolution of 800x800 pixels and features the advanced ILI9881C integrated circuit, which combines controller and driver functions while supporting a MIPI interface.
Key Specifications:
The SFTO760GX-7109AN is engineered for performance in both indoor and outdoor environments, making it an ideal choice for industrial equipment, home automation systems, access control systems, monitoring equipment, analyzers, and security systems. With its high brightness and wide temperature operating range, this 7.6-inch IPS TFT LCD display module provides a reliable solution for diverse display requirements.
Explore the possibilities with the Saef Technology SFTO760GX-7109AN, a multifunctional display module that elevates your applications with clarity and durability.
Product Information
| Product: | 7.6 Inch Square LCD Display |
| Resolution: | 800*800 Dots |
| Surface Luminance: | 1000 Cd/m2(nits) |
| Interface: | MIPI |
| Touch Screen: | Customizable |
| Cover Glass Dimension: | Customizable |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| LCD Controller: | ILI9881C |
| Operating Temp: | -20°C To +70°C |
| Storage Temp.: | -25°C To +75°C |
| Brightness: | 1000 Nits |
| LED Lifetime: | 40,000 Hours |
| Connection: | ZIF FPC |
| Compliance: | REACH & RoHS Compliant |
7.6 Inch Square TFT LCD Display 800x800 Pixels 1000 Nits MIPI Interface Product Drawing
Maximum Absolute Rating
| Parameter | Symbo | Min | Max | Unit | Note |
| Power Supply voltage | VCI~GND | -0.3 | +6.5 | V | |
| Power Supply voltage 2 | IOVCC~GND | -0.3 | +3.3 | V | |
| Logic Input Voltage Range | ViN | -0.3 | IOVCC+0.3 | V | |
| Logic Output Voltage Range | Vo | -0.3 | IOVCC+0.3 | V | |
| Operating temperature | Topr | -20 | +70 | ℃ | |
| Storage temperature | Tstg | -25 | +75 | ℃ |
DC Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
| Supply voltage for analog circuit | VCl | 2.5 | 3.3 | 3.6 | V |
| Supply voltage for logic circuit | IOVCC | 1.65 | 1.8 | 3.3 | V |
| Input voltage 'H'leve | VH | 0.7*IOVCC | IOVCC | V | |
| Input voltage 'L'leve | VL | GND | 0.3*IOVCC | V | |
| Output voltage 'H'level | Voh | 0.8*IOVCCl | IOVCC | V | |
| Output voltage 'L'leve | Vol | GND | 0.2*IOVCC | V |
Pin Definition
| Pin No. | Symbol | Description |
| 1 | LEDA | LED backlight anode |
| 2 | LEDK | LED backlight cathode. |
| 3 | LEDK | LED backlight cathode |
| 4 | VCl | Power supply for the analog power |
| 5 | IOVCC | Power supply for the logic power and I/O circuit |
| 6 | RESET | Reset signal(low active |
| 7 | TE | Tearing effect output |
| 8 | PWM | The PWM frequency output for LCD driver control. |
| 9 | GND | Power ground |
| 10 | MIPI_DP0 | MIPI-DSI data lane 0 posivtve input pin |
| 11 | MIPI_DNO | MIPI-DSI data lane 0 negtive input pin |
| 12 | GND | Power ground |
| 13 | MIPI_DP1 | MIPI-DSI data lane 1 posivtve input pin |
| 14 | MIPI_DN1 | MIPI-DSI data lane 1 negtive input pin |
| 15 | GND | Power ground |
| 16 | MIPI_CLKP | MIPl-DSI data lane posivtve input pin. |
| 17 | MIPI_CLKN | MIPI-DSI data lane negtive input pin |
| 18 | GND | Power ground |
| 19 | MIPI_DP2 | MIPI-DSI data lane 2 posivtve input pin |
| 20 | MIPI_DN2 | MIPI-DSI data lane 2 negtive input pin |
| 21 | GND | Power grounc |
| 22 | MIPI_DP3 | MIPI-DSI data lane 3 posivtve input pin |
| 23 | MIPI_DN3 | MIPI-DSI data lane 3 negtive input pin |
| 24 | GND | Power ground |
| 25 | TP_INT | INT pin for CTP(NC) |
| 26 | TP SDA | SDA pin for CTP(NC) |
| 27 | TP_SCL | SCL pin for CTP(NC) |
| 28 | TP_RESET | Reset pin for TP(NC) |
| 29 | TP_VCl | VCl pin for CTP(NC) |
| 30 | TP_IOVCC | IOVCCpin for CTP(NC) |

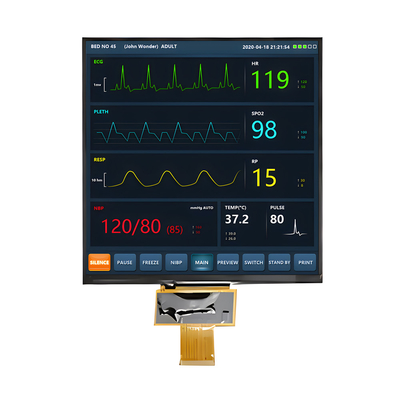

7.6 Inch Square TFT LCD Display 800x800 Pixels 1000 Nits MIPI Interface Product Image
