Product Details:
|
| Product: | 3.2" IPS TFT LCD | Resolution: | 480x800 Pixels |
|---|---|---|---|
| Interface: | RGB Interface | Viewing Direction: | IPS All Viewing Angles |
| Touch Screen: | Without Touch Screen | Pin Number: | 39 Pins |
| Connection: | ZIF FPC | Surface Luminance: | 350 Cd/m2 |
| Driver IC: | HX8369 | Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ | Compliance: | REACH & RoHS Compliant |
| Highlight: | 3.2 Inch IPS TFT LCD,480x800 Pixels IPS TFT LCD,IPS 3.2 Inch LCD Screen |
||
3.2 Inch IPS TFT LCD 480x800 Pixels, 3.2 Inch LCD Screen RGB Interface Product Introduction
The SF-TC320S-9951H-N is a 3.2-inch, 480x800 portrait mode TFT LCD display module. It features a brightness of 350 cd/nits (typical value), with a contrast ratio of 500:1 (typical value). The power supply voltage (VCC) for driving the LCD panel is 2.6V to 3.3V. This 3.2 inch IPS-LCD type TFT can operate at temperatures ranging from -20 ℃ to+70 ℃; Its storage temperature is between -30 ℃ and+80 ℃.
The 3.2 inch TFT LCD display is a small display module suitable for a variety of applications, including
Internet of Things (IoT) devices: Suitable for integration into IoT devices such as smart home systems and industrial control systems.
Medical devices: Ideal for use in portable defibrillators, insulin pumps, and other medical monitoring and diagnostic devices.
Industrial automation: Perfect for deployment in machine control systems, process control systems, and monitoring systems within industrial automation.
Gaming: Well-suited for integration into gaming applications such as handheld game consoles.
These applications represent just a few examples of the diverse potential uses for a 3.2-inch TFT display. The specific utilization will depend on the product's requirements and the desired features and performance of the display.
Features
Product information
| Product: | 3.2" IPS TFT LCD |
| Resolution: | 480x800 Pixels |
| Interface: | RGB Interface |
| Touch Screen: | Without Touch Screen |
| Connection: | ZIF FPC |
| Driver IC: | HX8369 |
| Viewing Direction: | IPS All Viewing Angles |
| Pin Number: | 39 Pins |
| Surface Luminance: | 350 Cd/m2 |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
| Compliance: | REACH & RoHS Compliant |
3.2 Inch IPS TFT LCD 480x800 Pixels, 3.2 Inch LCD Screen RGB Interface Product Drawing
Pin Definition
| NO. | PIN NAME | I/O | Description |
| 1 | GND | I | Ground |
| 2 | IOVCC | I | Power Supply 2.8V/1.8V Voltage |
| 3 | VCC | I | Power Supply 2.8V Voltage |
| 4 | CS | I | Input pin for chip selection signal |
| 5 | SCL | I | SPI Clock Signal |
| 6 | SDA | I/O | SPI Interface Input/output Pin |
| 7 | RESET | I | LCM Reset input signal |
| 8 | ENABLE | I | Input Data enable control |
| 9 | DOTCLK | I | Clock Signal to Sample each date |
| 10 | HSYNC | I | Horizontal Synchronizing Signal |
| 11 | VSYNC | I | Vertical Synchronizing Signal |
| 12-17 | B0-B5 | I/O | Display Data I/O |
| 18-23 | G0-G5 | I/O | Display Data I/O |
| 24-29 | R0-R5 | I/O | Display Data I/O |
| 30 | NC | - | Set Open |
| 31 | LED-K | O | LED Cathode |
| 32 | NC | - | Set Open |
| 33 | LED-A | O | LED Anode |
| 34 | NC | - | Set Open |
| 35 | XL | I | Touch Panel Pin |
| 36 | XR | I | Touch Panel Pin |
| 37 | YU | I | Touch Panel Pin |
| 38 | YD | I | Touch Panel Pin |
| 39 | GND | I | Ground |
Maximum Absolute Limit
| Item | Symbol | Value | Unit |
| Power supply voltage for logic | VDD | 0.3~4.6 | V |
| Input voltage | Vin | VDD+0.3 | V |
| Operating temperature | Topr | -20to 70 | °C |
| Storage temperature | Tstg | -30 to 80 | °C |
| Item | Symbol | MIN | TYP | MAX | UNIT |
Test Condition |
Note |
| Supply Voltage | Vf | 19.2 | V | If= 20 mA | - | ||
| Supply Current | If | - | 15 | 20 | mA | - | - |
| Reverse Voltage | Vr | - | - | 5 | V | - | |
| Power dissipation | Pd | - | 288 | - | mW | - | |
| Luminous Intensity for LCM |
- |
280 | 350 | - | Cd/m2 | If= 20 mA | - |
| Uniformity for LCM | - | 80 | - | - | ％ | If= 20 mA | - |
| Backlight Color | White | ||||||
| No. | ITEM | Symbol | Conditions | Specification | Unit | Note | |||
| Min | Typ | Max | |||||||
| 1 | Response Time | Tr+Tf | 25℃ | - | 25 | - | Ms | (1)(2) | |
| 2 | Transmittance (With PL) | T(%) | - | - | 6.1 | - | - | - | |
| 3 | Contrast Rate | Cr |
θ=0, Normal viewing angle |
400 | 500 | - | - | (1)(3) | |
| 4 |
Viewing Angle
|
Hor. | θR | CR>10 |
|
80 | - | Deg | - |
| θL | 80 | - | |||||||
| Ver. | Θ+ | 80 | - | ||||||
| Θ- | 80 | - | |||||||

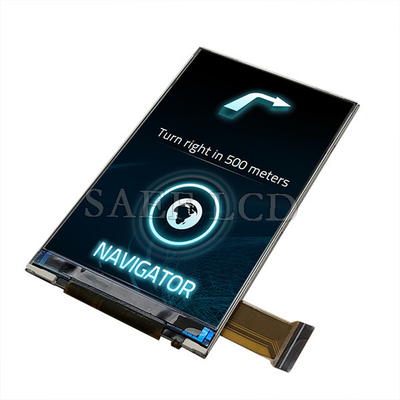

3.2 Inch IPS TFT LCD 480x800 Pixels, 3.2 Inch LCD Screen RGB Interface Product Image
