LCD Touch Screen 4.3 Inch 480*272 IPS RGB 40 Pin, China LCD Display 4.3 Inch With PCAP

LCD Touch Screen 4.3 Inch 480*272 IPS RGB 40 Pin, China LCD Display 4.3 Inch With PCAP​ Product Introduction

SFTC430B-7082B1-CT is a diagonal size 4.3 inch IPS Full Viewing Angle LCD touch screen module with resolution 480x272 pixels. This module is built in with SC7282 IC; it includes the controller and driver IC functions, supports RGB interface, supply voltage (Vdd) range from 3.0V to 3.6V. This module is with IPS full viewing angle(80/80/80/80), and aspect ratio is 16:9.
SFTC430B-7082B1-CT TFT touch screen module is horizontal mode with brightness 350 nits. The module also is available for Resistive Touch  Screen and Projected Capacitive Touch Screen optional. SFTC430B-7082B1-CT TFT LCD touch screen can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
Application
Widely used in coffee machine, micro-wave oven, scanner, home automation, access control system, monitoring equipment, analyzers, security system, garden irrigation system, POS terminal, Cash Reader, etc.

Product Advantages
1.IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
2.Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
3.Another verion for 4.3 inch, it can be operated at Wide Temperature of Top of -30℃ to +80℃ for industrial applications.
4.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
5.Low-cost solution among the same kinds in the LCD industry.
6.Easy to install and easy to maintain.

480x272 display resolution full color 4.3" LCD touch screen
SAEFTECH's SFTC430B-7082B1-CT TFT LCD touch screen can brightly display up to 16M colors.
SAEFTECH's Full Color 4.3" TFT LCD touch screen Picture with 480x272 Resolution. SAEFTECH's 4.3"TFT LCD touch screen beautifully presents the user's graphics and images. This 480x272 LCD features a full viewing angle(85/85/85/85), a 24-bit parallel RGB interface with 40 pin connection, a bright LED backlight, and a choice of resistive touch or capacitive touchscreen panels. With its ability to generate up to 16M colors, users can perfectly display colors that match their brand on this display. SAEFTECH's SFTC430B-7082B1-CT Series enhances the device's user interface with rich colors, touchscreen, and backlit display brightness control.

LCD Touch Screen 4.3 Inch 480*272 IPS RGB 40 Pin, China LCD Display 4.3 Inch With PCAP​ Product Drawing

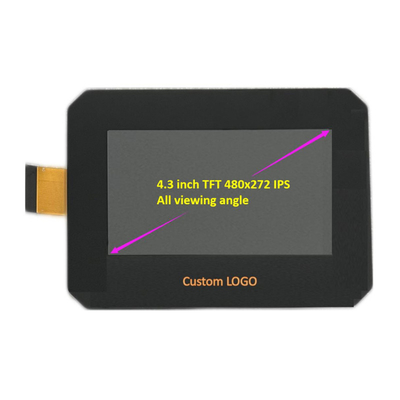

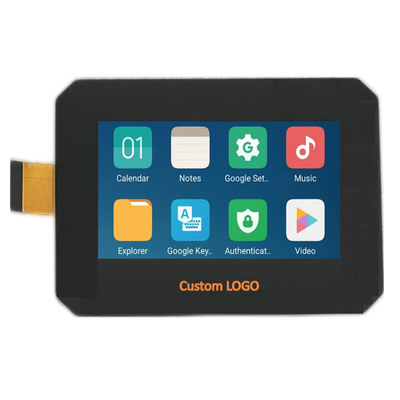

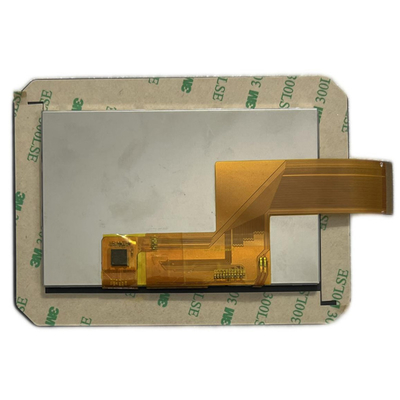

LCD Touch Screen 4.3 Inch 480*272 IPS RGB 40 Pin, China LCD Display 4.3 Inch With PCAP​ Product Image

Industrial touch screen surface glass cover customization

As we all know, TFT LCD screen is a display device, and if you need to touch, you need to add an industrial touch screen to achieve touch function, and touch is to fit the surface of TFT LCD screen, when customers have appearance customization needs, we can solve customer customized appearance needs by customizing cover glass, the top layer of capacitive touch screen is called glass cover, it is the most common custom component in the touch screen, and then we introduce the customized solution selection of industrial touch screen glass cover in detail.

1. The thickness of the cover glass

The thickness of the cover glass of the industrial touch screen depends on the size of the LCD screen. For the special requirements of customers, different glass thicknesses can be customized, such as 0.55mm, 0.7mm, 1mm, 1.8mm, 2mm, 3mm, 5mm, etc.

2, The real color of the cover glass

A good TFT LCD screen can always show a clear and vibrant image, and after pasting it to the touch, in order to keep the color clear and true. We achieved this by choosing an ultra-clear cover glass solution for industrial touch screens.

3, The safety of the cover glass

The safety of the cover glass needs to be guaranteed. The two most popular options at the moment are: chemically tempered glass and thermally tempered glass. Both types of glass have increased strength due to the post-production process (chemical or heat treatment). When chemically tempered glass is broken, it shatters in long shards, unlike regular glass. The structure of hot-tempered glass after breaking is different, it will break into smaller granules.

4. Other materials of the cover glass

In most cases, the cover glass is actually made of glass. So, it's clear that that's where the name comes from. But it can also be made from other materials. A good alternative to cover glass is PMMA (polymethyl methacrylate). PMMA is a transparent thermoplastic. It is a softer material than glass (hardness is around 3H), but it is less transparent. It has a low dielectric constant, so to maintain the same properties, it must be half the thickness of glass. PMMA is a great solution, more suitable for industrial and rugged environments.

5. Cover glass silk screen printing

The cover glass itself is touching the most surface, we can also customize the size larger than the LCD screen, to make a full-plane structure, then in the frame size outside the display area, you can customize the black silk screen printing, you can also customize the display LOGO, to achieve the effect of beautifying the industrial touch screen.

Factory Facilities and Certificates
