11.9 Inch Strip Display For Advertisement And Signage Supports Raspberry Pi Jetson Nano And Windows

11.9 Inch Strip Display For Advertisement And Signage Supports Raspberry Pi Jetson Nano And Windows Product Introduction

Product Features:
1. SFHD1190WX-3201480A-CT TFT LCD module is a 11.9 inch diagonal 320xRGBx1480 full color strip bar type TFT Module..

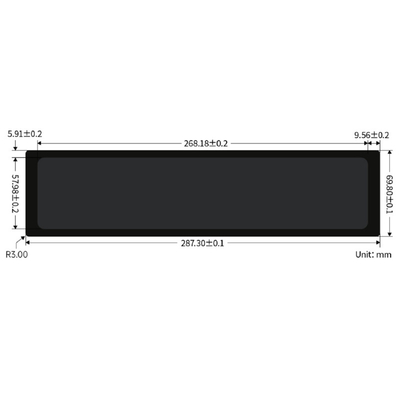

2. This module supports HDMI Interface. it is having module dimension of 287.3x69.8x16.5 mm and Active area size of 268.18x57.98 mm;

3. SFHD1190WX-3201480A-CT module is with 480cd/m2 (nits) surface brightness, this LCD Display Module can be operating at temperatures from–20℃ to +70℃.

4. This 11.9" TFT LCD can be customed designing with any size of capacitive touch screen lens.

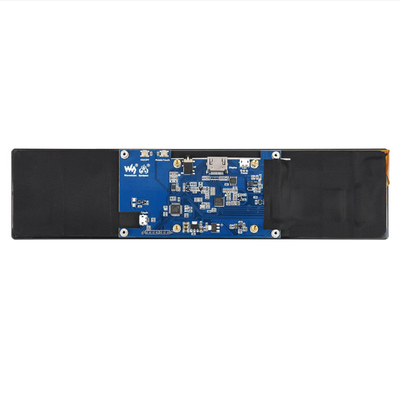

5. SFHD1190WX-3201480A-CT is a 11.9 inch TFT LCD display control module which integrated with LCD screen, capacitive touch screen and HDMI driving board. It perfectly presents the HDMI digital signal output from the PC on the 320*1480 LCD display. It supports Windows / Raspberry Pi.

Characteristics:

1. SFHD1190WX-3201480A-CT is a 11.9 inch IPS screen with hardware resolution of 320×1480 dot resolution. Viewing angles 85:85:85:85

2. SFHD1190WX-3201480A-CT is with 5-point capacitive touch control, tempered glass panel, hardness up to 6H.

3. When SFHD1190WX-3201480A-CT was used with Raspberry Pi, supports Raspberry Pi OS/Ubuntu/Kali and Retropie.

4. When SFHD1190WX-3201480A-CT used as a computer monitor, supports Windows 11/10/8.1/8/7.

5. SFHD1190WX-3201480A-CT is with 3.5mm audio, supporting HDMI audio output.

6. SFHD1190WX-3201480A-CT's surface brightness is 480nits, and it’s adjustable on PCB.

7. SFHD1190WX-3201480A-CT's backlight lifetime: 40000hours.

Applications:

This LCD module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image. SAEF Bar Type TFT-LCD displays are perfect for industrial equipment, automotive application, server system, POS system, dynamic information displays and advertising display.

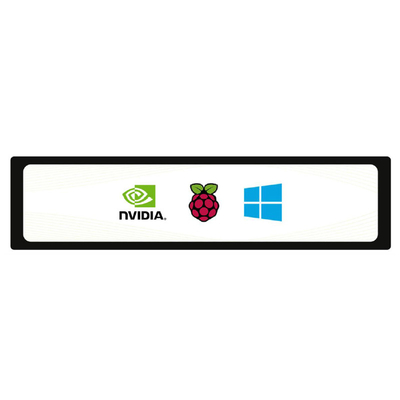

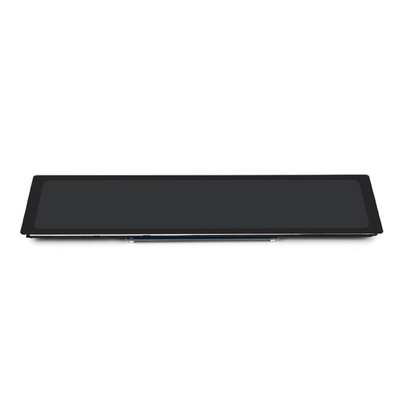

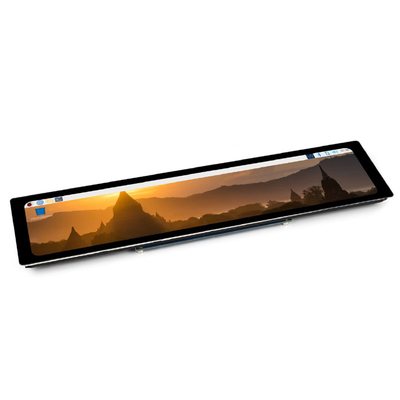

11.9 Inch Strip Display For Advertisement And Signage Supports Raspberry Pi Jetson Nano And Windows roduct Image

What is a strip LCD screen? What are the application scenarios of the strip screen?

What is a strip screen? What are the application scenarios including the strip screen? Many people have such questions, at present, with the continuous progress and development of science and technology, the development of the LCD screen industry is promoted, and the strip screen is a new product under the development of science and technology. Nowadays, there are more and more places where strip screens are used, such as: buses, supermarket shelves, subway station reminder boards and other places. According to the different places and uses, the bar screens with different functions such as vehicle bar screens and bus guide screens are derived. So what exactly is a bar screen and what are the application scenarios of the bar screen, and the next Nu Skin editor will explain to you:

First, what is a strip LCD screen?

Strip screen refers to a long LCD screen with a length-to-width ratio larger than that of ordinary displays, which is used in retail, transportation, banking, enterprises and other industries due to its diverse size, clear display and rich functions, and the scope of use is expanding day by day. The LCD strip screen is combined with the information release system to support basic functions such as split-screen playback, time-sharing playback, and timed power on/off; Support terminal group management, account authority management, and system security management; Support extended functions, such as pick-up playback, multi-screen synchronization, linkage playback, etc. Nu Skin high-brightness strip screens have been rooted in China's rail transit industry for many years and have been exported to many countries around the world, including retail shelves, subway platforms, bank windows, corporate elevators, etc.

Second, what are the application scenarios of the bar screen?

1. Large shopping malls and supermarkets:

shopping malls and supermarkets are the places with the largest flow of people, and the detailed content or parameters of the goods are introduced to customers through the bar screen, which can greatly attract traffic and increase the probability of purchase. In addition, under the impact of the new retail model, major shopping malls have begun to renovate, using shelf strip screens as a weapon for advertising and sales assistance.

2. Subway and bus station signs:

It can be used as a bus subway station screen, bus and subway car display, and comprehensively display vehicle arrival information and other multimedia advertising information. The audience of the on-board strip screen is concentrated, taking the bus on-board strip screen as an example, the bus is still one of the main means of transportation for the public, and the number of passengers who take it every day reaches one million. In people's leisure time, if there is a mobile colorful display screen in front of them to broadcast news, entertainment, weather, advertising, ride information, etc., this kind of "cramming" reading media can attract the attention of passengers to the greatest extent, and it must be able to achieve good advertising effects.

3. Banks and hospitals:

for customer-oriented financial services, the bar screen can provide timely and accurate financial information; Hospital registration, attending doctors and other publicity and display needs.

4. Advertising media field:

the strip screen perfectly combines pictures, videos, texts and sounds, and has the characteristics of high definition, high brightness, bright colors, vivid images, simple and bright. With its unique advantages, it has become a new force in the advertising media industry.

Whether it is a shelf strip screen, a car strip screen, or a hospital, bank strip screen, they all have a wide audience, the market potential of the common characteristics, once the product is promoted on a large scale, this has a huge audience, and the advertising cost of the media, will definitely attract the attention of many advertisers.

Shenzhen SAEF Technology Ltd. has developed for 16 years, specializing in the development and production of long LCD screens, advertising machine bar screens, high-brightness bar LCD screens, TFT bar LCD screens, vehicle bar LCD screens, etc., the stability and reliability of subway rail transit level have been applied in various industries, more information can be found via www.saefdisplay.com for more information.

Facilities and Certificates:

Why Choose us

1．We provide LCD Display custom solution

Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.

2．Total solutions for Touch screen and display

Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.

3．Commitment to quality reliability

SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.

4．Long-term supply

Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
