0.96 Inch SSD1306 Controller 7 Pin White And Blue Fonts SPI OLED Display 128x64 3V PMOLED

0.96 Inch SSD1306 Controller 7 Pin White And Blue Fonts SPI OLED Display 128x64 3V PMOLED Product Description

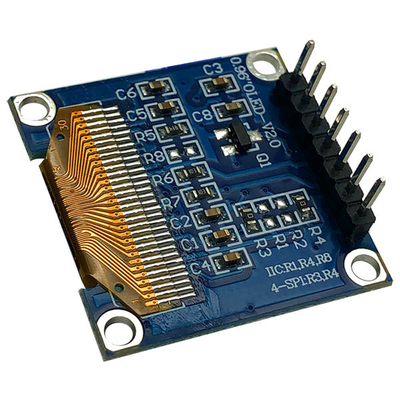

SFOM096YZ7-12864WB-01 model is the extension item of SF-OS096YZ7-12864WB-01 which is having a PCB board on module; it's diagonal size 0.96 inch, made of 128x64 pixels. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. SFOM096YZ7-12864WB-01 module is built in with SSD1306 IC; it supports 4-wire SPI interface; optional I2C interface, driving duty 1/64, supply voltage for logic is from 3.3V ~5V, I/O level 5V to 3V with conversion circuit, the display with 50% check board current is 80mA @3.3VDD (typical value).  the connection of the module is 7 header pins, optional 4 pins header pins connection.
This OLED module is suitable for smart home application, medical device, smart control, meter, etc. it can be operating at temperatures from -40℃ to +85℃;

1.  0.96 inch mini OLED display with 128X64 resolution and SSD1306 chipset
2.  Ultra-low power consumption: full screen lighting 0.08w
3.  Four mounting holes for easy installation
4.  Interface type: SPI (can be changed to IIC)
5.  Support a variety of control chips: fully compatible with Arduino 51 series, msp430 series, stm32/2 CSR IC, ETC
6.  Power Voltage: DC 3V - 5V


Features:


SAEF Technology is a professional OLED Module Supplier. We provide a wide range of standard passive matrix OLED (PMOLED) / OLED dot matrix display and custom design Character OLED modules, Graphic OLED displays and OLED display panels. Mechanical structure includes Chip on Board (COB), Chip on Glass (COG), and TAB (Tape Automated Bonded) types. Customers can upgrade applications from STN LCD to OLED displays easily. SAEF OLED modules are featured with all the important advantages –

• Faster response time “At +25 ℃ 10 μsec.”
• Unlimited viewing angle “Up to 175 degree
• Thin – No need of backlight, self emitting
• High Brightness
• High contrast ratio “Up to 10,000:1”
• Wide Operation Temperature “-40 ℃ ~ 80 ℃”
• Lower power consumption

0.96 Inch SSD1306 Controller 7 Pin White And Blue Fonts SPI OLED Display 128x64 3V PMOLED Product Drawing

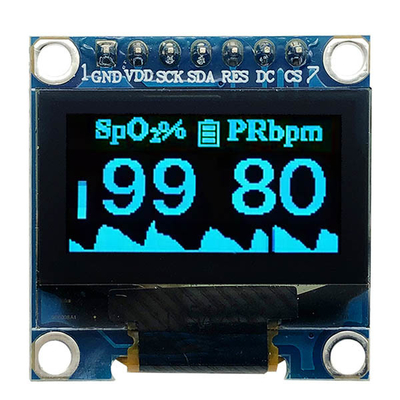

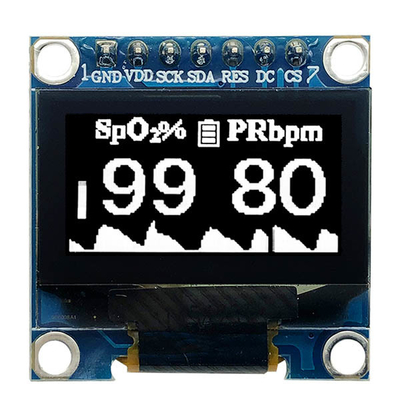

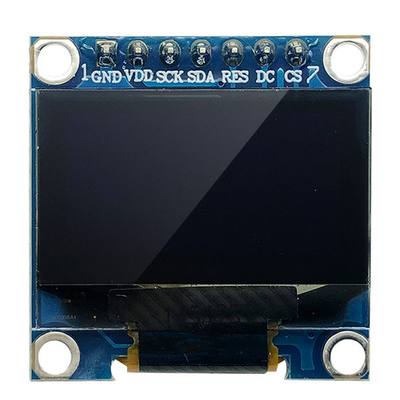

 0.96 Inch SSD1306 Controller 7 Pin White And Blue Fonts SPI OLED Display 128x64 3V PMOLED Product Image


Precautions for Handling OLED Module

1. The display panel is made of glass and polarizer. As glass is fragile. It tends to become chipped during handling especially on the edges. Please avoid dropping or jarring. Do not subject it to a mechanical shock by dropping it or impact.
2. Do not apply excessive force to the display surface or the adjoining areas since this may cause abnormal. Do not touch the display with bare hands. This will stain the display area (some cosmetics are determined to the polarizer).
3. The polarizer covering the display surface of the OLED module is soft and easily scratched. Handle this polarizer carefully. Do not touch, push or rub the exposed polarizers with anything harder than an HB pencil lead (glass, tweezers, etc.). Do not put or attach anything on the display area to avoid leaving marks on it. Condensation on the surface and contact with terminals due to cold will damage, stain or dirty the polarizer. After products are tested at low temperature they must be warmed up in a container before coming in to contact with room temperature air.
4. If the display surface becomes contaminated, breathe on the surface and gently wipe it with a soft dry cloth. If it is heavily contaminated, moisten cloth with one of the following solvents.
- Isopropyl alcohol
- Ethyl alcohol
Do not scrub hard to avoid damaging the display surface.
5. Solvents other than those above-mentioned may damage the polarizer. Especially, do not use the following.
- Water
- Ketone
- Aromatic solvents
Wipe off saliva or water drops immediately, contact with water over a long period of time may cause deformation or color fading. Avoid contact with oil and fats.
6. Exercise care to minimize corrosion of the electrode. Corrosion of the electrodes is accelerated by water droplets, moisture condensation or a current flow in a high-humidity environment.
7. When mounting the OLED module make sure it is free of twisting, warping and distortion. In particular, do not forcibly pull or bend the IO cable.

8. Do not attempt to disassemble or process the OLED module.
9. NC terminal should be open. Do not connect anything.
10. If the logic circuit power is off, do not apply the input signals.
11. Electro-Static Discharge Control,Since this module uses a CMOS LSI, the same careful attention should be paid to electrostatic discharge as for an ordinary CMOS IC. To prevent destruction of the elements by static electricity, be careful to maintain an optimum work environment.

- Before removing OLED from its packing case or incorporating it into a set, be sure the module and your body have the same electric potential. Be sure to ground the body when handling the OLED modules.
- Tools required for assembling, such as soldering irons, must be properly grounded. Make certain the AC power source for the soldering iron does not leak. When using an electric screwdriver to attach LCM, the screwdriver should be of ground potentiality to minimize as much as possible any transmission of electromagnetic waves produced sparks coming from the commutator of the motor.
- To reduce the amount of static electricity generated, do not conduct assembling and other work under dry conditions. To reduce the generation of static electricity be careful that the air in the work is not too dry. A relative humidity of 50%-60% is recommended. As far as possible make the electric potential of your work clothes and that of the work bench the ground potential.
- The OLED module is coated with a film to protect the display surface. Exercise care when peeling off this protective film since static electricity may be generated.

Precautions for Storing OLED Module

1. When storing the OLED modules, the following precautions are necessary.
i. Store them in a sealed polyethylene bag with the desiccant.
ii. Store them in a dark place. Do not expose to sunlight or fluorescent light, keep the temperature between 0℃ and 35℃, and keep the relative humidity between 40%RH and 60%RH.
iii. The polarizer surface should not come in contact with any other objects (We advise you to store them in the anti-static electricity container in which they were shipped).
2. Others
i. If the OLED modules have been operating for a long time,it will cause brightness decay. It is no recommended to showing the same display patterns for a long time, otherwise the display patterns may remain on the screen as ghost images and it is unrecoverable.
ii. To minimize the performance degradation of the OLED modules resulting from destruction caused by static electricity etc., exercise care to avoid holding the following sections when handling the modules.
- Exposed area of the printed circuit board.
-Terminal electrode sections.
