1.69 inch Color OLED 160x128 RGB SSD1333 UG-6028GDEFF Parallel 4-wire SPI I2C interface

1.69 inch Full Color OLED 160x128 Pixels SSD1333 Driver IC Product Introduction

The Organic Light-Emitting Diode (OLED) is a new generation technology, brighter and clearer images with more agile responding speed. This OLED 1.69" inch model no. UG-6028GDEFF01 OLED display is made of 160 x 128 dots individual mono color. This OLED module is lightweight, low power and small, there are different interfaces optional; it is default SPI, Parallel and I2C interface.

The size of the active area is 1.69” diagonal with module dimension 39.90 x 48.50 x 1.60 (mm), active area dimension 33.575 x 26.864 (mm) .  This 1.69 inches OLED display has built-in IC SSD1333 and boasts high contrast ratio 20,000 : 1. Logic supply voltage ranges from 1.65V-3.5V, the typical value is 3V. It is great for the application such as medical device, POS system, white goods, home applications, industrial instrument, automation, audio/visual display systems, personal care appliances, household goods, automobile displays, Dynamic information displays etc.

Supply Voltage for Operation(VDD ): -0.3- 4 V
Supply Voltage for I/O Pins(VDDIO):  -0.3 - 4 V
Supply Voltage for Display(VDDH): -0.3 - 15 V
Life Time (80 cd/m2) : 10,000  hour

> All the above voltages are on the basis of “VSS = 0V”.

> When this module is used beyond the above absolute maximum ratings, permanent breakage of the module may occur. Also, for normal operations, it is desirable to use this module under the conditions according to Section 3. “Optics & Electrical Characteristics”. If this module is used beyond these conditions, malfunctioning of the module can occur and the reliability of the module may deteriorate.

> The defined temperature ranges do not include the polarizer. The maximum withstood temperature of the polarizer should be 80C.

> VCC = 14.0V, Ta = 25°C, 50% Checkerboard. Software configuration follows Section 4.5 Initialization. End of lifetime is specified as 50% of initial brightness reached. The average operating lifetime at room temperature is estimated by the accelerated operation at high temperature conditions.

1.69 inch Full Color OLED 160x128 Pixels SSD1333 Driver IC Product Drawing

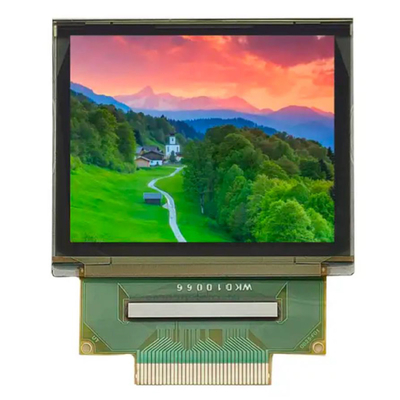

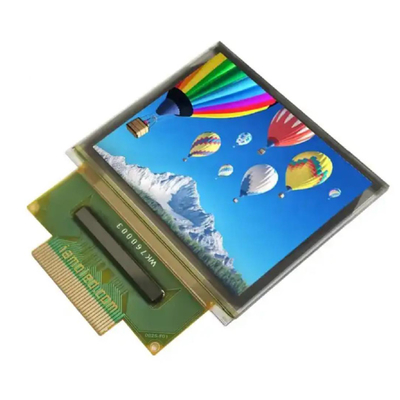

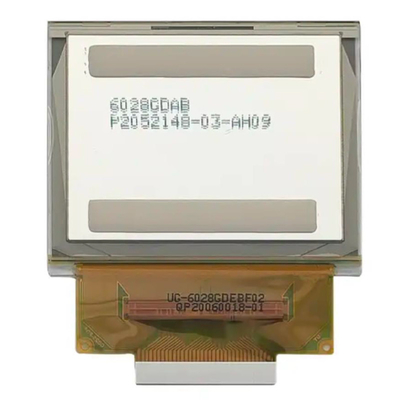

1.69 inch Full Color OLED 160x128 Pixels SSD1333 Driver IC Product Image

Designing Precautions for OEL display module

1) The absolute maximum ratings are the ratings which cannot be exceeded for OEL display module, and if these values are exceeded, panel damage may be happen.
2) To prevent occurrence of malfunctioning by noise, pay attention to satisfy the VIL and VIH specifications and, at the same time, to make the signal line cable as short as possible.
3) We recommend you to install excess current preventive unit (fuses, etc.) to the power circuit (VDD). (Recommend value: 0.5A)
4) Pay sufficient attention to avoid occurrence of mutual noise interference with the neighboring devices.
5) As for EMI, take necessary measures on the equipment side basically.
6) When fastening the OEL display module, fasten the external plastic housing section.
7) If power supply to the OEL display module is forcibly shut down by such errors as taking out the main battery while the OEL display panel is in operation, we cannot guarantee the quality of this OEL display module.
8) The electric potential to be connected to the rear face of the IC chip should be as follows: SSD1333
* Connection (contact) to any other potential than the above may lead to rupture of the IC.
