Product Details:
|
| Product: | EPD 2.13" | Resolution: | 122x250 Dots Resolution |
|---|---|---|---|
| Display Mode: | Active Matrix Electrophoretic Display(AM EPD) | Optics: | All Viewing Angles |
| Outline Dim.: | 29.2(H)x59.2(V)x1.0(D) Mm | Active Area: | 23.705(H)x48.55(V) Mm |
| Operating Temp: | 0°C To +50°C | Storage Temp.: | -25°C To +60°C |
| Pin Number: | 24 Pins | Interface: | SPI |
| Highlight: | 122x250 Dots Resolution Eink Screen,3 Colors Eink Screen |
||
2.13-Inch Eink Screen, Bare Screen, E-Paper Screen Display Module, 3 Colors Red, Black And White
3 colors BWR EPD 2.13 inch Screen, 2.13" E-ink ESL Display Description
SAEF Technology SFEPD213BWR-7018A01 is a 3-Colors 2.13” HR a-Si, active matrix TFT, Electronic Paper Display (EPD) panel. The panel has such high resolution (131dpi) that it is able to easily display fine patterns. Due to its bi-stable nature, the EPD panel requires very little power to update and needs no power to maintain an image.
Features
1. a-Si TFT active matrix Electronic Paper Display(EPD)
2. Three colors support: White, Black, Red
3. Resolution: 250 x 122
4. Ultra-low power consumption
5. Super Wide Viewing Angle - near 180°
6. Extra thin & light
7. SPI interface
8. RoHS compliant
| Product: | EPD 2.13" inch | Resolution: | 122x250 Dots Resolution |
|---|---|---|---|
| Display Mode: | Active Matrix Electrophoretic Display(AM EPD) | Optics: | All Viewing Angles |
| Outline Dim.: | 29.2(H)x59.2(V)x1.0(D) Mm | Active Area: | 23.705(H)x48.55(V) Mm |
| Operating Temp: | 0°C To +50°C | Storage Temp.: | -25°C To +60°C |
| Pin Number: | 24 Pins | Interface: | SPI |
Application
Electronic Shelf Label System, e-paper readers, e-paper notebooks, mobile phones, computers, monitors, wearable products,
2.13-Inch Eink Screen, Bare Screen, E-Paper Screen Display Module, 3 Colors Red, Black And White
3 colors EPD 2.13 inch Screen, 2.13" E-ink ESL Display Drawing
2.13-Inch Eink Screen, Bare Screen, E-Paper Screen Display Module, 3 Colors Red, Black And White

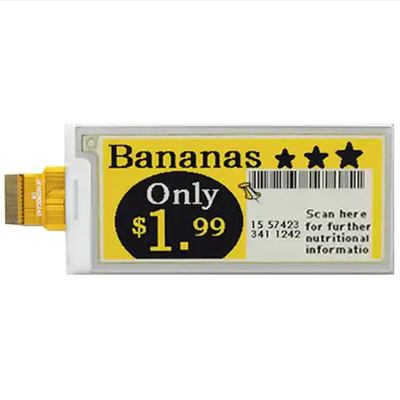

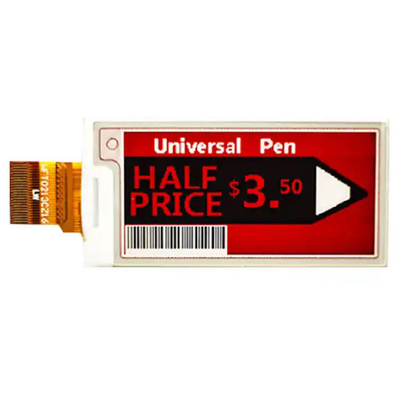

3 colors EPD 2.13 inch Screen, 2.13" E-ink ESL Display Product Image
Precaution
(1) The EPD Panel / Module is manufactured from fragile materials such as glass and plastic, and may be broken or cracked if dropped. Please handle with care. Do not apply force such as bending or twisting to the EPD panel.
(2) It is recommended to assemble or install EPD panels in a clean working area. Dust and oil may cause electrical shorts or degrade / scratch / dent the protection sheet film.
(3) Do not apply pressure to the EPD panel in order to prevent damaging it.
(4) Do not connect or disconnect the interface connector while the EPD panel is in operation.
(5) Please support the bezel with your finger while connecting the interface cable such as the FPC.
(6) Do not stack the EPD panels / Modules.
(7) Do not press the FPC on the glass edge or Pull FPC up / down to 90°.
(8) Do not touch the FPC lead connector.
(9) Do not touch IC bonding area. It may scratch TFT lead or damage IC function.
(10) Wear a Wrist Strap (Grounding connect) when handling and during assembly. Semiconductor devices are included in the EPD Panel / Module and they should be handled with care to prevent any electrostatic discharge (ESD). (An Ion Fan may be needed in assembly operation to reduce ESD risk.)
(11) Keep the EPD Panel / Module in the specified environment and original packing boxes when storage in order to avoid scratching and keep original performance.
(12) Do not disassemble or reassemble the EPD panel.
(13) Use a soft dry cloth without chemicals for cleaning. Please don’t press hard for cleaning because the surface of the protection sheet film is very soft and without hard coating. This behavior would make dent or scratch on protection sheet.
(14) Please be mindful of moisture to avoid its penetration into the EPD panel, which may cause damage during operation.
(15) It’s low temperature operation product. Please be mindful the temperature different to make frost or dew on the surface of EPD panel. Moisture may penetrate into the EPD panel because of frost or dew on surface of EPD panel, and makes EPD panel damage.
(16) If the EPD Panel / Module is not refreshed every 24 hours, a phenomena known as “Ghosting” or “Image Sticking” may occur. It is recommended that customer refreshed the ESL / EPD Tag every 24 hours in use case. It is recommended that customer ships or stores the ESL / EPD Tag with a completely white image to avoid this issue
(17) High temperature, high humidity, sunlight or fluorescent light may degrade the EPD panel’s performance. Please do not expose the unprotected EPD panel to high temperature, high humidity, sunlight, or fluorescent for long periods of time.
(18) The label ink used for marking the Panel ID number is erased easily by solvent. Please avoid using solvent to clean the EPD panel.
(19) The EPD is vacuum packed.
(20) Before approved by BOE and customer, products and product specifications may be subject to change without notice. Confirm that you have received the latest product standards or specifications before final design, purchase or use.
(21) BOE makes every attempt to ensure that its products are of high quality and reliability. However, contact BOE sales office before using the product in an application that demands especially high quality and reliability or where its failure or malfunction may directly threaten human life or cause risk of bodily injury, such as aerospace, aeronautics, nuclear power, combustion control, transportation, traffic, safety equipment or medical equipment for life support.
(22) Design your application so that the product is used within the ranges guaranteed by SAEF particularly for maximum rating, operating supply voltage range, heat radiation characteristics, installation conditions and other characteristics. SAEF bears no responsibility for failure or damage when used beyond the guaranteed ranges. Even within the guaranteed ranges, consider normally foreseeable failure rates or failure modes in semiconductor devices and employ systemic measures such as fail safes, so that the equipment incorporating SAEF product does not cause bodily injury, fire or other consequential damage due to operation of the SAEF product.
(23) This product is not designed to be radiation resist
