Product Details:
|
| Product: | 3.12" Inch Passive OLED | Resolution: | 256x64 Pixels Resolution |
|---|---|---|---|
| Interface: | Parallel, SPI Optional | Display Color: | White, Yellow |
| Optics: | All Viewing Angles | Display Mode: | Passive Matrix |
| Outline Dim.: | 88.00 (W) X27.80 (H) | Driver IC: | SSD1322 |
| Active Area: | 76.78 (W) X 19.18 (H) | Pixel Pitch: | 0.30 (W) X 0.30 (H) |
| Operating Temp: | -40°C To +80°C | Storage Temp.: | -40°C To +85°C |
| Supply Voltage: | 2.4 - 3.5V | Pin Number: | 30 Pins |
| IC Package Type: | COF | Module Connecting Type: | Plug-in Connection |
| Duty: | 1/64 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 3.12” OLED Display Module,256*64 Dots OLED Display Module,Parallel OLED Display Module |
||
UG-5664ASWEF01 3.12" 256*64 Dots OLED Display Module with SPI/Parallel/I2C Interface Display Description
Organic light-emitting diodes (OLEDs) are a next-generation technology that enables brighter, clearer images and more agile responses. This OLED 3.12-inch model UG-5664ASWEF01 OLED display is made of 256 x 64 dots individual rmonochrome. This OLED module is lightweight, low power consumption, small size, and has different interface options; It is the default SPI, parallel, and I2C interface.
The active area dimensions are 3.12 inches diagonal, the module dimensions are 88.00 (W) x 27.80 (H) mm, and the active area dimensions are 76.78 (W) x 19.18 (H) mm. This 3.12-inch OLED display has a built-in IC SSD1322 and a high contrast ratio of 20,000:1. The logic supply voltage range is 2.4V-2.6V, with a typical value of 2.5V. It is ideal for applications such as medical equipment, POS systems, white goods, home applications, industrial instruments, automation, audio-visual display systems, personal care appliances, household goods, automotive displays, dynamic information displays, and more.
Features
This 3.12-inch OLED display has a faster response time of "10 microseconds at +25 °C".
This OLED 3.12 inch 256x64 product has an infinite viewing angle "up to 175 degrees".
This 3.12" Parallel, SPI OLED product features very thin thickness.
This 3.12 inch white / yellow OLED product does not need to be backlit when displayed, and it is self-illuminating.
This 3.12 inch mono OLED product has high brightness and this product has a contrast ratio of up to 2000:1.
This 3.12 OLED 256x64 product has an ultra-wide operating temperature range "-40 °C ~ 85 °C".
This SPI 3.12 inch OLEDproduct has lower power consumption - reducing CO2 emissions.
| Product: | 3.12" Inch Passive OLED |
| Resolution: | 256x64 Pixels Resolution |
| Interface: | Parallel, SPI Optional |
| Display Mode: | Passive Matrix |
| Display Color: | White, Yellow |
| Optics: | All Viewing Angles |
| Active Area: | 76.78 (W) X 19.18 (H) |
| Outline Dim.: | 88.00 (W) X27.80 (H) |
| Pixel Pitch: | 0.30 (W) X 0.30 (H) |
| Operating Temp: | -40°C To +80°C |
| Storage Temp.: | -40°C To +85°C |
| Supply Voltage: | 2.4 - 3.5V |
| Module Connecting Type: | Plug-in Connection |
| Driver IC: | SSD1322 |
| Pin Number: | 30 Pins |
| IC Package Type: | COF |
| Duty: | 1/64 |
| Compliance: | REACH & RoHS Compliant |

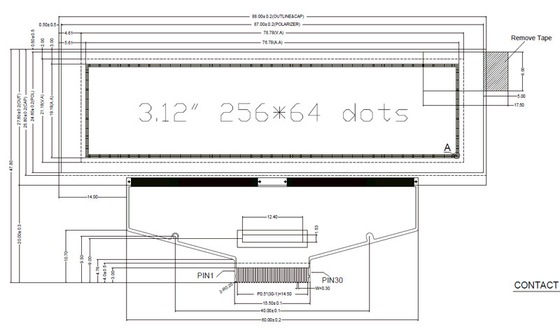

UG-5664ASWEF01 3.12" Inch 256x64 Pixels Resolution COF OLED display with SSD1322 Parallel SPI IInterface Drawing
DC Characteristics
Unless otherwise specified, Voltage referenced to VSS; VDD =2.5V, VCI =2.8V, VCC = 12.0V, IREF = 10uA,
(Ta = 22±3℃,60±10％RH)
AC Characteristics
Conditions:Voltage referenced to VSS, VDD=2.4 to 2.6VVCI=2.4 to 3.5V, TA = 25C
Note:
(1) FOSC stands for the frequency value of the internal oscillator and the value is measured whencommand B3h A[7:4] is in default value.
(2) D: divide ratio (default value = 2). K: number of display clocks per row period (default value = 138)
Please refer to (Set Display Clock Divide Ratio/Oscillator Frequency, B3h) for detail description
Electro-Optical Characteristics
All data in below based the condition (Ta = 22±3℃,60±10％RH).

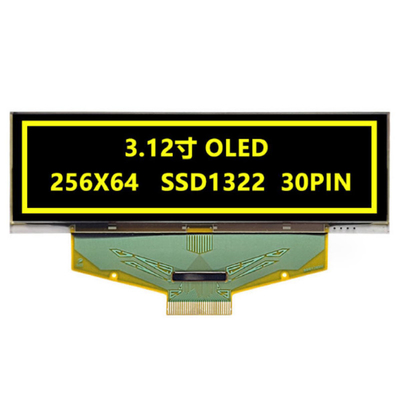

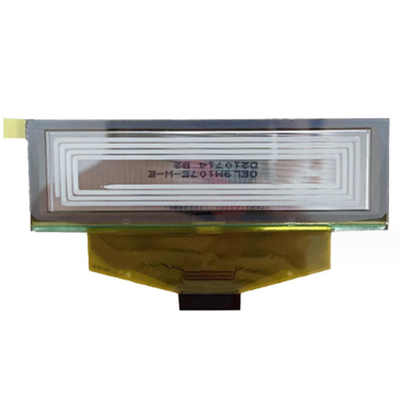

UG-5664ASWEF01 3.12" Inch 256x64 Pixels Resolution COF OLED display with SSD1322 Parallel SPI IInterface Product Image
SAEF Technology is a professional OLED Module Supplier
We provide a wide range of standard passive matrix OLED (PMOLED) / OLED dot matrix display and custom design Character OLED modules, Graphic OLED displays and OLED display panels. Mechanical structure includes Chip on Board (COB), Chip on Glass (COG), and TAB (Tape Automated Bonded) types. Customers can upgrade applications from STN LCD to OLED displays easily. SAEF OLED modules are featured with all the important advantages:
· Faster response time “At +25 ℃ 10 μsec.”
· Unlimited viewing angle “Up to 175 degree”
· Thin – No need of backlight, self emitting
· High Brightness
· High contrast ratio “Up to 10,000:1”
· Wide Operation Temperature “-40 ℃ ~ 80 ℃”
· Lower power consumption
SAEF Technology's graphic OLED display are available in three mechanical structures include COB, COG and TAB passive matrix technology. Available graphic monochrome OLED resolution in 50x16 OLED graphic display, 64x128 OLED, 100x16 OLED, 100x32 graphic OLED, 200x16 graphic OLED, OLED 128x32, OLED display 128x64, OLED 128x128, and 256x64 OLED Display. The graphic OLED display in the SAEF product range have on-board controllers and interfaces include parallel, serial, and I2C OLED, SPI OLED. These OLED display modules have driven voltages of 3V, or 5V depending on resolution/color.
SAEF offers a wide range of OLED display modules in sizes from 0.42" to 5.5" OLED, such as 0.42" micro OLED Display, 0.49" OLED Display, 0.5" OLED Display, 0.54" OLED Display, 0.66" mini OLED Display, 0.69" OLED, 0.77" OLED Display, 0.87" OLED Display module0.91" OLED Display, 0.95" OLED, 0.96" OLED Display, 1.5" OLED Display, 2" OLED , 2.4" OLED , 2.7" OLED Display, 3.12” OLED Display, 5.5" OLED Display, and custom design solutions.
