Product Details:
|
| Product: | 3.51" TFT Portrait | Touch Screen: | Capacitive Touch Panel (CTP) Optional |
|---|---|---|---|
| Resolution: | 340x800 | Viewing Direction: | IPS Full Viewing Angle(80/80/80/80) |
| Driver IC: | ST77001S | Pin Number: | 31 Pins |
| Outline Dimension: | 36.67(H) X 88.45(V) X 1.61(T) Mm | Connection: | Plugging ( Can Be Customized ) |
| Surface Luminance: | 580 Cd/m2 (nits) | Interface: | MIPI |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
| Highlight: | 3.51" IPS TFT LCD,IPS TFT LCD 340x800,MIPI IPS TFT Display |
||
3.51" Inch Portrait TFT LCD Display Screen 340x800 IPS ST7701S MIPI Interface
Portrait 3.51 inch TFT Display 340x800 Resolution Description
SF-TO351AS-8993A-N display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This LCD module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 3.51” contains 340(RGB)X800 dots and can display up to 16.7M colors.
| Product: | 3.51" TFT Portrait | Touch Screen: | Capacitive Touch Panel (CTP) Optional |
|---|---|---|---|
| Resolution: | 340x800 | Viewing Direction: | IPS Full Viewing Angle(80/80/80/80) |
| Driver IC: | ST77001S or Equivalent | Pin Number: | 31 Pins |
| Outline Dimension: | 36.67(H) X 88.45(V) X 1.61(T) mm | Connection: | Plugging ( Can Be Customized ) |
| Surface Luminance: | 580 Cd/m2 (nits) | Interface: | MIPI |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
Product Advantages
1. IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
2. Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
3. High quality level for industrial and medical applications.
4. Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
5. Price competitive solution with good quality among the same kinds in the LCD industry.
6. Easy to install and easy to maintain.
Portrait 3.51 inch TFT Display 340x800 Resolution Product Drawing
Pin Definition

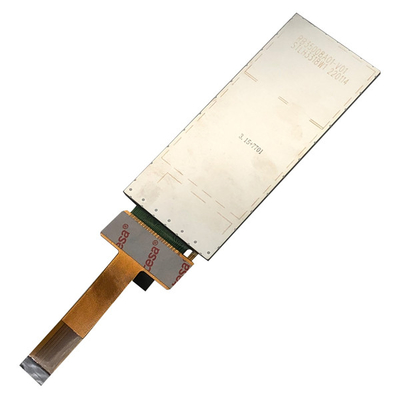

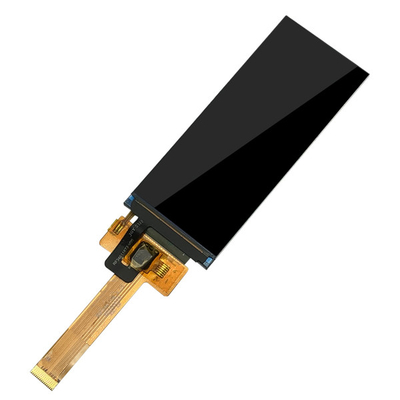

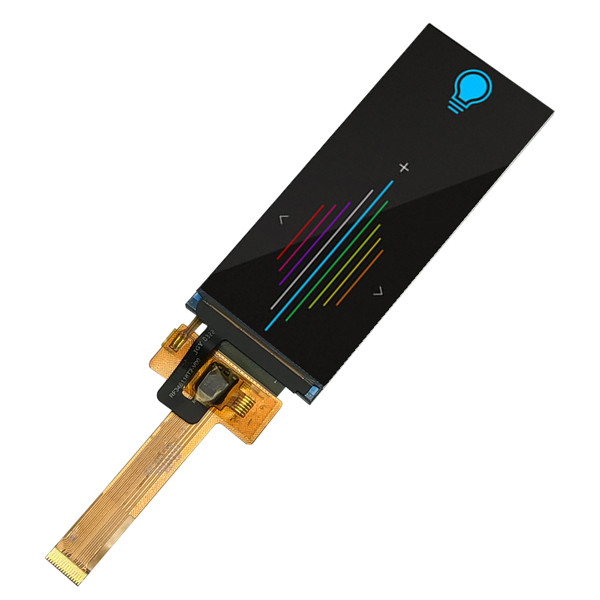

Portrait 3.51 inch TFT Display 340x800 Resolution Real Product Image
Factory Facilities and Certificates
Why Choose us
1. We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3. Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
