MIPI Interface TFT LCD Display 3.51" Inch 340x800 IPS ST7701S

Large Image : MIPI Interface TFT LCD Display 3.51" Inch 340x800 IPS ST7701S

Product Details:

Place of Origin:	ShenZhen / China
Brand Name:	SAEF
Certification:	ISO9001 / ISO14000
Model Number:	SF-TO351AS-8993A-N

Payment & Shipping Terms:

Minimum Order Quantity:	3 pcs
Price:	Negotiable based on order lot quantity
Packaging Details:	Standard Exportation Package
Delivery Time:	3-5 weeks
Payment Terms:	L/C, , T/T, Western Union
Supply Ability:	3000K pcs per month

Contact Now

MIPI Interface TFT LCD Display 3.51" Inch 340x800 IPS ST7701S

Description

Product:	3.51" TFT Portrait	Touch Screen:	Capacitive Touch Panel (CTP) Optional
Resolution:	340x800	Viewing Direction:	IPS Full Viewing Angle(80/80/80/80)
Driver IC:	ST77001S	Pin Number:	31 Pins
Outline Dimension:	36.67(H) X 88.45(V) X 1.61(T) Mm	Connection:	Plugging ( Can Be Customized )
Surface Luminance:	580 Cd/m2 (nits)	Interface:	MIPI
LED Lifetime:	40,000 Hours	Compliance:	REACH & RoHS Compliant
Highlight:	MIPI TFT LCD Display , 3.51" TFT LCD Display , 340x800 MIPI LCD display

3.51" Inch Portrait TFT LCD Display Screen 340x800 IPS ST7701S MIPI Interface

Portrait 3.51 inch TFT Display 340x800 Resolution Description

SF-TO351AS-8993A-N display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This LCD module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 3.51” contains 340(RGB)X800 dots and can display up to 16.7M colors.

Product:	3.51" TFT Portrait	Touch Screen:	Capacitive Touch Panel (CTP) Optional
Resolution:	340x800	Viewing Direction:	IPS Full Viewing Angle(80/80/80/80)
Driver IC:	ST77001S or Equivalent	Pin Number:	31 Pins
Outline Dimension:	36.67(H) X 88.45(V) X 1.61(T) mm	Connection:	Plugging ( Can Be Customized )
Surface Luminance:	580 Cd/m2 (nits)	Interface:	MIPI
LED Lifetime:	40,000 Hours	Compliance:	REACH & RoHS Compliant

Product Advantages

1.IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.

2.Excellent display performance of background color, luminance, viewing angle, and intensity, etc.

3.High quality level for industrial and medical applications.

4.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.

5.Price competitive solution with good quality among the same kinds in the LCD industry.

6.Easy to install and easy to maintain.

Portrait 3.51 inch TFT Display 340x800 Resolution Drawing

MIPI Interface TFT LCD Display 3.51" Inch 340x800 IPS ST7701S 0

MIPI Interface TFT LCD Display 3.51" Inch 340x800 IPS ST7701S 2

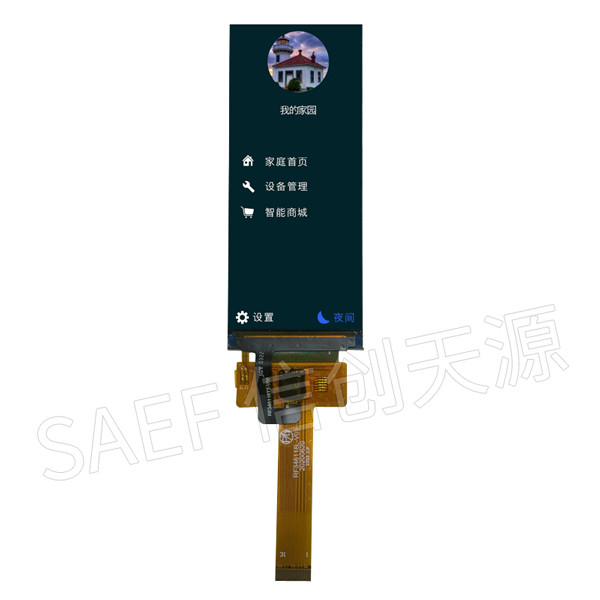

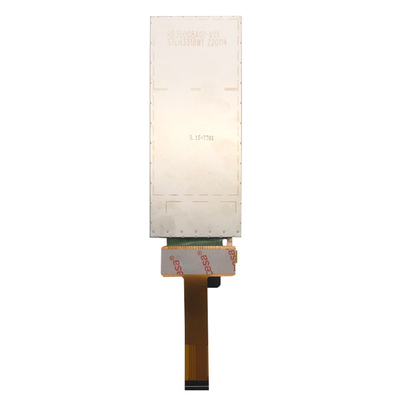

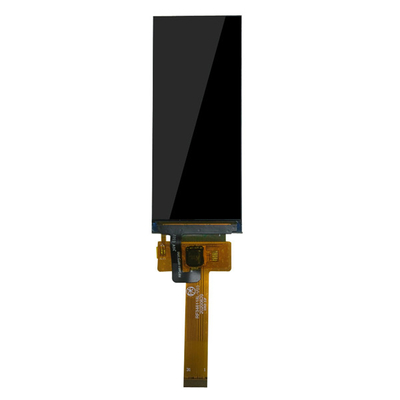

Portrait 3.51 inch TFT Display 340x800 Resolution Real Product Image
