Product Details:
|
| Keywords: | 7" Inch PCAP Touch Screen | Resolution: | 1024x600 |
|---|---|---|---|
| TFT Interface: | MIPI | CTP Interface: | I2C Interface |
| Surface Luminance: | 500 Cd/m2 | Touch Screen: | CTP( Capacitive Touch Screen) |
| Cover Glass Dimension: | Customizable | Pins: | 30 |
| Viewing Direction: | IPS All Viewing Angle(80/80/80/80) | LED Lifetime: | 40,000 Hours |
| Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
| Highlight: | 7 Inch PCAP Touch Screen,PCAP Touch Screen 1024X600,Medical 7 Inch Touch Screen |
||
7" Inch PCAP Mipi Touch Screen 1024X600 All Viewing Angles IPS For Industrial Medical Display
7" inch MIPI Interface Touch Screen Description
1, SAEF Technology SF-TO700GLTB-8976A-CT is a 7” inch IPS type full viewing angle TFT LCD Display with resolution of 1024x600 pixels. It is with Capacitive Touch Screen(CTP), and the cover glass is customizable.
2, SF-TO700GLTB-8976A-CT TFT LCD module is has outline dimension of 164.7*99*2.6 mm, and AA size of 154.21x85.92 mm.
3, SF-TO700GLTB-8976A-CT LCM interface is with MIPI interface, 30 pins. The CTP interface is I2C.
4, SF-TO700GLTB-8976A-CT touch screen is with 500cd/m2 (nits) surface brightness, it also can be designed to be 1000cd/m2 (nits). pls contact our sales person for more details.
5, This 7” TFT LCD module is widely used in measuring equipment, medical device, home automation, access security system, supermarket price tag, and household appliances, GPS device, etc.
| Keywords: | 7" Inch PCAP Touch Screen | Resolution: | 1024x600 |
|---|---|---|---|
| TFT Interface: | MIPI | CTP Interface: | I2C Interface |
| Surface Luminance: | 500 Cd/m2 | Touch Screen: | CTP( Capacitive Touch Screen) |
| Cover Glass Dimension: | Customizable | Pins: | 30 |
| Viewing Direction: | IPS All Viewing Angle(80/80/80/80) | LED Lifetime: | 40,000 Hours |
| Operating Temp.: | –20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
LCM+CTP Drawing

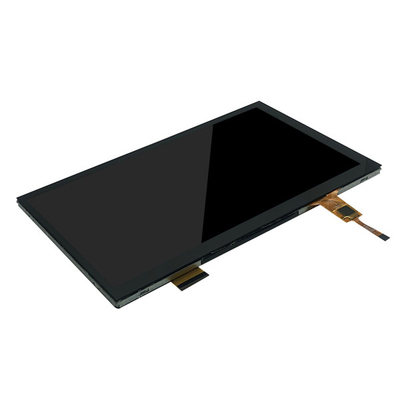

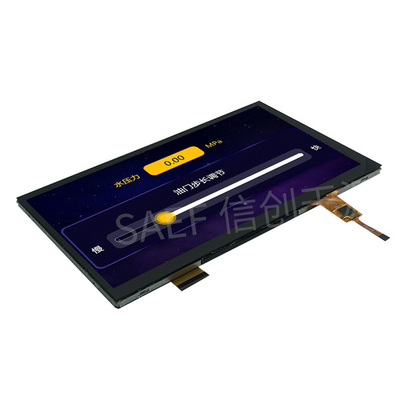

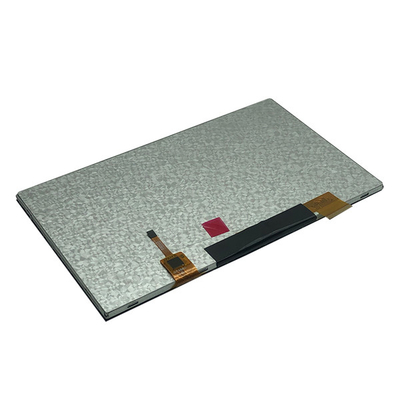

7" inch MIPI Interface Touch Screen Real Product Photo
SIMILAR PRODUCTS PROPOSED FOR YOUR DESIGN
|
SIZE |
DETAIL |
OUR P/N |
|
7 inch |
800x480 Landscape type, with control board |
SF-TC700I-9239C-T |
|
7 inch |
1024x600 Landscape type, with or without CTP, RGB interface |
SF-TC700B-8619A-N/CT |
|
7 inch |
1024x600 Landscape type, with or without CTP, MIPI interface |
SF-TO700B-8857A-N/CT |
|
7 inch |
1024x600 Landscape type, with or without CTP, RGB interface |
SF-TO700B-8834A-CT |
