Product Details:
|
| Product: | 3.5" Inch IPS TFT LCD Display Module | Resolution: | 320x480 |
|---|---|---|---|
| Touch Screen: | Touch Panel (RTP And CTP Optional) | Cover Glass Dimension: | Customizable |
| Viewing Direction: | All Viewing Angle(80/80/80/80) | Interface: | RGB/MCU/SPI |
| Pin Number: | 45 Pins | Connection: | FPC Plugging |
| Surface Luminance: | 300 Cd/m2 (nits) | LED Lifetime: | 40,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 | Compliance: | Rohs & Reach Compliant |
| Highlight: | 3.5 Inch TFT LCD Display Module,HVGA TFT LCD Display Module,320x480 TFT LCD Display Module |
||
3.5" Inch TFT LCD Display Module 320x480 HVGA IPS Full Viewing Angle With RGB/MCU/SPI Interface Product Introduction
Saef Tech SF-TC350B-8941A-T is a diagonal size 3.5 inch TFT-LCD module with resolution HVGA 320x480 pixels. This module is built in with ILI9488 IC; it supports RGB/MCU/SPI multi-interface, supply voltage (Vdd) range from 2.6V to 3.3V. This module is IPS type with full View Angle 80/80/80/80.
SF-TC350B-8941A-T TFT-LCD module is portrait mode with brightness 300 nits. The module also is available for with or without Resistive Touch Screen. SF-TC350B-8941A-T can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
| Product: | 3.5" Inch IPS TFT LCD Display Module |
| Resolution: | 320x480 |
| Touch Screen: | Touch Panel (RTP And CTP Optional) |
| Cover Glass Dimension: | Customizable |
| Viewing Direction: | All Viewing Angle(80/80/80/80) |
| Interface: | RGB/MCU/SPI |
| Connection: | FPC Plugging |
| LED Lifetime: | 40,000 Hours |
| Pin Number: | 45 Pins |
| Surface Luminance: | 300 Cd/m2 (nits) |
| Interface: | RGB/MCU/SPI |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | Rohs & Reach Compliant |
3.5" Inch TFT LCD Display Module 320x480 HVGA IPS Full Viewing Angle With RGB/MCU/SPI Interface Product Drawing ( without Touch )
(with CTP )

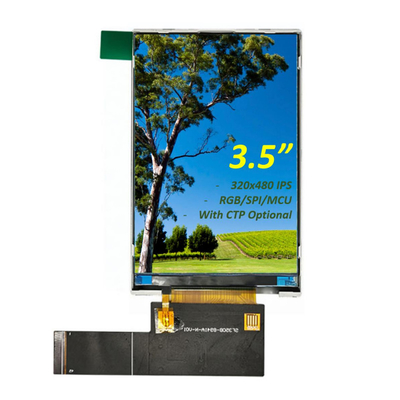

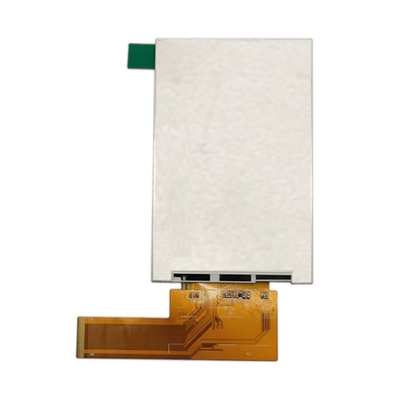

3.5" Inch TFT LCD Display Module 320x480 HVGA IPS Full Viewing Angle With RGB/MCU/SPI Interface Product Image
Factory Facilities and Certifications
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The SAEF
technology projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
