Product Details:
|
| Product: | 3.4" Inch Round TFT LCD | Touch Screen: | Capacitive Touch Panel (CTP) |
|---|---|---|---|
| Resolution: | 800x800 | Viewing Direction: | IPS Full Viewing Angle |
| Driver IC: | ILI9881C | Pin Number: | 39 Pins |
| Connection: | FPC Connector Type | Surface Luminance: | 350 Cd/m2 (nits) |
| CTP Driver IC:: | HX8526-E30 | Interface: | MIPI |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
| Highlight: | MIPI TFT LCD display module,800x800 TFT LCD display module |
||
3.4" 800x800 Round TFT LCD, PCAP 3.4" Circular LCD Description
SAEF TECHNOLOGY SF-TO340B-8978A-CT is a diagonal size 3.4”inch round shape IPS type TFT LCD Display with resolution 800x800 pixels.
Product Quick Details:
1. LCD Size: 3.4” inch TFT
2. Resolution: 800x800
3. Viewing Angle: All
4. Outline Dimension: 96.6x99.0x3.98 mm
5. LCD Driver IC: ILI9881C
6. LCD Interface Type: MIPI
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: Capacitive Touch Screen(CTP)
9. CTP Structure: G+F+F
10. CTP Driver IC: HX8526-E30
11. LCM Interface: MIPI 3 lane
12. CTP Interface: IIC
13.LCM Matched Connector: FH26W-39S-0.3SHW
14. CTP Matched Connector: OK-22F010-04
| Product: | 3.4"inch TFT | Touch Screen: | Capacitive Touch Panel (CTP) |
|---|---|---|---|
| Resolution: | 800x800 | Viewing Direction: | IPS Full Viewing Angle |
| Driver IC: | ILI9881C | Pin Number: | 39 Pins |
| Connection: | FPC Connector Type | Surface Luminance: | 350 Cd/m2 (nits) |
| Interface: | MIPI | LED Lifetime: | 40,000 Hours |
| CTP Driver IC:: | HX8526-E30 | Compliance: | REACH & RoHS Compliant |
Why Choose us
1．We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2．Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3．Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4．Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.
3.4" 800x800 Round TFT LCD, PCAP 3.4" Circular LCD Drawing

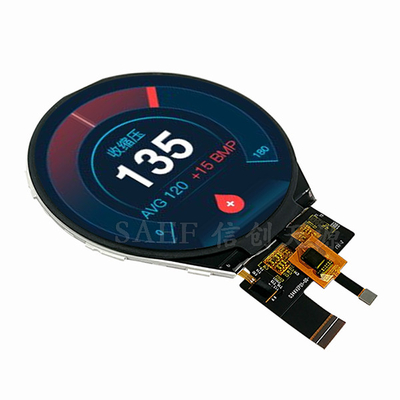

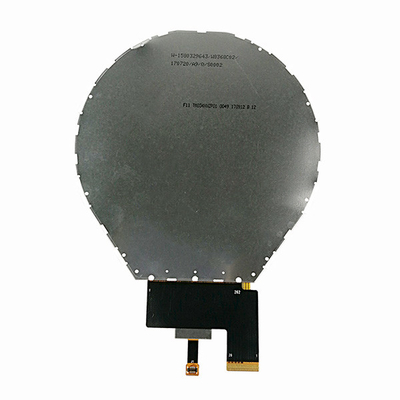

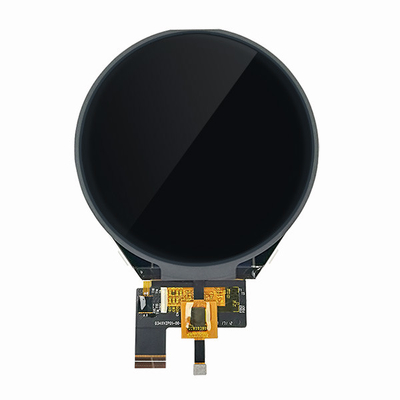

3.4" 800x800 Round TFT LCD, PCAP 3.4" Circular LCD Product Image
