Product Details:
|
| Product: | 3" Inch IPS TFT Touch Screen | Resolution: | 240x400 Pixels |
|---|---|---|---|
| Viewing Direction: | IPS All Viewing Angles | Touch Screen: | With PCAP Touch Screen |
| Cover Lens: | Customizable | Surface Luminance: | 300 Cd/m2 ( Customizable) |
| Interface: | MCU 8/16 Bits | Pin Number: | 40 Pins |
| Connection: | Plugging / ZIF ( Customizable) | Driver IC: | S6D04D1 |
| Operating Temp.: | -20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
| Highlight: | 240x400 TFT LCD Touch Screen,PCAP TFT LCD Touch Screen,3 Inch TFT LCD Touch Screen |
||
3 inch IPS TFT PCAP Touch Screen 240x400 Resolution Product Description
Product Quick Review
►Model No. SF-TC300D-8974A-CT
►Size: 3"
►Resolution: 240×400 dots
►View Direction: IPS
►Interface: MCU 8 bits and 16 bits interface
►Driver IC:S6D04D1
►Control-Board: No
►Brightness(cd/m²): 300
►Frame Through Hole: No
►Touch Screen: With Capacitive Touch Screen
Description
SAEF TECHNOLOGY SF-TC300D-8974A-CT is a 3 inch full TFT-LCD display with 240x400 resolution (240 horizontal by 400 vertical pixels array). This model supports MCU 8 bits and 16 bits interface; the supply voltage (VCC) of driving LCD panel is from is 2.5V to 3.3V. Typical value is 2.8V. It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.
SF-TC300D-8974A-CT is a IPS-LCD type TFT with brightness 300 cd/m2 (typical value). the brightness can be customized achieving 1000 nits. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
Features
| Product: | 3" Inch IPS TFT Touch Screen |
| Resolution: | 240x400 Pixels |
| Touch Screen: | With PCAP Touch Screen |
| Surface Luminance: | 300 Cd/m2 ( Customizable) |
| Pin Number: | 40 Pins |
| Driver IC: | S6D04D1 |
| Viewing Direction: | IPS All Viewing Angles |
| Cover Lens: | Customizable |
| Interface: | MCU 8/16 Bits |
| Connection: | Plugging / ZIF ( Customizable) |
| Operating Temp.: | -20℃ To +70℃ |
| Compliance: | REACH & RoHS Compliant |
3 inch IPS TFT PCAP Touch Screen 240x400 Resolution Product Drawing
Pin Definition
Pin1 GND Ground
Pin2 A BL LED A
Pin3 K BL LED K
Pin4 GND Ground
Pin5 RESET Reset signal.
Pin6 VDD System power2.8-3.3V
Pin7 VDD System power2.8-3.3V
Pin8 IM1 IM1=0,8-bit. IM1=1,16-bit.
Pin9-Pin16 D7-0 MCU L8 bit Data bus
Pin17 CS Chip select signal.
Pin18 RS System power1.8-3.3V
Pin19 WR Write enable
Pin20 RD Read enable Low-active.
Pin21 GND Ground
Pin22-Pin29 D15-8 MCU H8 bit Data bus GND
Pin30 GND Ground
Pin31 TEFrame head pulse signal, which is used whenwriting data to theinternal RAM. OPEN
Pin32-40 NC Dummy

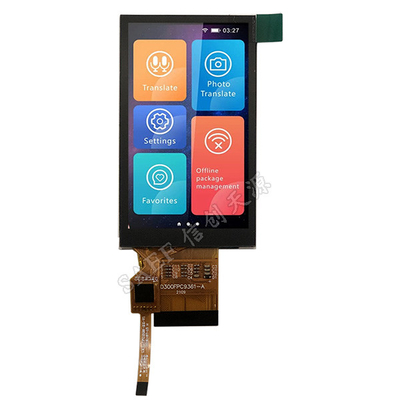

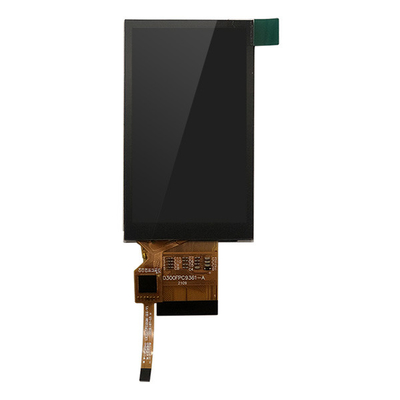

3 inch IPS TFT PCAP Touch Screen 240x400 Resolution Product Image
