MCU Interface IPS TFT LCD 2.6" inch 480x320 landscape mode with RTP

MCU Interface IPS TFT LCD 2.6" inch 480x320 landscape mode with RTP
MCU Interface IPS TFT LCD 2.6" inch 480x320 landscape mode with RTP MCU Interface IPS TFT LCD 2.6" inch 480x320 landscape mode with RTP MCU Interface IPS TFT LCD 2.6" inch 480x320 landscape mode with RTP

Large Image :  MCU Interface IPS TFT LCD 2.6" inch 480x320 landscape mode with RTP

Product Details:
Place of Origin: ShenZhen / China
Brand Name: SAEF
Certification: ISO9001 / ISO14000
Model Number: SF-TC260T-9954A-T
Payment & Shipping Terms:
Minimum Order Quantity: 3 pcs
Price: Negotiable based on order lot quantity
Packaging Details: Standard Exportation Package
Delivery Time: 1-5 weeks
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000K pcs per month
Contact Now

MCU Interface IPS TFT LCD 2.6" inch 480x320 landscape mode with RTP

Description
Product: 2.6" Inch TFT LCD Display Touch Screen: Resistive Touch Panel (RTP)
Resolution: 480x320 Viewing Direction: IPS Full Viewing Angle(80/80/80/80)
Driver IC: R61531 Pin Number: 40 Pins
Connection: FPC Connector Type Surface Luminance: 240 Cd/m2 (nits)
Interface: MCU LED Lifetime: 40,000 Hours
Operating Temp。: -10℃ To +60℃ Compliance: REACH & RoHS Compliant
Highlight:

IPS TFT LCD 2.6"

,

IPS TFT LCD 480x320

,

Landscape TFT 480x320

2.6" inch TFT LCD display IPS 480x320 Pixels landscape mode Product Introduction

Saef Tech SF-TC260T-9954A-T is a diagonal size 2.6 inch IPS type TFT LCD Display. This 2.6 inch TFT LCD module is designed with Resistive Touchscreen.

Product Quick Details:
1. LCD Size: 2.6” inch TFT
2. Resolution: 480x320
3. Viewing Angle: Free Viewing Angle
4. Outline Dimension: 59.60x47.3x3.4 mm
5. LCD Driver IC: R61531
6. LCD Interface Type: MCU
7. Temperature: Top -10°C to +60°C; Tst -20°C to +70°C
8. Touch Panel: Resistive Touch Screen

Product Features:
1. SF-TC260T-9954A-T  is TFT LCD module is a 2.6 inch diagonal size, 480x320, full color TFT LCD display with Resistive Touch Screen (RTP).
2. This module supports MCU Interface. SF-TC260A-9954A-T model is having module dimension of 59.60x47.3 mm and Active area size of 55.61 x 37.27 mm;
3. SF-TC260T-9954A-T is integrated with R61531 controller on module, and its logic supply voltage ranges from 2.6V to 3.3V.
4. It can be operating at temperatures from -10℃ to +60℃; its storage temperatures range from -20℃ to +70℃.
5. SF-TC260T-9954A-T is landscape mode LCD module, with 250 cd/m2 luminance. If you would like to use it as portrait mode or increase the luminance, please contact with us for more technical support.
6. SF-TC260T-9954A-T FPC can be customized, and optional to be with or without Resistive Touch Screen (RTP).

Product Information:

Product: 2.6" Inch TFT LCD Display Touch Screen: Resistive Touch Panel (RTP)
Resolution: 480x320 Viewing Direction: IPS Full Viewing Angle(80/80/80/80)
Driver IC: R61531 Pin Number: 40 Pins
Connection: FPC Connector Type Surface Luminance: 240 Cd/m2 (nits)
Interface: MCU LED Lifetime: 40,000 Hours
Operating Temp.: -10℃ To +60℃ Compliance: REACH & RoHs Compliant



2.6" inch TFT LCD display IPS 480x320 Pixels landscape mode Product Drawing




MCU Interface IPS TFT LCD 2.6" inch 480x320 landscape mode with RTP 0MCU Interface IPS TFT LCD 2.6" inch 480x320 landscape mode with RTP 1



Pin Definition:

Pin NO. Symbol I/O Description
1 YU I/O Touch Panel input signal
2 XL I/O Touch Panel input signal
3 YD I/O Touch Panel input signal
4 XR I/O Touch Panel input signal
5 GND P Ground
6 IOVCC P Power Supply 2.8V/1.8V Voltage
7 VCI P Power Supply2.8V Voltage
8 IM0 I 8BIT/16BIT SELECTION
9 GND P Ground
10 RESET I LCM Reset input signal
11 CS I Input pin for chip selection signal
12 RS I Command/data select signal.
13 GND P Ground
14 WR I Write strobe signal
15 RD I Read strobe signal.
16~31 DB0-DB15 I/O Data Signal
32 GND P Ground
33 LED_A P LED Anode
34 LED_K1 P LED Cathode
35 LED_K2 P LED Cathode
36 LED_K3 P LED Cathode
37 LED_K4 P LED Cathode
38 LED_K5 P LED Cathode
39 LED_K6 P LED Cathode
40 GND P Ground

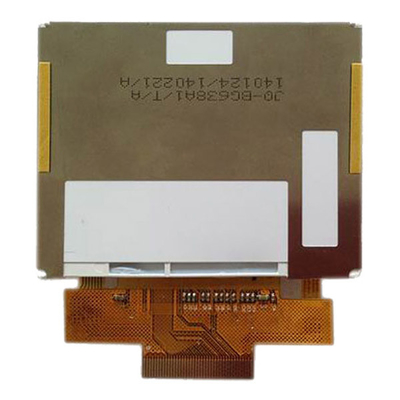

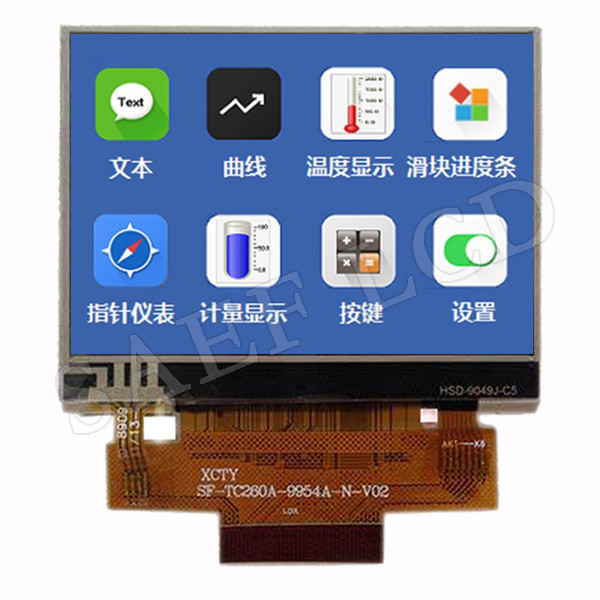

2.6 inch TFT LCD display IPS 480x320 Pixels landscape mode Product Image

MCU Interface IPS TFT LCD 2.6" inch 480x320 landscape mode with RTP 2MCU Interface IPS TFT LCD 2.6" inch 480x320 landscape mode with RTP 3MCU Interface IPS TFT LCD 2.6" inch 480x320 landscape mode with RTP 4



Search keyword: tft 2.6, tft 2.6", 2.6 tft lcd, 2.6" tft lcd, 2.6 inch tft lcd, tft lcd 2.6, 2.6 tft display, 2.6" tft display, 2.6 inch tft display, tft display 2.6, tft display 2.6", 2.6 inch tft screen, 2.6" tft screen, 2.6 inch tft screen, tft screen 2.6, TFT screen 2.6 inch, TFT screen 2.6", 2.6 inch tft, 2.6" inch TFT lcd, 2.6" inch tft lcd screen, 2.6" tft screen, 2.6" tft lcd display, tft lcd display 2.6".
