Product Details:
|
| Product: | 2.8" Inch TFT LCD Display | Resolution: | 480x640 Dots |
|---|---|---|---|
| Driver IC: | ILI9806E, Or ST7701 Or Equivalent | Touch Screen: | Without Touch Screen (Customizable) |
| Cover Glass Dimension: | Customizable | Viewing Direction: | Free(80/80/80/80) |
| Outline Dim.: | 50(W) X 69.2(L) X 2.35(T) Mm | Active Area: | 43.20 X 57.60 Mm |
| Interface: | RGB (customizable） | Connection: | FPC Connector Type |
| Pin Number: | 40 Pins (customizable） | Surface Luminance: | 260 Cd/m2(nits) |
| Supply Voltage: | 3.2 V | Backlight Type: | White LED |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
| Highlight: | 480x640 High Resolution TFT,2.8 Inch High Resolution TFT,2.8 Inch LCD TFT Display |
||
2.8" TFT 480x640, TFT LCD 2.8 inch Description
SF-TO280PY-8990B-N TFT LCD module is a 2.8” inch diagonal size portrait mode 480x640 high resolution full color display, SF-TO280PY-8990B-N LCD module supports RGB Interface. The interface is customizable. SF-TO280PY-8990A-N model is having module dimension of 50(W) x 69.2(L) x 2.35(T) mm and active area size of 43.20 x 57.60 mm.
SF-TO280PY-8990B-N is integrated with ILI9806E, or ST7701 or Equivalent driver IC controller on module, and its logic supply voltage ranges from 2.6V to 3.4V. typical value is 3.2V. The surface luminance is 260 cd/m2 (Nits). This model has operating temp at -20 to 70 degree, and storage temp at -30 to 80 degree.
The model has been widely used in POS terminal, cash reader, embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.
Features
| Product: | 2.8" Inch TFT LCD Display | Resolution: | 480x640 Dots |
|---|---|---|---|
| Driver IC: | ILI9806E, Or ST7701 | Touch Screen: | Without Touch Screen |
| Cover Glass | Customizable | Viewing Direction: | Free(80/80/80/80) |
| Outline Dim.: | 50(W) X 69.2(L) X 2.35(T) mm | Active Area: | 43.20 X 57.60 mm |
| Interface: | RGB (customizable) | Connection: | FPC Connector Type |
| Pin Number: | 40 Pins (customizable) | Surface Luminance: | 260 Cd/m2(nits) |
| Supply Voltage: | 3.2 V | Backlight Type: | White LED |
| LED Lifetime: | 40,000 Hours | Compliance: | REACH & RoHS Compliant |
Pin Definition
| PinNo. | Symbol | Function |
| 1 | LED- | LED back light(Cathode) |
| 2 | LED+ | LED back light(Anode) |
| 3 | GND | Ground |
| 4 | VDD | Power Supply. 2.8V |
| 5-12 | DB0-DB7(B0-B7) | RGB blue data |
| 13-20 |
DB8-DB15(G0-G7) |
RGB green data |
| 21-28 |
DB16-DB23(R0-R7) |
RGB red data |
| 29 | GND | Ground |
| 30 | PCLK | Dot clock signal for RGB interface operation |
| 31 | VDD | Power Supply. 2.8V |
| 32 | HSYNC | Line synchronizing signal for RGB interface operation |
| 33 | VSYNC | Frame synchronizing signal for RGB interface operation |
| 34 | DE | Data enable signal for RGB interface operation |
| 35 | NC | NC |
| 36 | GND | Ground |
| 37 | CS | Chip select input pin |
| 38 | RESET | External reset input. |
| 39 | SCL | SPI interface clock |
| 40 | SDA | Serial input signal |
2.8" TFT 480x640, TFT LCD 2.8 inch Drawing

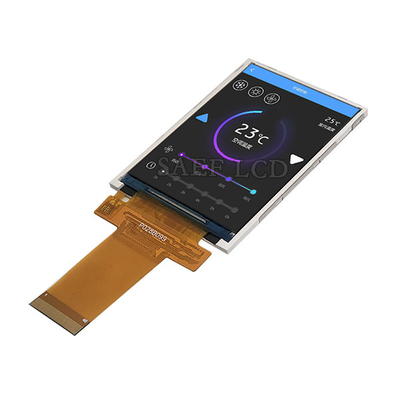

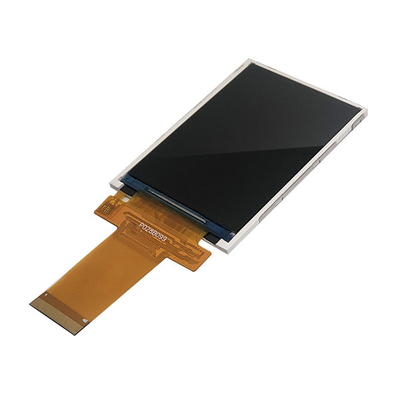

2.8" TFT 480x640, TFT LCD 2.8 inch Product Image
