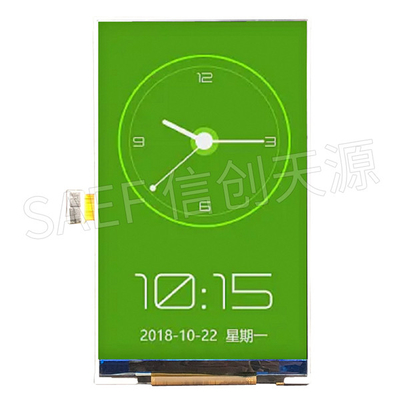

4 inch TFT LCD Display DSI MIPI 480x800 IPS 2.8V REACH RoHS Certificate

Large Image : 4 inch TFT LCD Display DSI MIPI 480x800 IPS 2.8V REACH RoHS Certificate

Product Details:

Place of Origin:	ShenZhen / China
Brand Name:	SAEF
Certification:	ISO9001 / ISO14000
Model Number:	SF-TC397B-8275A-N

Payment & Shipping Terms:

Minimum Order Quantity:	3 pcs
Price:	Price Negotiable
Packaging Details:	Standard Exportation Package
Delivery Time:	3-5 weeks
Payment Terms:	L/C, , T/T, Western Union
Supply Ability:	3000K pcs per month

Contact Now

4 inch TFT LCD Display DSI MIPI 480x800 IPS 2.8V REACH RoHS Certificate

Description

Product:	IPS TFT LCD 3.97"	Resolution:	480x800 Dots
Driver IC:	NT35512SH Or Equivalent	Outline Dim.:	57.14 X 96.85 X 1.95 Mm
Touch Screen:	Without	Cover Glass Dimension:	Customizable
Viewing Direction:	All Viewing Angles (IPS)	Interface:	MIPI Interface
Connection:	Connector Type	Pin Number:	24 Pins
Surface Luminance:	420 Cd/m2(nits)	Backlight Type:	White LED
LED Lifetime:	40,000 Hours	Compliance:	REACH & RoHS Compliant
Highlight:	3.97 Inch TFT LCD Display REACH , RoHS 480x800 TFT LCD Display , REACH Display TFT LCD 480x800

4" Inch TFT DSI MIPI 480x800 IPS LCD Display Module NT35512SH 2.8V

3.97" Inch 480x800 TFT LCD Description

SF-TC397B-8275A-N TFT LCD module is a 3.97” inch diagonal size portrait mode 480x800 full color display. This module is integrated with NT35512 controller on module and it supports MIPI interface. SF-TC397B-8275A-N model is having module dimension of 57.14 x 96.85 x 1.95 mm and active area size of 51.84 x 86.4 mm. SF-TC397B-8275A-N the model has been widely used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.

Product:	IPS TFT LCD 3.97"	Resolution:	480x800 Dots
Driver IC:	NT35512SH Or Equivalent	Outline Dim.:	57.14 X 96.85 X 1.95 mm
Touch Screen:	Without	Cover Glass Dimension:	Customizable
Viewing Direction:	All Viewing Angles (IPS)	Interface:	MIPI Interface
Connection:	Connector Type	Pin Number:	24 Pins
Surface Luminance:	420 Cd/m2(nits)	Backlight Type:	White LED
LED Lifetime:	40,000 Hours	Compliance:	REACH & RoHS Compliant

Pin Definition

Pin1, MIPI_TCN, DSI-CLK- clock signals.

Pin2, MIPI_TCP, MIPI_TCP.

Pin3, GND, GROUND.

Pin4, MIPI_TDN0, DSI-D0- data signals.

Pin5, MIPI_TDP0, DSI-D0+ data signals

Pin6, GND , GROUND.

Pin7, MIPI_TDP1, DSI-D1+ data signals.

Pin8, MIPI_TDN1, DSI-D1- data signals.

Pin9, GND, GROUND.

Pin10, NC

Pin11, NC

Pin12, GND, GROUND.

Pin13, NC

Pin14, NC

Pin15, GND, GROUND.

Pin16, VDD18_PMU, Power Supply 1.8V-2.8V

Pin17, NC

Pin18, LRSTB, LCM reset input

Pin19, NC

Pin20, LPTE, Tearing effect output

Pin21, VDD28_PMU, Power Supply 2.8V.

Pin22, GND, GROUND

Pin23, VLED_P, LED Anode.

Pin24, VLED_N, LED Cathode

4" Inch 480x800 TFT LCD Drawing

4 inch TFT LCD Display DSI MIPI 480x800 IPS 2.8V REACH RoHS Certificate 0

4 inch TFT LCD Display DSI MIPI 480x800 IPS 2.8V REACH RoHS Certificate 1

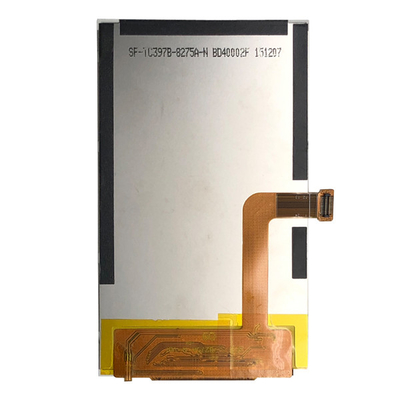

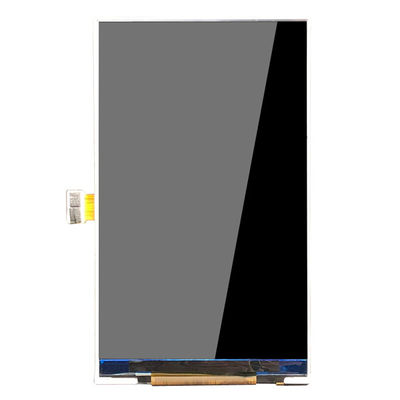

4" Inch 480x800 TFT LCD Real Product Image

4 inch TFT LCD Display DSI MIPI 480x800 IPS 2.8V REACH RoHS Certificate 2

Factory Facilities and Certificates

4 inch TFT LCD Display DSI MIPI 480x800 IPS 2.8V REACH RoHS Certificate 5

Search keyword: tft 3.97", 3.97 tft lcd, 3.97" tft lcd, 3.97 inch tft lcd, tft lcd 3.97, 3.97 tft display, 3.97" tft display, 3.97 inch tft display, tft display 3.97 inch, tft display 3.97", 3.97 inch tft lcd display, 3.97" tft screen, 3.97 inch tft screen, tft screen 3.97 inch, tft screen 3.97", 3.97 inch tft lcd screen, WVGA TFT, 3.97 inch WVGA, 3.97 inch 480x800, NT35512 TFT.
