Product Details:
|
| Product: | 16x4 Character LCD | Characters / Columns: | 16 Characters X 4 Lines |
|---|---|---|---|
| LCD Type: | STN, Positive/Negative, Transmissive | Backlight Color: | White, Blue, Yellow, Red, Green |
| Operating Voltage: | 5V, 3V Optional | Optics: | 6:00 O'clock |
| Outline Dim.: | 87.0(L) X 60.0(W) X 11.0(T) Mm | Viewing Area: | 62.0(L) X 25.5(W) Mm |
| Driving Method: | 1/16 Duty, 1/5 Bias | Operating Temp: | -20°C To +70°C |
| Pin Number: | 16 Pins | Controller: | SPLC780D Or Equivalent |
| Interface: | 8 Bits MPC | Compliance: | REACH & RoHS Compliant |
| Highlight: | Alphanumeric Character LCD Display,5V Character LCD Display,LED 16x4 lcd display |
||
16x4 Alphanumeric Character STN LCD Display Module 5V With LED Backlight
Character LCD Display 16x4, Display LCD 16x4 Description
SF1604AB is 16x4 Character LCD display module which is built in with SPLC780D controller IC; its default interface is 8-bit parallel and 5V or 3.3V power supply option. This 16x4 LCD display SF1604AB is available for no backlight or with White LED backlight options. SF1604AB 16x4 LCM is available in various LCD panel colors including gray, yellow/green and blue LCD options and it can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃, its built in character set supports English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) options.
Pin Definition:
Pin1 VSS Ground (0V)
Pin2 VDD Supply Voltage for Logic (+5.0V )
Pin3 VO Contrast Adjustment
Pin4 RS Data/Instruction Select
Pin5 R/W Read/Write Select
Pin6 E Enable Signal
Pin7~14 DB0-DB7 DATA Bus
Pin15 LED A LED Power Supply + (5.0V)
Pin16 LED K LED Power Supply - (0V)
| Product: | 16x4 Character LCD | Characters / Columns: | 16 Characters X 4 Lines |
|---|---|---|---|
| LCD Type: | STN, Positive/Negative, Transmissive | Backlight Color: | White, Blue, Yellow, Red, Green |
| Operating Voltage: | 5V, 3V Optional | Optics: | 6:00 O'clock |
| Outline Dim.: | 87.0(L) X 60.0(W) X 11.0(T) mm | Viewing Area: | 62.0(L) X 25.5(W) mm |
| Driving Method: | 1/16 Duty, 1/5 Bias | Operating Temp: | -20°C To +70°C |
| Pin Number: | 16 Pins | Controller: | SPLC780D Or Equivalent |
| Interface: | 8 Bits MPC | Compliance: | REACH & RoHS Compliant |
The standard character display resolution includes 8x2 LCD,16x1 LCD,16x2 LCD,16x4 LCD,20x2 LCD,20x4 LCD,24x2 LCD,40x2 LCD,40x4 LCD character LCD display. Character LCD modules are available in COB and COG types with different interfaces in 8080,SPI,I2C.LCD character display modules are in STN/FSTN/FFSTN LCD displays with different LED backlight in Yellow-Green, White and Blue color. The character module font options are English/Japanese, European, eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic. We offer character displays with 5V operating voltage as standard and 3V or 3.6V options are also available by request.
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.
16x4 Alphanumeric Character STN LCD Display Module 5V With LED Backlight
Character LCD Display 16x4, Display LCD 16x4 Drawing

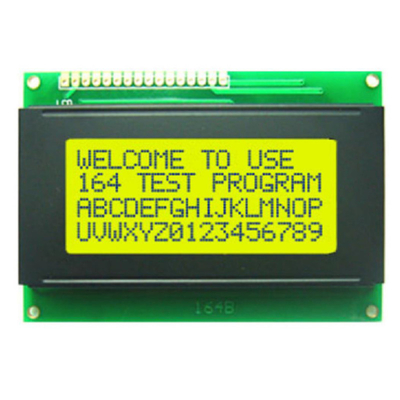

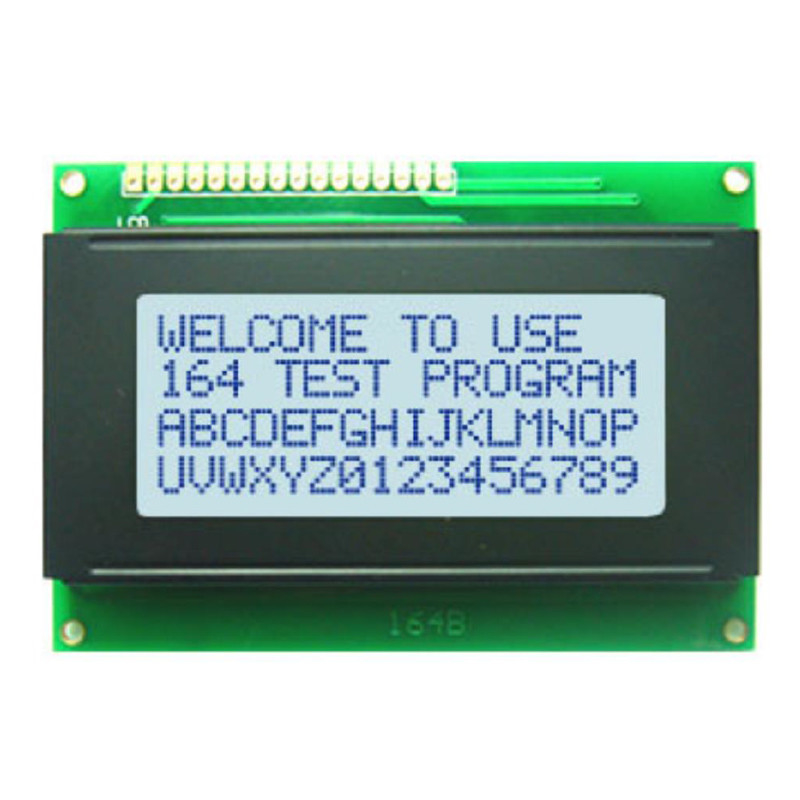

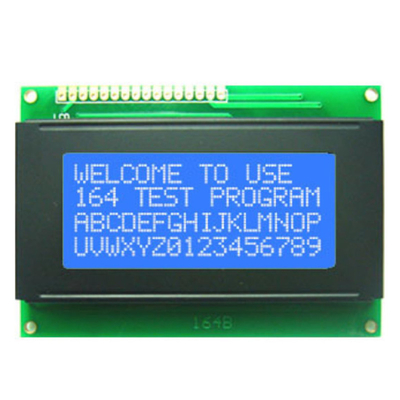

Character LCD Display 16x4, Display LCD 16x4 Real Product Image
