Product Details:
|
| Product: | 16x2 I2C 5V Arduino LCD | Characters / Columns: | 16 Characters X 2 Lines |
|---|---|---|---|
| Pin Number: | 4 Pins (GND, VCC, SDA, SCL) | Interface: | I2C Interface |
| LCD Type: | STN, Negative (Blue), Transmissive | Backlight Color: | White, Blue, Yellow, Red, Green, Purple And Amber |
| Operating Voltage: | 5V, 3V Optional | Optics: | All Viewing Angles |
| Outline Dim.: | 80.0(L) X 36.0(W) X 13(T) Mm | Viewing Area: | 64.5.0(L) X 13.8(W) Mm |
| Driving Method: | 1/16 Duty, 1/5 Bias | Operating Temp: | -20°C To +70°C ( Customizable ) |
| Controller: | SPLC780D + PCF8574 | Compliance: | REACH & RoHS Compliant |
| Highlight: | I2C 16x2 Character LCD Display,Blue 16x2 Character LCD Display,5V character lcd 16x2 |
||

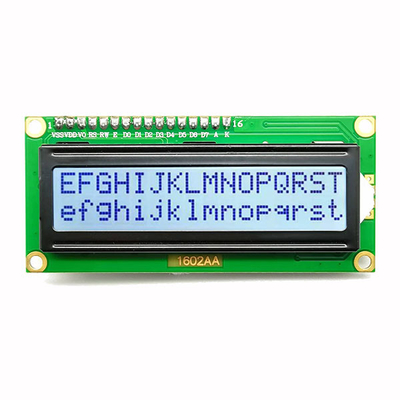

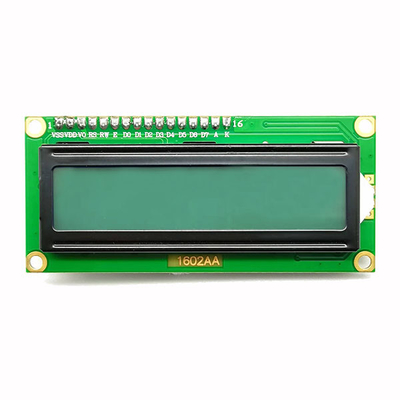

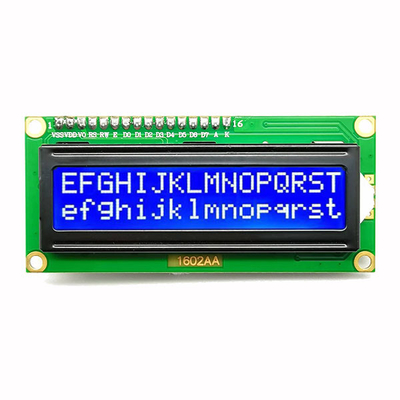

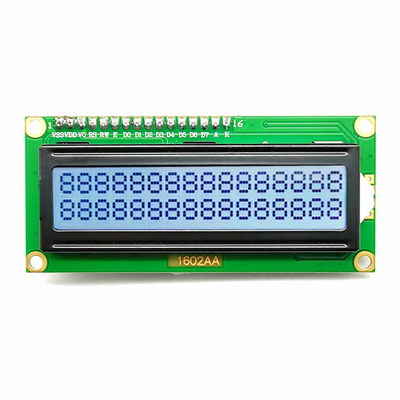

16x2 I2C Blue 5V LCD, 16x2 Character LCD for Arduino and Raspberry Pi Description
SF1602YB01-I2C is a 16 character by 2 line LCD display with a blue background. This model 16x2 Alphanumic LCD is with outline dimension of 80 x 36 mm.

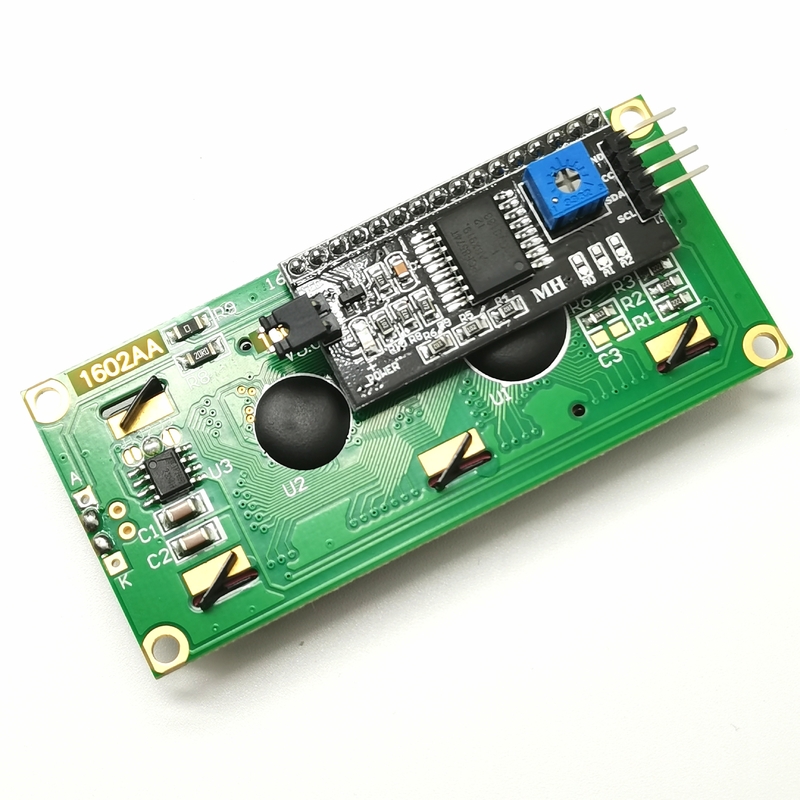

Components: LCD display with i2c serial interface backpack; LCD screen can display 2-lines x 16-characters; The i2c LCD adapter built-in industry standard equivalent LCD controller Default Address: 0 x 27 for PCF8574T chip; 0 x 3F for PCF8574T chip; Please kindly check the chip of the i2c interface; ( Please remember to download the Liquid Crystal I2C library on GitHub before uploading the code to the control board).
Good function: The LCD with I2C port greatly enriches the human-computer interaction functions, and when they are connected to the controller, the controller without too many external ports will not occupy multiple IOs, and will not restrict other functions of the controller. It has only two bidirectional data lines, a serial data line and a serial clock.
Compatibility: LCD display with I2C serial interface is compatible with for Arduino and Raspberry pi; Working voltage: 5V optional 3.3V; To come with a potentiometer, which is applied to adjust backlight and contrast; How to wire: GND—GND; VCC—VCC; SDA—A4; SCL—A5
Application: LCD module is applied to display characters, letters, numbers, real time clock and temperature.
Display function: LCD display with I2C serial interface can be applied to display real time clock, temperature, humidity and so on; (A potentiometer is also necessary to adjust the contrast ).
Pin Definition: GND; VCC; SDA; SCL
| Product: | 16x2 I2C 5V Arduino LCD | Characters / Columns: | 16 Characters X 2 Lines |
|---|---|---|---|
| Pin Number: | 4 Pins (GND, VCC, SDA, SCL) | Interface: | I2C Interface |
| LCD Type: | STN, Negative (Blue), Transmissive | Backlight Color: | White, Blue, Yellow, Red, Green, Purple And Amber |
| Operating Voltage: | 5V, 3V Optional | Optics: | All Viewing Angles |
| Outline Dim.: | 80.0(L) X 36.0(W) X 13(T) mm | Viewing Area: | 64.5.0(L) X 13.8(W) mm |
| Driving Method: | 1/16 Duty, 1/5 Bias | Operating Temp: | -20°C To +70°C |
| Controller: | SPLC780D + PCF8574 | Compliance: | REACH & RoHS Compliant |
16x2 I2C Blue 5V LCD, 16x2 Character LCD for Arduino and Raspberry Pi Description
16x2 I2C Blue 5V LCD, 16x2 Character LCD for Arduino and Raspberry Pi Description
