Product Details:
|
| Product: | VATN Alphanumeric 20x2 Character LCD | Characters / Columns: | 20 Characters X 2 Lines |
|---|---|---|---|
| LCD Type: | VATN, Transmissive, Negative | Backlight Color: | White, Blue, Red, Yellow, Green, Purple And Amber |
| Operating Voltage: | Option 5V, 3V | Optics: | All Viewing Angles 80/80/80/80 |
| Outline Dim.: | 116.0(L) X 37.0(W) X 11.8(T) Mm | Viewing Area: | 82.6.0(L) X 18.4(W) Mm |
| Driving Method: | 1/16 Duty Cycles, 1/5 Bias | Operating Temp: | -20°C To +70°C |
| Pin Number: | 16 Pins | Controller: | SPLC780D Or Equivalent |
| Interface: | MPU, 6800 Serial, I2C Optional | Compliance: | REACH & RoHS Compliant |
| Highlight: | Alphanumic Character LCD Display,6800 Character LCD Display,MPU 20x2 lcd display |
||
VATN Alphanumeric LCD Display 20x2 Characters 5V 3V Optional MPU 6800 Serial Interface SPLD780D
20x2 VATN Alphanumic LCD Display, Character LCD 20x2 Description
SF2002YB01VA is a 20 character by 2 line LCD display with a black background and red led backlight. This model VATN LCD is with outline dimension of 116 x 37 mm. We provide 6800, SPI and I2C interface to meet customer's different requirement.
The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it's very suitable for many applications such as digital meter, medical device & medical equipment, home appliances, audio, coffee machine, microwave oven, Automobile dashboard and car audio etc.
VATN LCD is featured with wide viewing angle and high contrast. Below are the key Advantages of VATN Display:
Super high contrast ratio: can be up to 120:1
Wide viewing angle: around 170(H) 110(V)
Mode: Negative mode only
Available Back light:white/green/yellow-green/red/blue
High backlight brightness
Four colors silk ink of custom design optional
Replacible for DFSTN and Black Mask
Color : Red LCD display, green LCD display, blue LCD display, yellow LCD display, white LCD display, amber LCD display
Display Format: LCD 8x2, LCD 16x1, LCD 16x2, LCD 20x2, LCD 20x4 etc.
SF2002YB01VA Pin Definition:
1 VSS, Power ground, ( 0V )
2 VDD, Power Supply For Logic (5V)
3 VO, Contrast adjust
4 RS, Data/Instruction Select
5 R/W, Read/Write Select
6 E, Enable Signal
7~14 Data bus
15 LED A, Power supply for LED backlight + (5V)
16 LED K, Power supply for LED backlight - (0V)
| Product: | VATN Alphanumeric 20x2 Character LCD | Characters / Columns: | 20 Characters X 2 Lines |
|---|---|---|---|
| LCD Type: | VATN, Transmissive, Negative | Backlight Color: | White, Blue, Red, Yellow, Green, Purple And Amber |
| Operating Voltage: | Option 5V, 3V | Optics: | All Viewing Angles 80/80/80/80 |
| Outline Dim.: | 116.0(L) X 37.0(W) X 11.8(T) Mm | Viewing Area: | 82.6.0(L) X 18.4(W) Mm |
| Driving Method: | 1/16 Duty Cycles, 1/5 Bias | Operating Temp: | -20°C To +70°C |
| Pin Number: | 16 Pins | Controller: | SPLC780D Or Equivalent |
| Interface: | MPU, 6800 Serial, I2C Optional | Compliance: | REACH & RoHS Compliant |
The features of VATN display LCD are in high contrast, wide viewing angle, high brightness. VA Display can replace Black Mask and DFSTN ( Double Film Conpensative STN ). It is suitable for Security control, White goods, Audio, Medical devices, POS, Dash board applications. VATN Display is an alternative for traditional lcd alphanumeric display. SAEF’s VATN display, alphanumeric LCD display module are available in 8x2 LCD,16x1 LCD,16x2 LCD,16x4 LCD,20x2 LCD,20x4 LCD with backlight options in white, blue, yellow, red, green, purple and amber color.
20x2 VATN Alphanumic LCD Display, Character LCD 20x2 Drawing

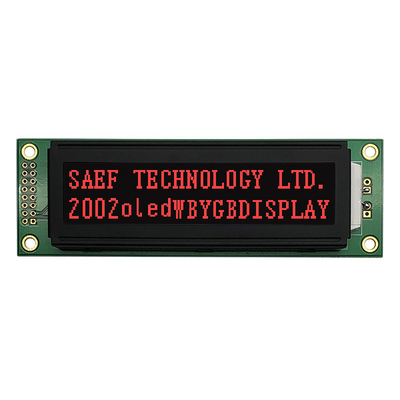

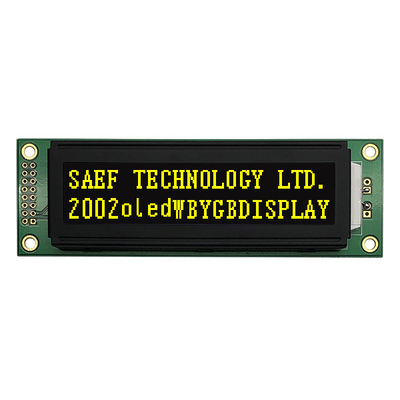

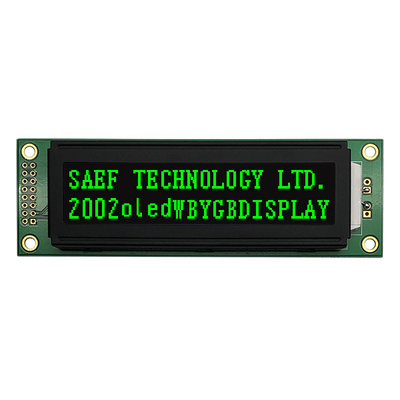

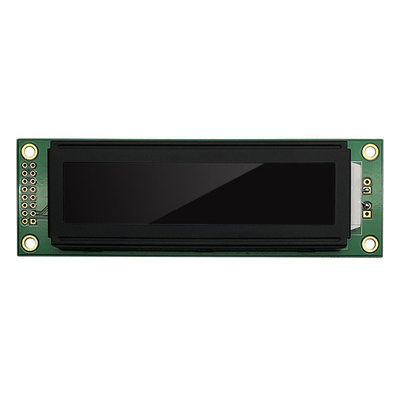

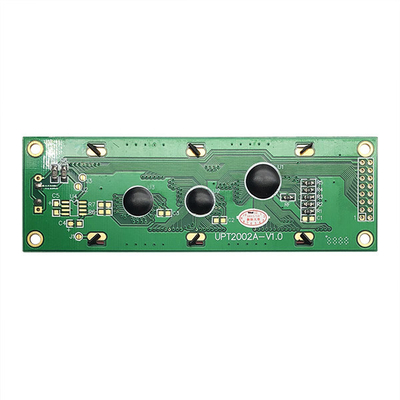

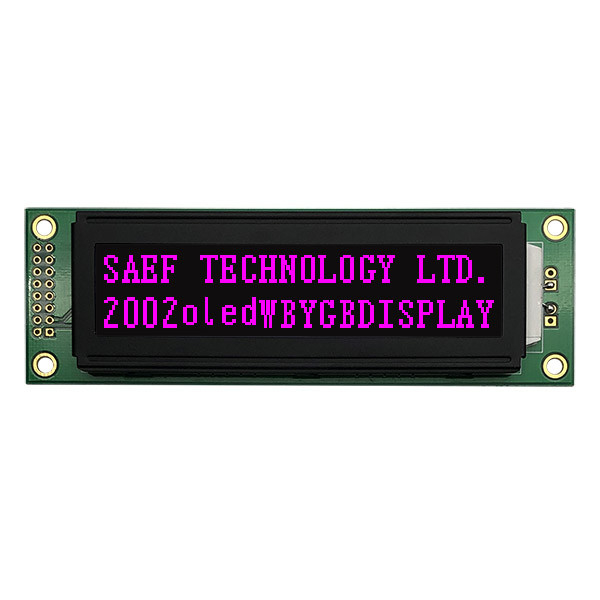

20x2 VATN Alphanumic LCD Display, Character LCD 20x2 Real Product Image
