Product Details:
|
| Product: | Graphic LCD 240x128 Display | Resolution: | 240x128 Dots |
|---|---|---|---|
| LCD Type: | FSTN, Positive, Transflective | Optics: | 6:00 O'clock |
| Outline Dim.: | 66.0(L) X 44.3(W) X 5.1(T) Mm | Viewing Area: | 61.0(L) X 33.8(W) Mm |
| Dot Pitch: | 0.21 X 0.21 Mm | Driving Method: | 1/128 Duty Cycle, 1/12 Bias |
| Operating Temp: | -20°C To +70°C | Pin Number: | 30 Pins ( Can Be Customized ) |
| Interface: | MCU ( Customizable ) | VDD: | 3V |
| Connector: | Plugging ( Customizable ) | Compliance: | REACH & RoHS Compliant |
| Highlight: | 240x128 Monochrome Graphic LCD Display,MCU Monochrome Graphic LCD Display,8Bits 240x128 Graphic LCD |
||
Graphic LCD Display 240x128 Dots Resolution FSTN Positive UC1638C 8 Bits MCU Interface With White LED Backlight 3V
240x128 Graphic LCD Module Description
SF-240128-004A is a monochrome 240x128 COG graphic LCD display module. Module size is 66.0 x 44.3 x 5.1 mm; viewing area is 61 x 33.8 mm. This series has built-in IC UC1638C, supporting 6800 interface (default); other available options for interface are 8080, 3-line/4-line SPI. Logic voltage of this LCD module ranges from 3V-3.6V; typical value is 3V. The module works within temperature from -20°C to+ 70°C. Storage temperature range is from -30°C to+ 80°C.
| Product: | Graphic LCD 240x128 Display | Resolution: | 240x128 Dots |
|---|---|---|---|
| LCD Type: | FSTN, Positive, Transflective | Optics: | 6:00 O'clock |
| Outline Dim.: | 66.0(L) X 44.3(W) X 5.1(T) mm | Viewing Area: | 61.0(L) X 33.8(W) mm |
| Dot Pitch: | 0.21 X 0.21 mm | Driving Method: | 1/128 Duty Cycle, 1/12 Bias |
| Operating Temp: | -20°C To +70°C | Pin Number: | 30 Pins ( Can Be Customized ) |
| Interface: | MCU ( Customizable ) | VDD: | 3V |
| Connector: | Plugging ( Customizable ) | Compliance: | REACH & RoHS Compliant |
SAEF Technology is a professional Character and Graphic LCD manufacturer. SAEF's graphic LCD displays (liquid crystal display) are available in dot matrix format of graphic resolution including 96x16, 122x32, 128x64, 128x128, 144x32, 160x128, 160x160, 160x32, 160x80, 192x64, 192x128, 240x64, 320x240 and etc. The sizes are including 2" LCD, 2.5" LCD, 3" LCD, 3.2" LCD, 4" LCD Display, and etc. SAEF Graphic LCD modules are including different options of polarizer in reflective, transmissive or transflective types. Our LED backlights are available in various colors including yellow/green, white, blue, red, amber and RGB.
We have an extensive range of LCD graphic displays with various backlight and LCD type combinations. SAEF's graphic LCD can be used on instrument and industry machinery equipment as well as electrical home appliances, consumer electronics including white goods, POS system, home applications, industrial instrument, automation, audio/visual display systems, and medical devices.
240x128 Graphic LCD Module Drawing
Pin Definition:
Pin1-Pin8, DB7~DB0
Pin9, RST
Pin10, CS0
Pin11, C0/A0
Pin12, WR0
Pin13, WR1
Pin14, BM1
Pin15, BM0
Pin16, ID
Pin17, POR-DIS
Pin18, VSS
Pin19, VDD
Pin20, TST4
Pin21, VLCD
Pin22, VA0-
Pin23, VA1-
Pin24, VA1+
Pin25, VA0+
Pin26, VB0-
Pin27, VB1-
Pin28, VB1+
Pin29, VB0+
Pin30, NC

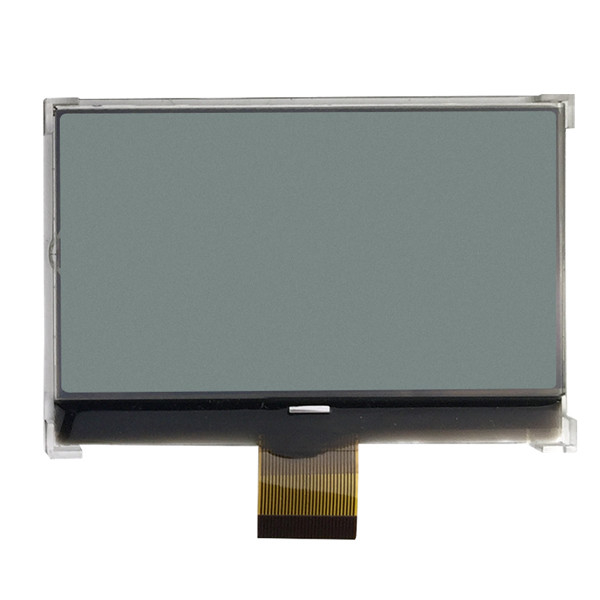

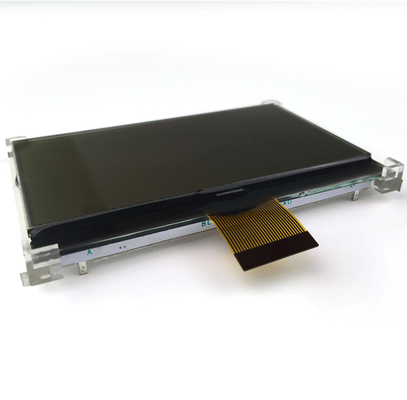

240x128 Graphic LCD Module Real Product Image
