Product Details:
|
| Product: | 2.8" Inch Graphic OLED Screen | Resolution: | 256x64 Pixels |
|---|---|---|---|
| Display Mode: | Passive Matrix | Interface: | 3/4 SPI, 6800 8080 Interface |
| Optics: | All Viewing Angles | Outline Dim.: | 97.0(L) X 32.5(W) X 6.4(T) Mm |
| Active Area: | 69.1(L) X 17..26(W) Mm | Pixel Pitch: | 0.27 X 0.27 Mm |
| Driving Method: | 1/64 Duty Cycle | Operating Temp: | -40°C To +85°C |
| Storage Temp.: | -45°C To +90°C | Driver IC: | COF SSD1322 |
| Supply Voltage: | 3V | Grey Scale: | 16 Grey Scale |
| Pin Number: | 7 Header Pins, 4 Pins Optional | Compliance: | REACH & RoHS Compliant |
| Highlight: | 256x64 OLED Display 6800,8080 256x64 OLED Display,SPI 2.8 Inch OLED Display |
||
OLED 2.8 inch 256x64 Display, Grey Scale OLED 2.8 inch Description
The Organic Light-Emitting Diode (OLED) is a new generation technology, brighter and clearer images with more agile responding speed. This OLED 2.8" inch model no. SFOM280YZ16-25664WB-01 OLED display is made of 256 x 64 dots individual mono color. This OLED module is lightweight, low power and small, there are different interfaces optional; it is default 3 and 4 lines SPI, available options 6800,8080 interface. The module is made of COB OLEDs have the advantages of easily fixed modules on customers’ applications because of having PCB board on it.
SFOM280YZ16-25664WB-01 is a dot matrix 256x64 COF graphic type passive matrix OLED display module. The size of the active area is 2.8” diagonal with module dimension 97 x 32.5 mm. This 2.8 inches OLED display has built-in IC SSD1322U, and boasts high contrast ratio 20,000 : 1. There are many interface options to choose from, including 6800, 8080 and SPI interface. Logic supply voltage ranges from 2.8V-3.3V, the typical value is 3V. The available emitting colors are yellow, sky blue and support grayscale. It is great for the application such as medical device, POS system, white goods, home applications, industrial instrument, automation, audio/visual display systems, personal care appliances, household goods, automobile displays, Dynamic information displays etc.
Features
| Product: | 2.8" Inch Graphic OLED Screen | Resolution: | 256x64 Pixels |
|---|---|---|---|
| Display Mode: | Passive Matrix | Interface: | 3/4 SPI, 6800 8080 Interface |
| Optics: | All Viewing Angles | Outline Dim.: | 97.0(L) X 32.5(W) X 6.4(T) mm |
| Active Area: | 69.1(L) X 17..26(W) mm | Pixel Pitch: | 0.27 X 0.27 Mm |
| Driving Method: | 1/64 Duty Cycle | Operating Temp: | -40°C To +85°C |
| Storage Temp.: | -45°C To +90°C | Driver IC: | COF SSD1322 |
| Supply Voltage: | 3V | Grey Scale: | 16 Grey Scale |
| Pin Number: | 7 Header Pins, 4 Pins Optional | Compliance: | REACH & RoHS Compliant |

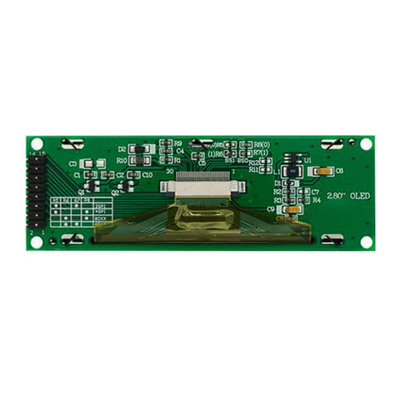

OLED 2.8 inch 256x64 Display, Grey Scale OLED 2.8 inch Drawing
Pin Definition
| Pin No. | Symbol |
| 1 | VSS |
| 2 | VCC_IN |
| 3 | NC |
| 4 | D0/CLK |
| 5 | D1/DIN |
| 6 | D2 |
| 7 | D3 |
| 8 | D4 |
| 9 | D5 |
| 10 | D6 |
| 11 | D7 |
| 12 | E/RD# |
| 13 | R/W# |
| 14 | D/C# |
| 15 | RES# |
| 16 | CS# |
Optics Characteristics
|
|
Symbol | Conditions | Min | Typ | Max |
Unit |
| Brightness | Lbr |
With Polarizer |
60 | 80 | - | cd/m2 |
| C.I.E. (White) | (x) (y) | Without Polarizer | 0.28 0.29 | 0.32 0.33 | 0.36 0.37 | |
| Dark Room Contrast | CR | - | >2000:1 | - | ||
| View Angle | >160 | - | - | degree- |

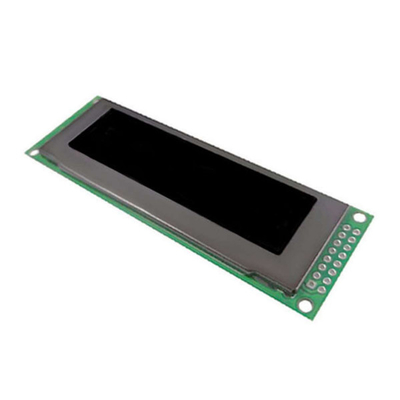

OLED 2.8 inch 256x64 Display, Grey Scale OLED 2.8 inch Product Image
