Product Details:
|
| Product: | 1.54" Inch Graphic OLED Screen | Resolution: | 128x64 Dots |
|---|---|---|---|
| Display Mode: | Passive Matrix | Interface: | 4 Wires SPI Interface |
| Optics: | All Viewing Angles | Outline Dim.: | 42.04(L) X 37.0(W) X 3.1(T) Mm |
| Active Area: | 35.052(L) X 17.516(W) Mm | Pixel Pitch: | 0.254 X 0.254 Mm |
| Driving Method: | 1/64 Duty Cycle | Operating Temp: | -40°C To +70°C ( Customizable ) |
| Storage Temp.: | -40°C To +85°C | Supply Voltage: | 2.8V |
| Pin Number: | 7 Header Pins | Compliance: | REACH & RoHS Compliant |
| Highlight: | OLED Display Module 128x64,1.54 Inch OLED Display Module,SPI 128x64 OLED Display |
||
1.54 Inch OLED Display Module 128x64 SPI IIC Interface OLED Screen Board 3.3-5V UART White And Blue Font
OLED 1.54" Graphic Display, 128x64 SPI OLED Description (SFOM154YZ7-12864WB-01 Specification.pdf)
The Organic Light-Emitting Diode (OLED) is a new generation technology, brighter and clearer images with more agile responding speed. This OLED 1.54" model no. SFOM154YZ7-12864WB-01 OLED display is made of 128 x 64 dots individual mono color. This OLED module is lightweight, low power and small, there are different interfaces optional; it is default 4 lines SPI, available options 6800,8080 I2C interface. The module is made of COB OLEDs have the advantages of easily fixed modules on customers’ applications because of having PCB board on it.
SFOM154YZ7-12864WB-01 is a crisp white monochrome 1.54 inch 128x64 Graphic OLED display module. this OLED module has a 50,000 hours lifetime. The SPD0301 ( compatible with SSD1309 ) controller is a popular controller, so in addition to our demo code, it's easy to find bring up examples across the web for using this display with a wide variety of microcontrollers including Raspberry Pi and ESP32.
| Product: | 1.54" Inch Graphic OLED Screen | Resolution: | 128x64 Dots |
|---|---|---|---|
| Display Mode: | Passive Matrix | Interface: | 4 Wires SPI Interface |
| Optics: | All Viewing Angles | Outline Dim.: | 42.04(L) X 37.0(W) X 3.1(T) mm |
| Active Area: | 35.052(L) X 17.516(W) mm | Pixel Pitch: | 0.254 X 0.254 mm |
| Driving Method: | 1/64 Duty Cycle | Operating Temp: | -40°C To +70°C ( Customizable ) |
| Storage Temp.: | -40°C To +85°C | Supply Voltage: | 2.8V |
| Pin Number: | 7 Header Pins, 4 Pins Optional | Compliance: | REACH & RoHS Compliant |
SAEF Technology's graphic OLED display are available in three mechanical structures include COB, COG and TAB passive matrix technology. Available graphic monochrome OLED resolution in 50x16 OLED graphic display, 64x128 OLED, 100x8 OLED graphic, 100x16 OLED, 100x32 graphic OLED, 200x16 graphic OLED, OLED 128x32, OLED display 128x64, OLED 128x128, and 256x64 OLED Display. The graphic OLED display in the SAEF product range have on-board controllers and interfaces include parallel, serial, and I2C OLED, SPI OLED. These OLED display modules have driven voltages of 3V, or 5V depending on resolution/color.
SAEF offers a wide range of OLED display modules in sizes from 0.49" to 5.5" OLED, such as 0.49" micro OLED Display, 0.66" mini OLED Display, 0.69" OLED, 0.91" OLED Display, 0.95" OLED, 0.96" OLED Display, 1.5" OLED Display, 2" OLED , 2.4" OLED , 2.7" OLED Display, 5.5" OLED Display, and custom design solutions.
SAEF small OLED display module are perfect for a number of devices that require electronic display panel. These applications include wearable devices, E-cigarette, POS system, white goods, home applications, industrial instrument, POS system, automation, audio/visual display systems, medical devices, personal care appliances, household goods, automobile displays , Dynamic information displays.
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.
OLED 1.54" Graphic Display, 128x64 SPI OLED Drawing

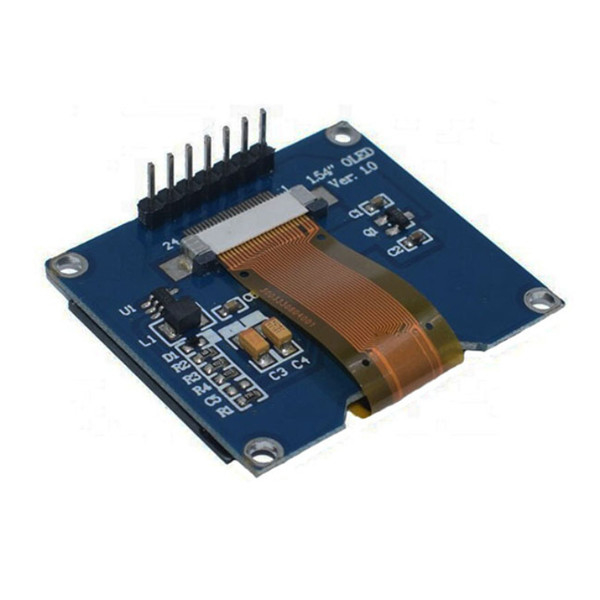

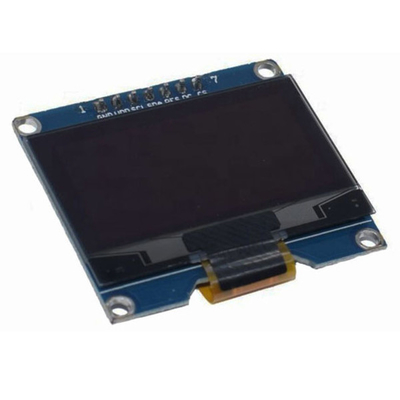

OLED 1.54" Graphic Display, 128x64 SPI OLED Real Product Image
