Product Details:
|
| Product: | 2.23 Inch Graphic OLED Screen | Resolution: | 128x32 Dot Resolution |
|---|---|---|---|
| Display Mode: | Passive Matrix | Optics: | All Viewing Angles |
| Outline Dim.: | 74.1.0(L) X 33.1(W) X 7.4(T) Mm | Active Area: | 55.02(L) X 13.1(W) Mm |
| Pixel Pitch: | 0.43 X 0.41 Mm | Driving Method: | 1/32 Duty Cycle |
| Operating Temp: | -40°C To +70°C ( Customizable ) | Pin Number: | 4 Pins And 9 Pins Optional |
| Interface: | SPI And IIC Interface Optional | Compliance: | REACH & RoHS Compliant |
| Highlight: | 128x32 OLED Graphic Display Module,2.23 Inch OLED Graphic Display Module,SPI 128x32 OLED Display |
||
SFOM223YZ49-12832WBYG-01Specification.pdf
OLED SPI 2.23", 128x32 SPI OLED Display Module Product Introduction
Organic light-emitting diodes (OLEDs) are a next-generation technology that enables brighter, clearer images and faster responses. This OLED 2.23-inch model SFOM223YZ49-12832WBGY-01 OLED display is made of 128 x 32 dots monochrome. This OLED module is lightweight, low power consumption, small size, and has different interface options, the default is SPI, and the available options are IIC and parallel ports. The module is made of COB OLED, which has the advantage of being easy to fix the module to the customer's application due to the PCB board on it.
The SFOM223YZ49-12832WBGY-01 OLED module originally did not have touch, but the touch panel is customizable. This product is widely used in medical analyzers, meters, sensor equipment, POS terminals, cash registers, handheld devices, mobile ordering machines, etc.
Features
1. This 2.23-inch mini OLED display has a resolution of 128X32 and a SSD1305 chipset.
2. This 2.23-inch OLED display module has ultra-low power consumption: full screen illumination 0.08w.
3. This 9 pin OLED display 2.23 inch has four mounting holes for easy installation,
4. This 2.23 inch 128x32 OLED product is designed for SPI type, IIC and paralle interface optional.
5. This 2.23-inch OLED 4pin product supports a variety of control chips: fully compatible with Arduino 51 series, msp430 series, stm32/2 CSR IC, etc.
6. The power supply voltage of this SPI 2.23 inch OLED product is DC 3V-5V.
7. This 2.23 inch OLED display module is embedded driver IC. it can communicate with 2C/IIC Interface only need 2 I/O ports
8. This OLED 2.23 inch 128x32 product is compatible with MMDVM, Pi-Star, and it is compatible with Raspberry pi.
9. This 128x32 SPI OLED 2.23 inch product is self-luminous design, it needn't backlight, the display can self-luminous; It has high contrast, bright and crisp dots, even tiny fonts quite readable.
10. the OLED display module 2.23 inch is no embedded fonts inside the OLED controller, user can create the fonts through the font generation software.
| Product: | 2.23 Inch Graphic OLED Screen |
| Resolution: | 128x32 Dot Resolution |
| Interface: | SPI And IIC Interface Optional |
| Pin Number: | 4 Pins And 9 Pins Optional |
| Optics: | All Viewing Angles |
| Display Mode: | Passive Matrix |
| Outline Dim.: | 74.1.0(L) X 33.1(W) X 7.4(T) (mm) |
| Active Area: | 55.02(L) X 13.1(W) (mm) |
| Driving Method: | 1/32 Duty Cycle |
| Pixel Pitch: | 0.43 X 0.41 (mm) |
| Operating Temp: | -40°C To +70°C ( Customizable ) |
| Compliance: | REACH & RoHS Compliant |
OLED SPI 2.23", 128x32 SPI OLED Display Module Product Drawing

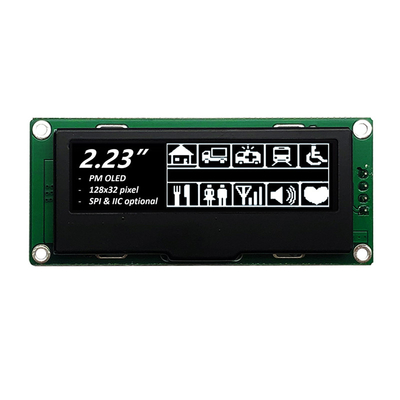

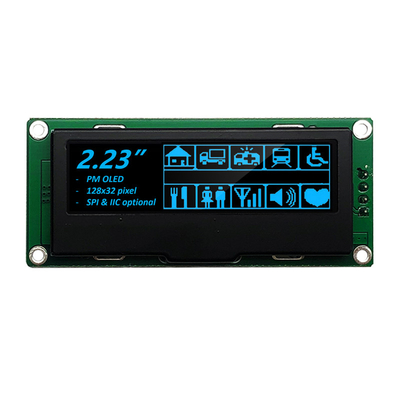

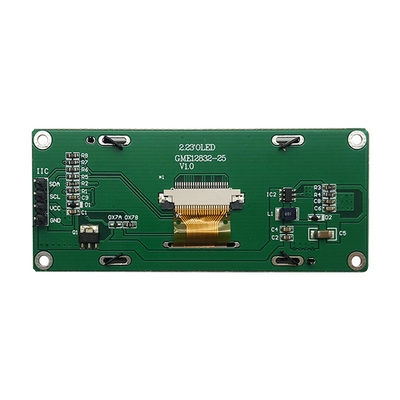

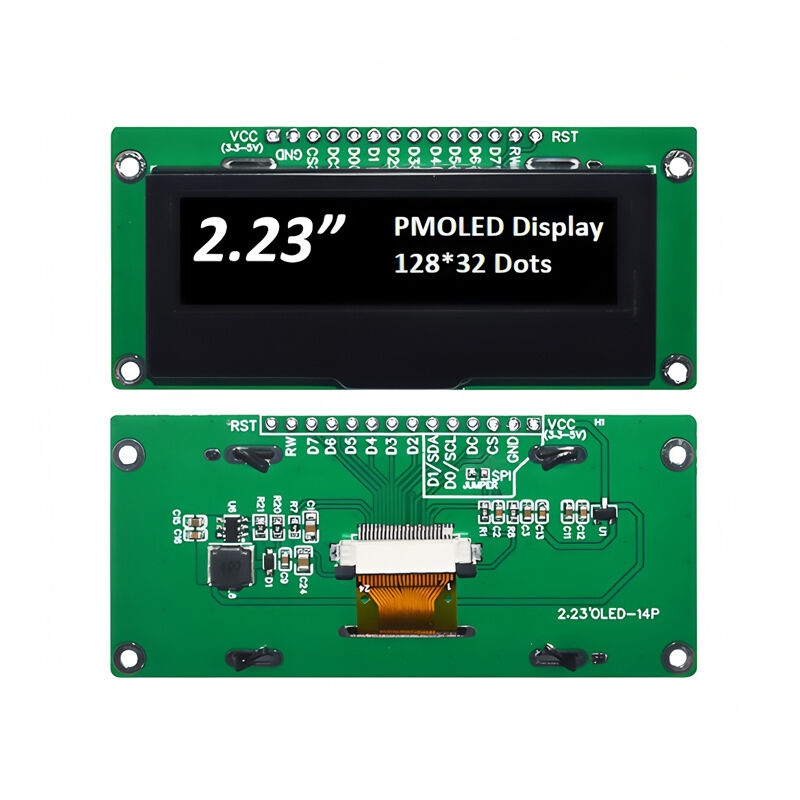

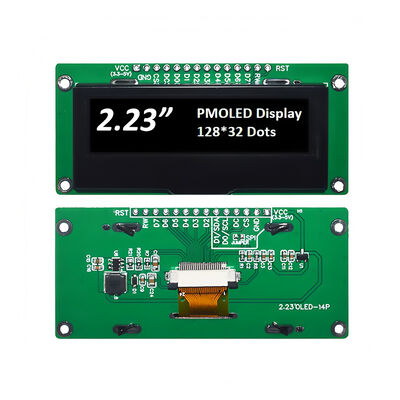

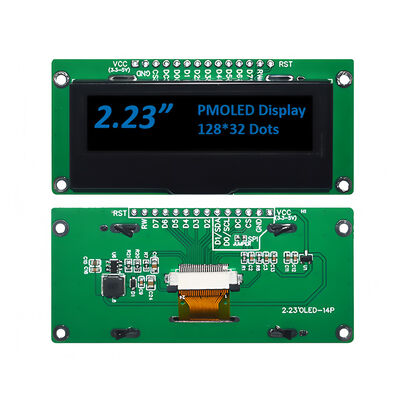

OLED SPI 2.23", 128x32 SPI OLED Display Module Product Image
