Product Details:
|
| Product: | 0.96 Inch OLED 4 Pins I2C | Resolution: | 96x16 Pixels |
|---|---|---|---|
| Structure: | COG + PCB | Interface: | I2C Interface |
| Driver IC: | SSD1306 Or Equivalent | Touch Screen: | Customizable |
| Viewing Direction: | All Viewing Angles | Outline Dim.: | 32.54 × 10 × 2.4 Mm |
| Connection: | Metal Pins | Pin Number: | 4 Pins |
| Operating Temp.: | -40℃ To +80℃ | Storage Temp.: | -40℃ To +85℃ |
| Lifetime: | 50,000 Hours @ 60cd/m2 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 4Pins OLED Display Module,96x16 OLED Display Module,0.69 Inch 96x16 OLED Display |
||
SFOM069YZ4-9616WB-01 Specification.pdf
0.69" 96x16 OLED, 4 pin IIC 0.69 inch OLED Module Display Description
SFOM069YZ4-9616WB-01 is a graphic COG with PCB OLED module, which is made of resolution 96x16 pixels, diagonal size 0.69 inch. SFOM069YZ4-9616WB-01 is built in with SSD1306 IC; it supports I2C interface, 1/16 driving duty. It is having PCB outline size 32.54 × 10 mm with mounting holes on board and 4x1 metal pins on module. It features:
1. IIC serial communication interface, simple wiring, only 2 signal lines, connected with the power supply with 4PIN line, easy to use;
2. White color, Viewing angle: greater than 160 degrees, Compatible for arduino, 51 series,ESP, STIM32 / 2, SCR chips.
3. Low power consumption: 0.05W during normal operation, Support voltage: 3.3V DC, Working temperature: -40C-80C degrees.
Pin Definition
Pin 1, GND, Gound of logic circuit. This is a ground pin. It must be connected to ground.
Pin 2, VCC, Power supply for OLED, This is a voltage supply pin. It must be connected to source.
Pin 3, SCL, The serial clock input SCL
Pin 4, SDA,The serial data input SD
Product Information
| Product: | 0.96 Inch OLED 4 Pins I2C | Resolution: | 96x16 Pixels |
|---|---|---|---|
| Structure: | COG + PCB | Interface: | I2C Interface |
| Driver IC: | SSD1306 Or Equivalent | Touch Screen: | Customizable |
| Viewing Direction: | All Viewing Angles | Outline Dim.: | 32.54 × 10 × 2.4 Mm |
| Connection: | Metal Pins | Pin Number: | 4 Pins |
| Operating Temp.: | -40℃ To +80℃ | Storage Temp.: | -40℃ To +85℃ |
| Lifetime: | 50,000 Hours @ 60cd/m2 | Compliance: | REACH & RoHS Compliant |
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
0.69" 96x16 OLED, 4 pin IIC 0.69 inch OLED Module Product Drawing

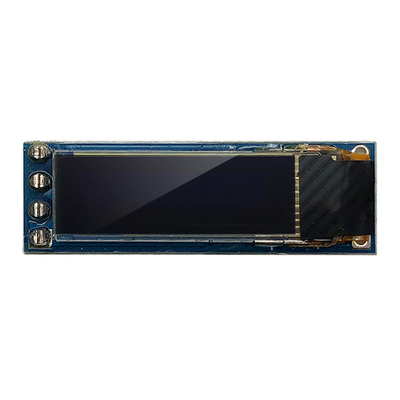

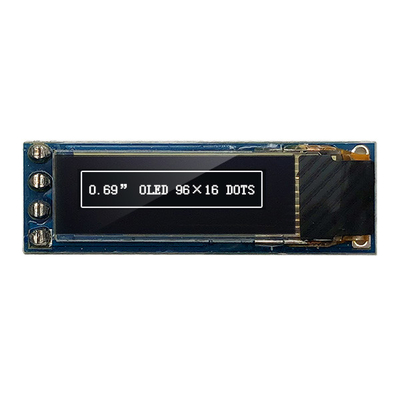

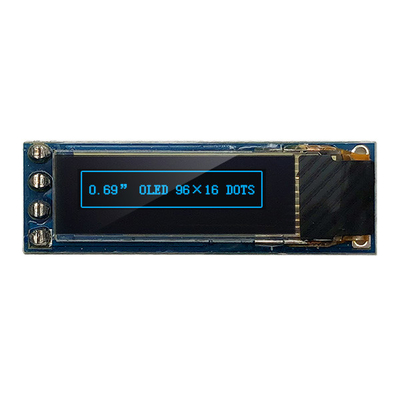

0.69" 96x16 OLED, 4 pin IIC 0.69 inch OLED Module Product Image
