Product Details:
|
| Product: | 1.3 Inch PMOLED 4 Pins SPI & I2C | Resolution: | 128x64 Dots |
|---|---|---|---|
| Structure: | COG + PCB | Interface: | SPI, I2C Optional |
| Touch Screen: | Customizable | Viewing Direction: | All Viewing Angles |
| Outline Dim.: | 35.5 × 33.7 × 2.6 Mm | Connection: | Header Pins |
| Pin Number: | 4 Pins ( 7 Pins Optional ) | Operating Temp.: | -40℃ To +85℃ |
| Lifetime: | 50,000 Hours @ 60cd/m2 | Compliance: | REACH & RoHS Compliant |
| Highlight: | PCB 1.3 Inch I2C OLED Display,1.3 Inch I2C OLED Display 4 Pins,COG 1.3 inch OLED display |
||
SFOM130JY4-12864WB-01Specification.pdf
Passive Matrix OLED 1.3" Inch COG+PCB 4 Pins 128x64 SPI I2C Optional SH1106 Driver IC 3V
4 Pin OLED Display (COG+PCB) , 1.3" inch OLED Description
SFOM130YZ4-12864WB-01 is a graphic COG with PCB OLED module, which is made of resolution 128x64 pixels, diagonal size 1.3 inch. SFOM130YZ4-12864WB-01 is built in with SH1106 IC; it supports I2C and SPI interface, 1/64 driving duty. It is having PCB outline size 35.5 × 33.7 mm with mounting holes on board and 4x1 metal pins on module.
The supply voltage for logic of SFOM130YZ4-12864WB-01 is 3V/ 5V, supply voltage for display is 7.5V (Internal Boots), display with 50% check board current is 25mA@3.3VDD (typical value). This OLED module can be operating at temperatures from -40℃ to +85℃.
| Product: | 1.3 Inch PMOLED 4 Pins | Resolution: | 128x64 Dots |
|---|---|---|---|
| Structure: | COG + PCB | Interface: | SPI, I2C Optional |
| Touch Screen: | Customizable | Viewing Direction: | All Viewing Angles |
| Outline Dim.: | 35.5 × 33.7 × 2.6 mm | Connection: | Header Pins |
| Pin Number: | 4 Pins ( 7 Pins Optional ) | Operating Temp.: | -40℃ To +85℃ |
| Lifetime: | 50,000 Hours @ 60cd/m2 | Compliance: | REACH & RoHS Compliant |
Why Choose us
1．We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2．Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3．Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4．Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
4 Pin OLED Display (COG+PCB) , 1.3" inch OLED Drawing

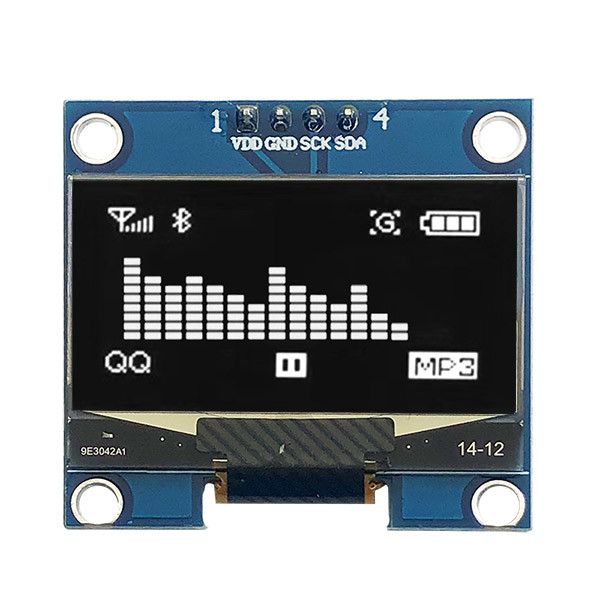

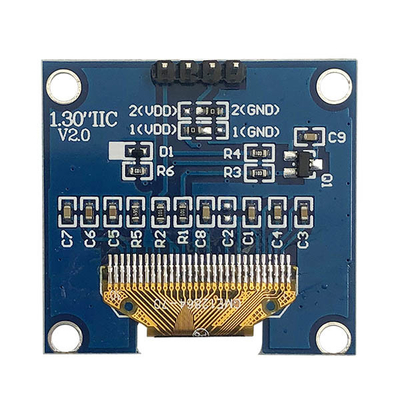

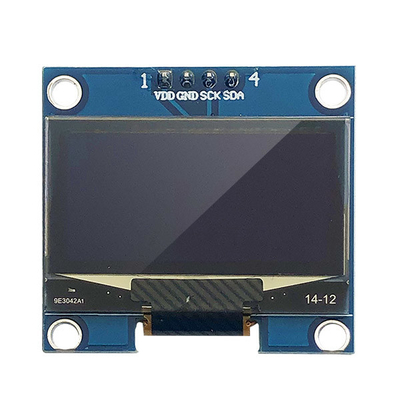

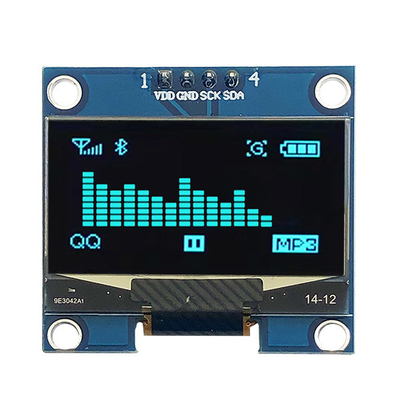

4 Pin OLED Display (COG+PCB) , 1.3" inch OLED Real Product Image
