0.96 Inch OLED Module 12864 COG PCB 4 Pins SPI I2C For Medical Device

SFOM096YZ4-12864WB-02 Specification.pdf

PMOLED 0.96" Inch COG+PCB 4 Pins SPI I2C Optional SSD1315 For Medical Device Front Screen

0.96" 12864 OLED SPI, OLED Display Module 12864 I2C Product Introduction

SFOM096YZ4-12864WB-02 is a graphic COG, OLED module with PCB, resolution of 128x64 pixels, diagonal size of 0.96 inches. SFOM096YZ4-12864WB-02 Built-in SSD1315 IC; It supports I2C and SPI interfaces, and has a 1/64 drive duty cycle. It has a PCB form factor of 24.7 × 27 mm with mounting holes on the board and 4x1 metal pins on the module.

The SFOM096YZ4-12864WB-02 has a logic supply voltage of 3V/5V, a display supply voltage of 7.5V (internal start), and a display 50% check board current of 25mA@3.3VDD (typical). The OLED module can operate in temperatures from -40°C to +85°C.

Features

This 0.96-inch OLED displays a 128 x 64 pixel resolution.

This OLED 0.96 inches has an ultra-wide viewing angle – more than 160 degrees.

This 0.96-inch I2C OLED display supports voltage: 3.3V-5V DC.

This 0.96-inch OLED screen is a low-power product, with only 0.04W in normal operation and 0.08W on the full screen.
This 0.96-inch OLED module displays graphic and text information directly on your microcontroller project; It supports a wide range of chips: compatible with Arduino Mega, Raspberry pi, 51 MCU, STIM 32, and more.
This 0.96-inch OLED display module is an embedded driver IC. Only 2 I/O ports are needed to communicate with the 2C/IIC interface

This OLED 0.96-inch 128x64 product is compatible with MMDVM, Pi-Star, and Raspberry Pi.
This 12864 IIC OLED 0.96 inch product has a self-illuminating design, no backlight is required, and the display is self-illuminating; It has high-contrast, bright and clear dots that are very readable even in tiny fonts.
The OLED screen 0.96-inch controller has no embedded fonts inside, and users can create fonts through font generation software.

0.96" 12864 OLED SPI, OLED Display Module 12864 I2C Drawing

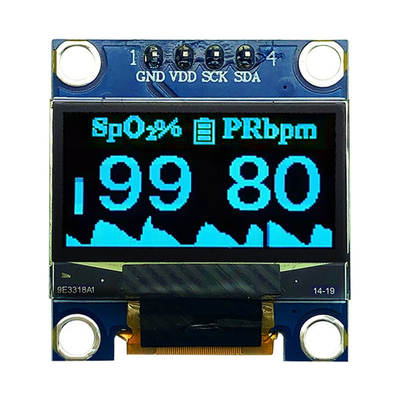

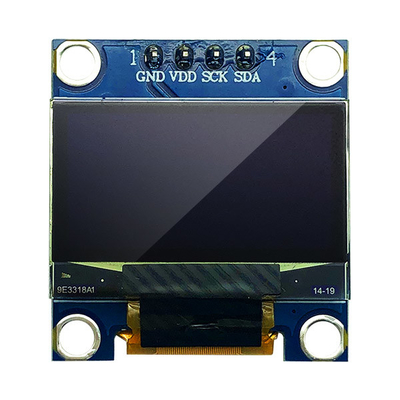

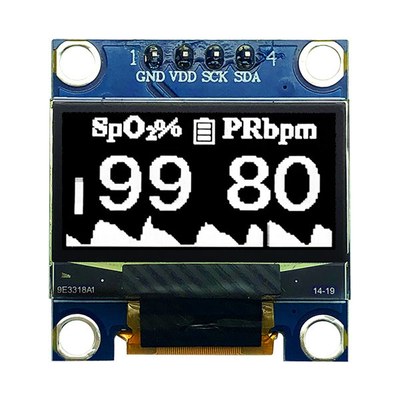

0.96" 12864 OLED SPI, OLED Display Module 12864 I2C Product Image
