0.96 Inch OLED Display Module 128x64, OEL Graphic Display 0.96 inch

OLED 0.96 Inch 128x64 SSD1306 Monochrome Graphic Display 6800 8080 4-SPI I2C Interface White And Blue OLED Module

0.96 inch Thin OLED Display, OLED I2C Display Description

SF-OS096HX-12864W-01 is a 128x64 resolution COG graphic OLED display module, diagonal size 0.96 inch. The model is designed as consumer grade which is having the advantage of competitive price. The module is built-in with SSD1306 IC; it supports 6800, 8080, I2C and 4-wire SPI serial interface. The supply voltage for logic is 3V, supply voltage for display is 7.5V, display with 50% check board current is 6mA @ 7.5Vcc (typical value), driving duty 1/64.

SF-OS096HX-12864W-01 this 0.96 inch COG Graphic OLED module is suitable for wearable device, smart home applications and etc. This module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.



SAEF Technology is a professional OLED Module Supplier. We provide a wide range of standard passive matrix OLED (PMOLED) / OLED dot matrix display and custom design Character OLED modules, Graphic OLED displays and OLED display panels. Mechanical structure includes Chip on Board (COB), Chip on Glass (COG), and TAB (Tape Automated Bonded) types. Customers can upgrade applications from STN LCD to OLED displays easily. SAEF OLED modules are featured with all the important advantages:

• Faster response time “At +25 ℃ 10 μsec.”
• Unlimited viewing angle “Up to 175 degree”
• Thin – No need of backlight, self emitting
• High Brightness
• High contrast ratio “Up to 10,000:1”
• Wide Operation Temperature “-40 ℃ ~ 80 ℃”
• Lower power consumption

0.96 inch Thin OLED Display, OLED I2C Display Drawing

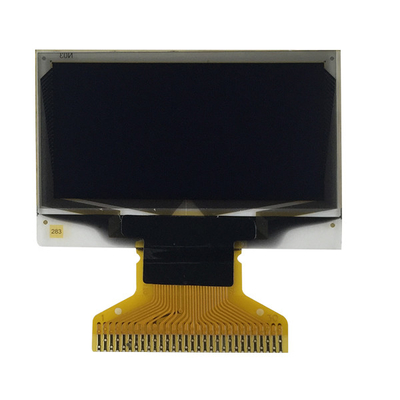

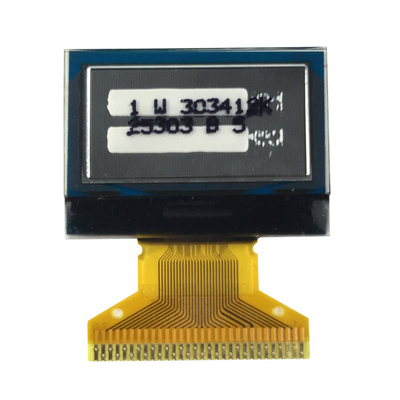

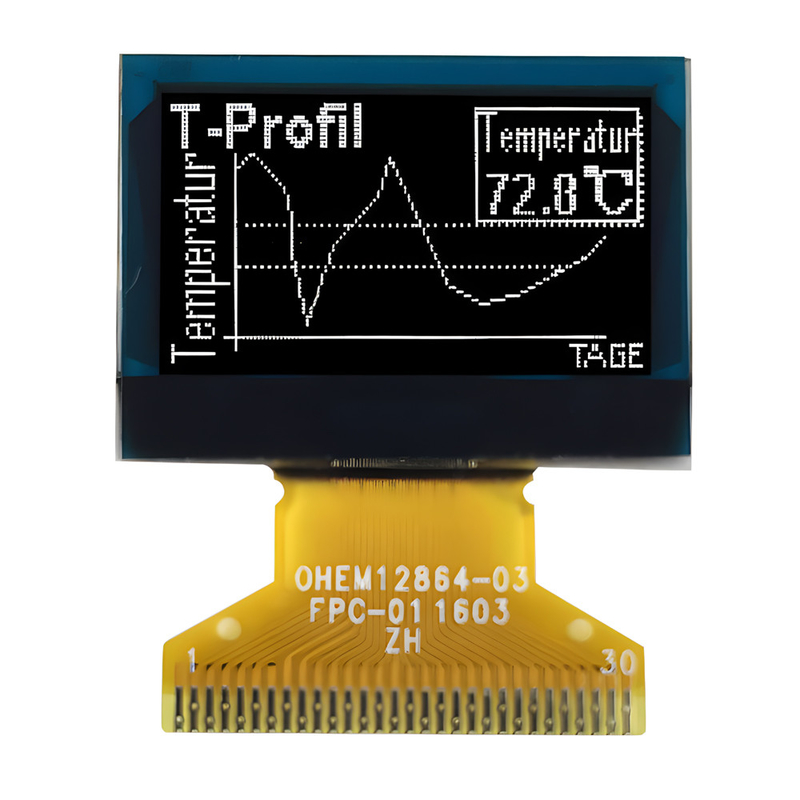

0.96 inch Thin OLED Display, OLED I2C Display Product Image
