Product Details:
|
| Product: | 0.91 Inch OLED Display | Resolution: | 128x32 |
|---|---|---|---|
| Optics: | All Viewing Angles | Color: | White, Optional Blue Color |
| Module Size: | 30 X 11.5 X 1.2 Mm | Viewing Area: | 22.384(L) * 5.584(W) |
| Controller: | SSD1306 Or Equivalent | FPC Length: | 10.5 Mm ( Customizable ) |
| Pin Number: | 14 Pins ( Customizable ) | Connection Type: | Soldering ( Customizable ) |
| Interfaces: | I2C | Operating Temp: | -40°C To +85°C |
| Life Time: | 50,000 Hours @ 60cd/m2 | Compliance: | REACH & RoHS Compliant |
| Highlight: | 128x32 OLED Display,128x32 OLED Display,Monochrome 0.91 inch oled display |
||
Monochrome OLED Dispaly 0.91 Inch 128x32 Graphics Module SSD1302 I2C Interface 14 Pin
OLED 128x32, 0.91" inch OLED Display DESCRIPTION
SF-OS091YZ-12832WB-01 The 0.91 inch is one of the most popular sizes of COG OLED for wearable displays. SAEF Graphic COG 128x32 OLED display items no. SF-OS091YZ-12832WB-01 is also built-in SSD1306 driver IC; it communicates via IIC interface only. This controller's built-in voltage generation only need a single 3V power supply is needed.SF-OS091YZ-12832WB-01 OLED module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.
These COG 0.91 inch OLED resolution 128x32 modules are ultra thin, lightweight and low power consumption which is great for handheld instruments, meters, smart grid, wearable device, E-cigarette, MP3, IoT, etc. One of the significant advantages of COG structure is the FPC usually is bendable comparing to TAB OLED since the FPC is flexible and there is no chip on the FPC. Therefore, the customers have less limitation to design the displays on their applications.
| Product: | 0.91 Inch OLED Display | Resolution: | 128x32 |
|---|---|---|---|
| Optics: | All Viewing Angles | Color: | White, Optional Blue Color |
| Module Size: | 30 X 11.5 X 1.2 mm | Viewing Area: | 22.384(L) * 5.584(W) |
| Controller: | SSD1306 Or Equivalent | FPC Length: | 10.5 Mm ( Customizable ) |
| Pin Number: | 14 Pins ( Customizable ) | Connection Type: | Soldering ( Customizable ) |
| Interfaces: | I2C | Operating Temp: | -40°C To +85°C |
| Life Time: | 50,000 Hours @ 60cd/m2 | Compliance: | REACH & RoHS Compliant |
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Quality Management
1. Quality policy
Provide sound quality and deliver goods on time;
To satisfy requirements of customers with continuous improvement
2. EHS policy
To observe laws and regulations and to prevent and control pollution;
To try to reduce emission and conserve and make full use of resources;
To improve environmental protection awareness and continuously improve the environment;
3. Measures adopted
It will make transparent its quality policy and improve employees’ awareness on quality via training and education;
By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;
It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;
Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency.
OLED 128x32, 0.91" inch OLED Display Drawing

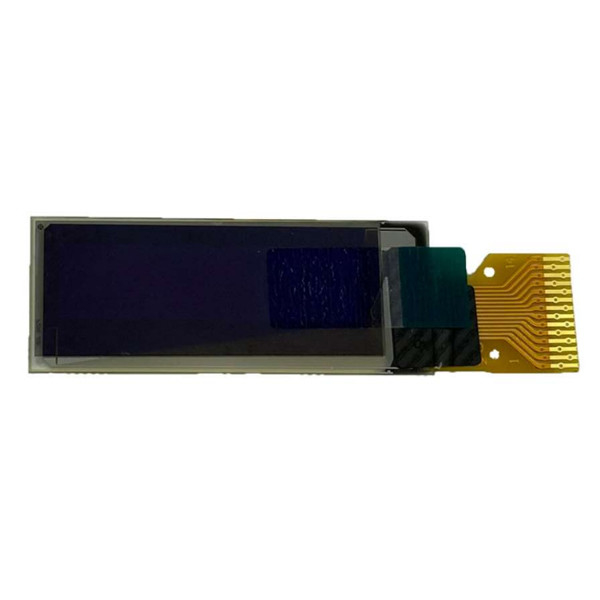

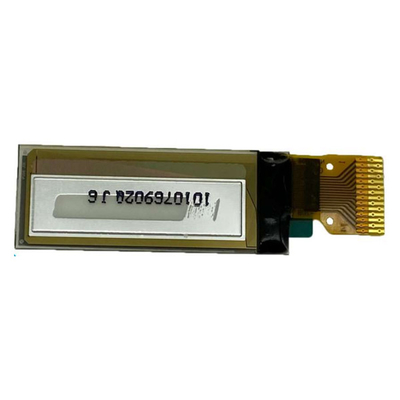

OLED 128x32, 0.91" inch OLED Display Product Image
