Product Details:
|
| Product: | 1.44 Inch TFT Display Screen | Touch Screen: | Resistive Touch Panel (optional) |
|---|---|---|---|
| Resolution: | 128x128 | Cover Glass Dimension: | Customizable |
| Viewing Direction: | 12:00 | Interface: | MPU 8 Bits |
| Pin Number: | 24 Pins | Connection: | Plugging |
| Surface Luminance: | 200 Cd/m2 (nits) | LED Lifetime: | 40,000 Hours |
| Driver IC: | ST7735 | Compliance: | REACH & RoHS Compliant |
| Highlight: | Square LCD Display 8Bit,Square LCD Display ISO9001,128x128 tft display screen |
||
SF-TC144H-8163A-T SPECIFICATION 2016-12-07.pdf
1.44 inch screen TFT lcd display 1.5" square screen 128x128 mpu 8 bit plugging type
1.44 inch ( 1.5" inch) TFT LCD display screen Description
SF-TC144H-8163A-T is a 1.44 inch square mode with Resistive Touch Screen (RTP) TFT LCD module, it supports MPU 8bits interface displaying 128x128 pixels resolution. This TFT LCD module is built-in with ST7735 driver IC( compitable with ILI9163C IC). its supply voltage for analog (Vcc) range from 2.6V to 3.3V, typical value 2.8V. This module is having anti-glare surface panel, view direction 12 o'clock, gray scale inversion 6 o'clock.
SF-TC144H-8163A-T module is a square type TFT-LCD featured with brightness 150 nits (typical value). The module also is available for without touch screen option whose part no. SF-TC144H-8163A-N. The working temperatures is from -20°C to +70°C; its storage temperatures range from -30°C to +80°C.
| Product: | 1.44 Inch TFT Display Screen | Touch Screen: | Resistive Touch Panel (optional) |
|---|---|---|---|
| Resolution: | 128x128 | Cover Glass Dimension: | Customizable |
| Viewing Direction: | 12:00 | Interface: | MPU 8 Bit, (customizable) |
| Pin Number: | 24 Pins (customizable) | Connection: | Plugging (customizable) |
| Surface Luminance: | 150 Cd/m2 (nits) (customizable) | LED Lifetime: | 40,000 Hours |
| Driver IC: | ST7735 | Compliance: | REACH & RoHS Compliant |
.44 inch ( 1.5" inch) TFT LCD display screen Drawing

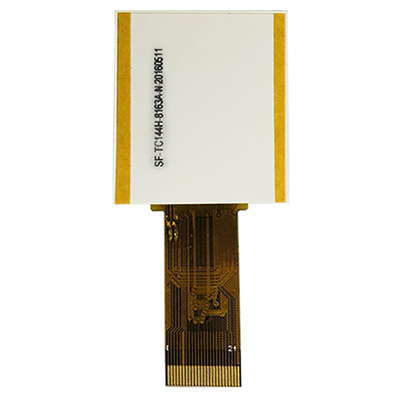

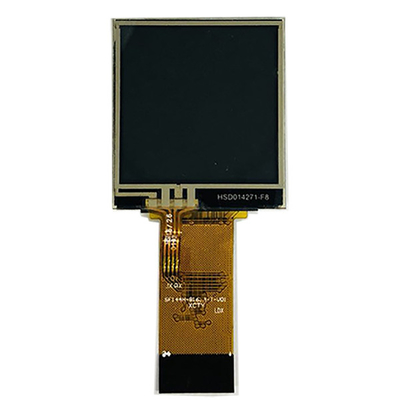

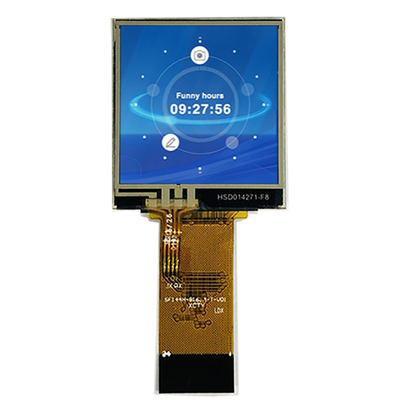

1.44 inch ( 1.5" inch) TFT LCD display screen REAL PRODUCT DEMOSTRATION
| Dimension: | Customizable | ||
|---|---|---|---|
| Viewing Direction: | 12:00 | Interface: | MPU 8 Bit, (customizable) |
| Pin Number: | 24 Pins (customizable) | Connection: | Plugging (customizable) |
| Surface Luminance: | 150 Cd/m2 (nits) (customizable) | LED Lifetime: | 40,000 Hours |
| Driver IC: | ST7735 | Compliance: | REACH & RoHS Compliant |
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
